Fujitsu Scan Snap S1300i User Manual

Replacing the Pad Assy
454
Replacing the Pad Assy

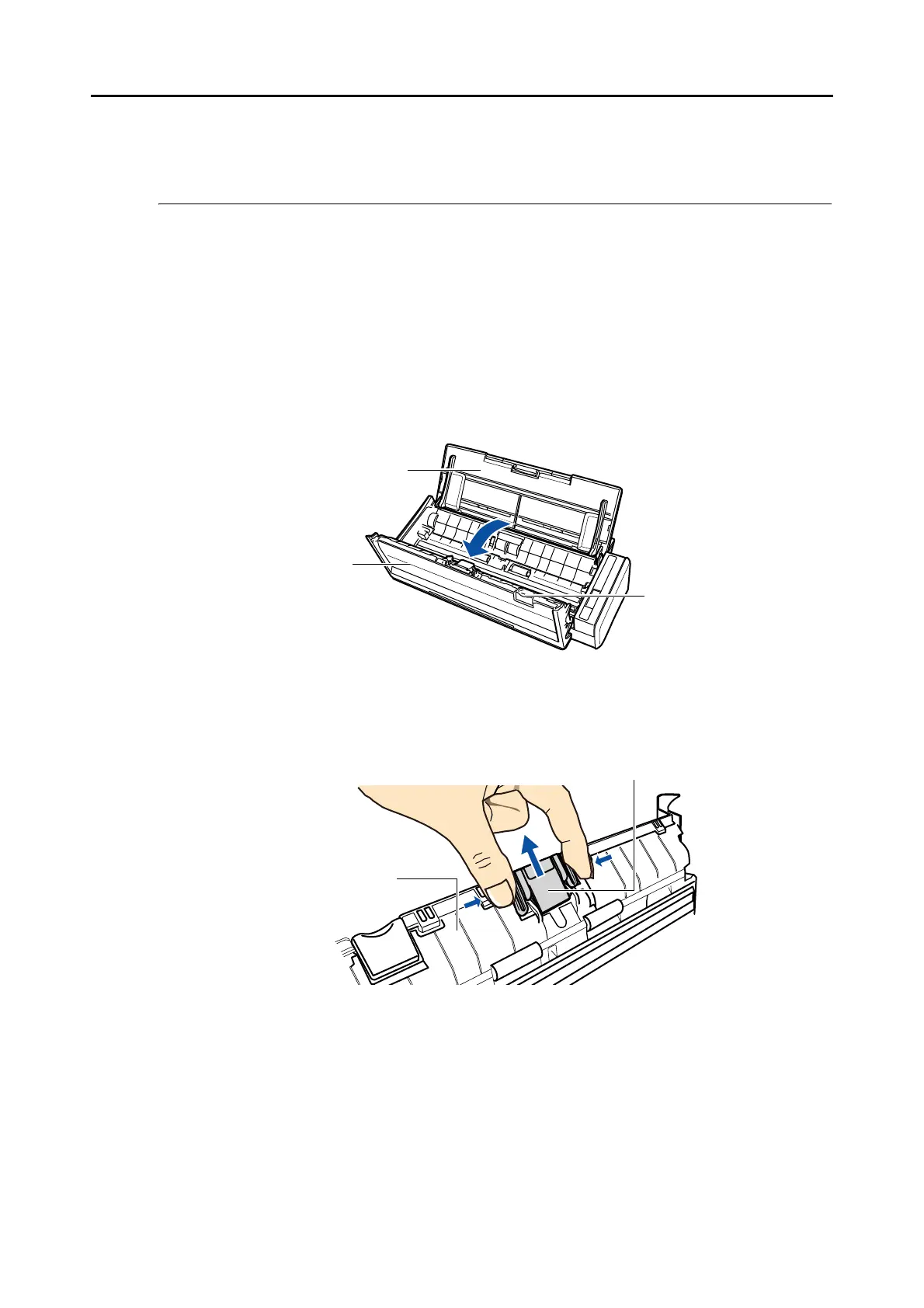

Replace the pad assy in the following procedure.
1. Unplug the cables from the ScanSnap.
2. Remove all documents from the ADF paper chute (cover).
3. Pull the ADF release tab to open the ADF top section.
4. Remove the pad assy.
Squeeze both ends of the pad assy and pull it out in the direction of the arrow.
ADF release tab
ADF top section
ADF paper chute (cover)
ADF top section
Pad assy

Fujitsu Scan Snap S1300i Specifications

General

Optical Resolution	600 dpi
ADF Capacity	10 sheets
Interface	USB 2.0
Color Depth	24-bit
Duplex Scanning	Yes
Scanning Method	CIS (Contact Image Sensor)
Scanner Type	Sheetfed
Max Document Size	A4
Scan Speed	12 ppm (simplex), 24 ipm (duplex)
Dimensions	284 x 99 x 77 mm
Weight	1.4 kg
Supported Operating Systems	Windows, macOS
Power Source	USB Bus Power
