Fujitsu Scan Snap S1300i User Manual

Replacing the Pad Assy
456

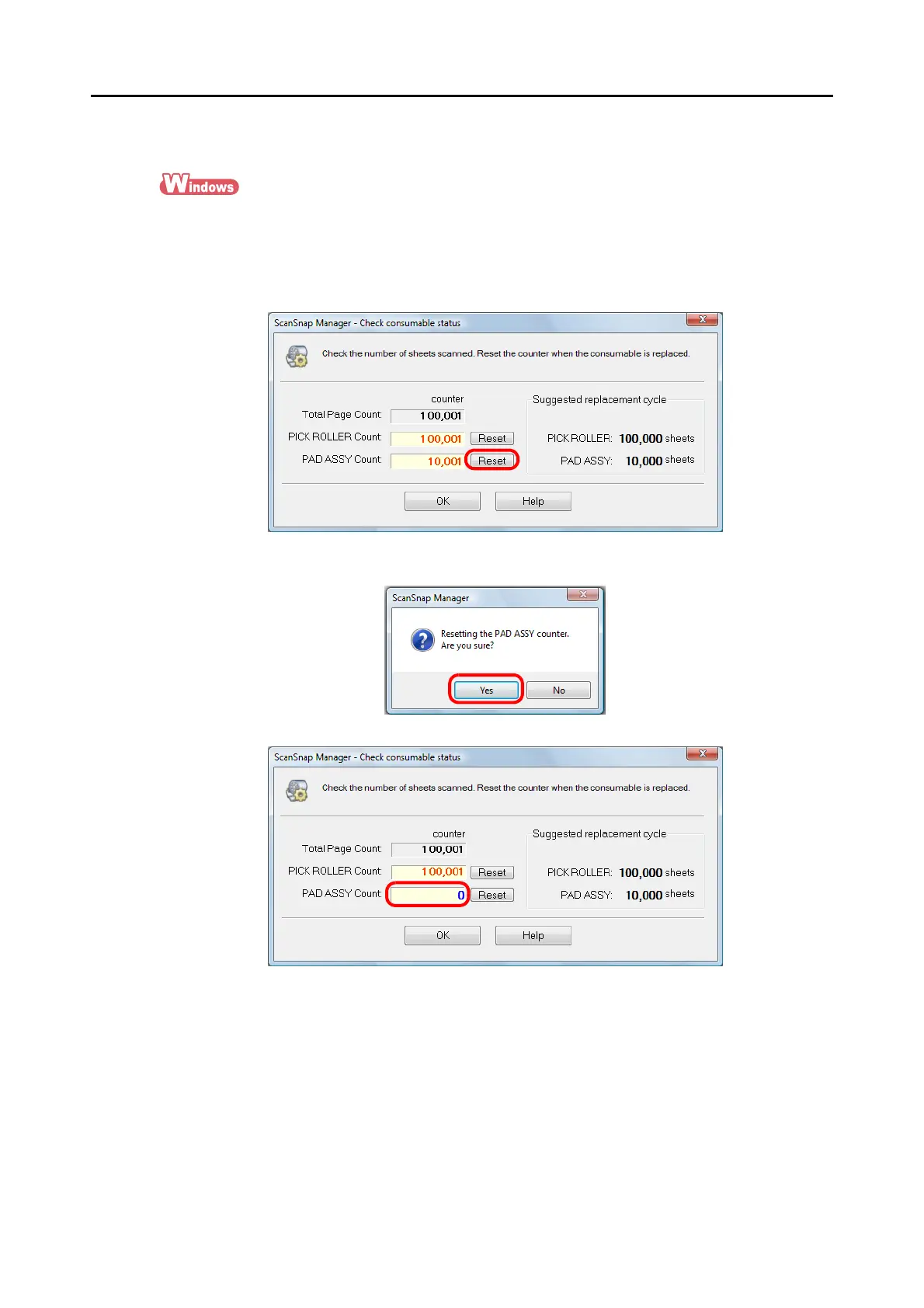

9. Reset the consumable counter.
1. Select [Check consumable status] from the Right-Click Menu.
For details about the Right-Click Menu, refer to "Right-Click Menu" (page 71).
DThe [ScanSnap Manager - Check consumable status] dialog box appears.
2. Click the [Reset] button for [PAD ASSY Count].
DA confirmation message appears.
3. Click the [Yes] button.
DThe [PAD ASSY Count] is reset to 0.

Fujitsu Scan Snap S1300i Specifications

General

Optical Resolution	600 dpi
ADF Capacity	10 sheets
Interface	USB 2.0
Color Depth	24-bit
Duplex Scanning	Yes
Scanning Method	CIS (Contact Image Sensor)
Scanner Type	Sheetfed
Max Document Size	A4
Scan Speed	12 ppm (simplex), 24 ipm (duplex)
Dimensions	284 x 99 x 77 mm
Weight	1.4 kg
Supported Operating Systems	Windows, macOS
Power Source	USB Bus Power
