Replacing the Pick Roller
460

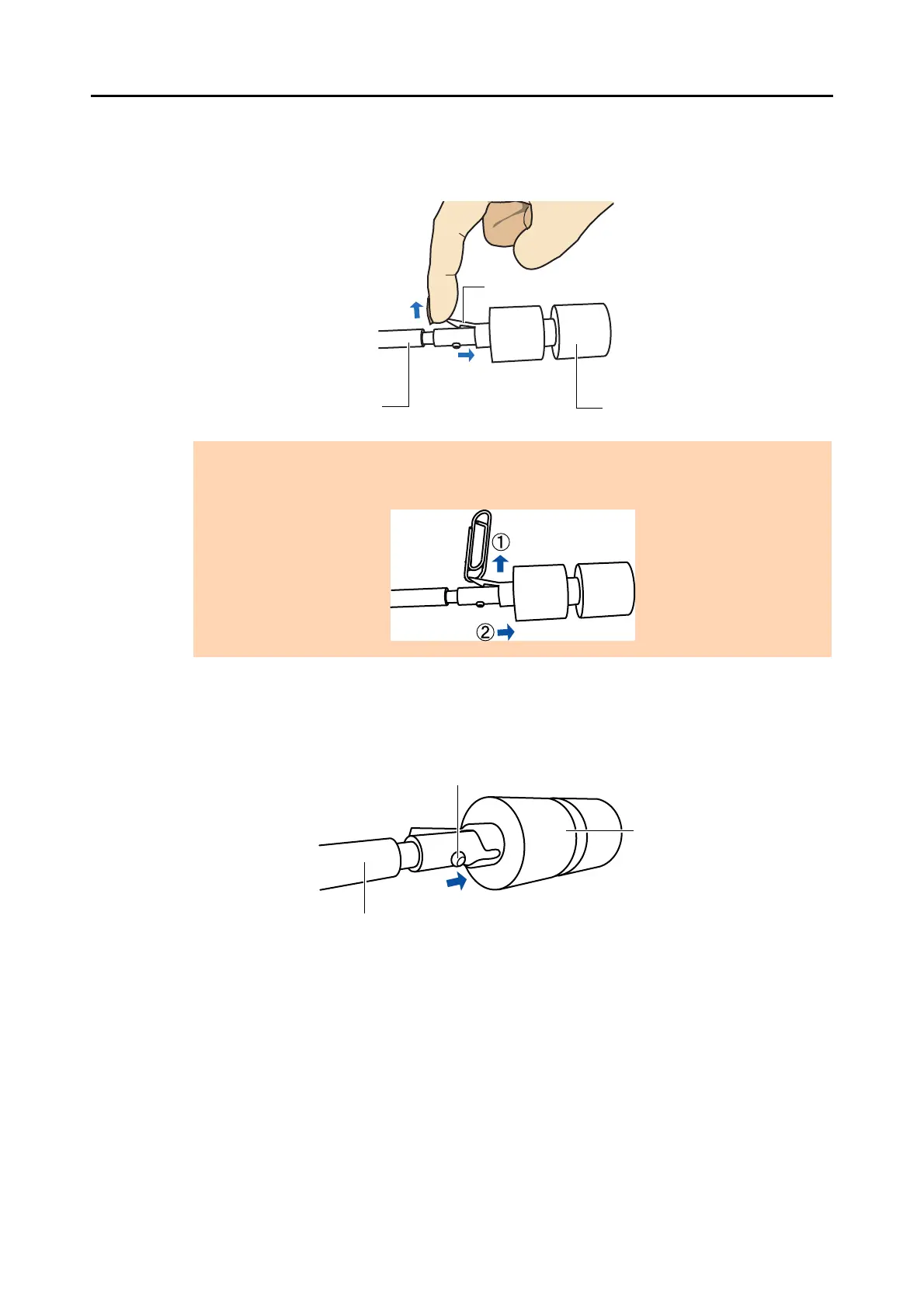

7. Remove the pick roller from its shaft.
D Pull out the shaft as you lift the retaining clip.
8. Attach a new pick roller on the shaft.
Insert the drive pin on the shaft into the slot.
ATTENTION
Lifting the retaining clip with your fingernail may hurt or damage your fingernail.
Use a paper clip or something alike if you have trouble lifting it up.
Shaft Pick roller
Retaining clip
Drive pin
Shaft
Pick roller
