Fujitsu Scan Snap S1300i

Replacing the Pick Roller
461

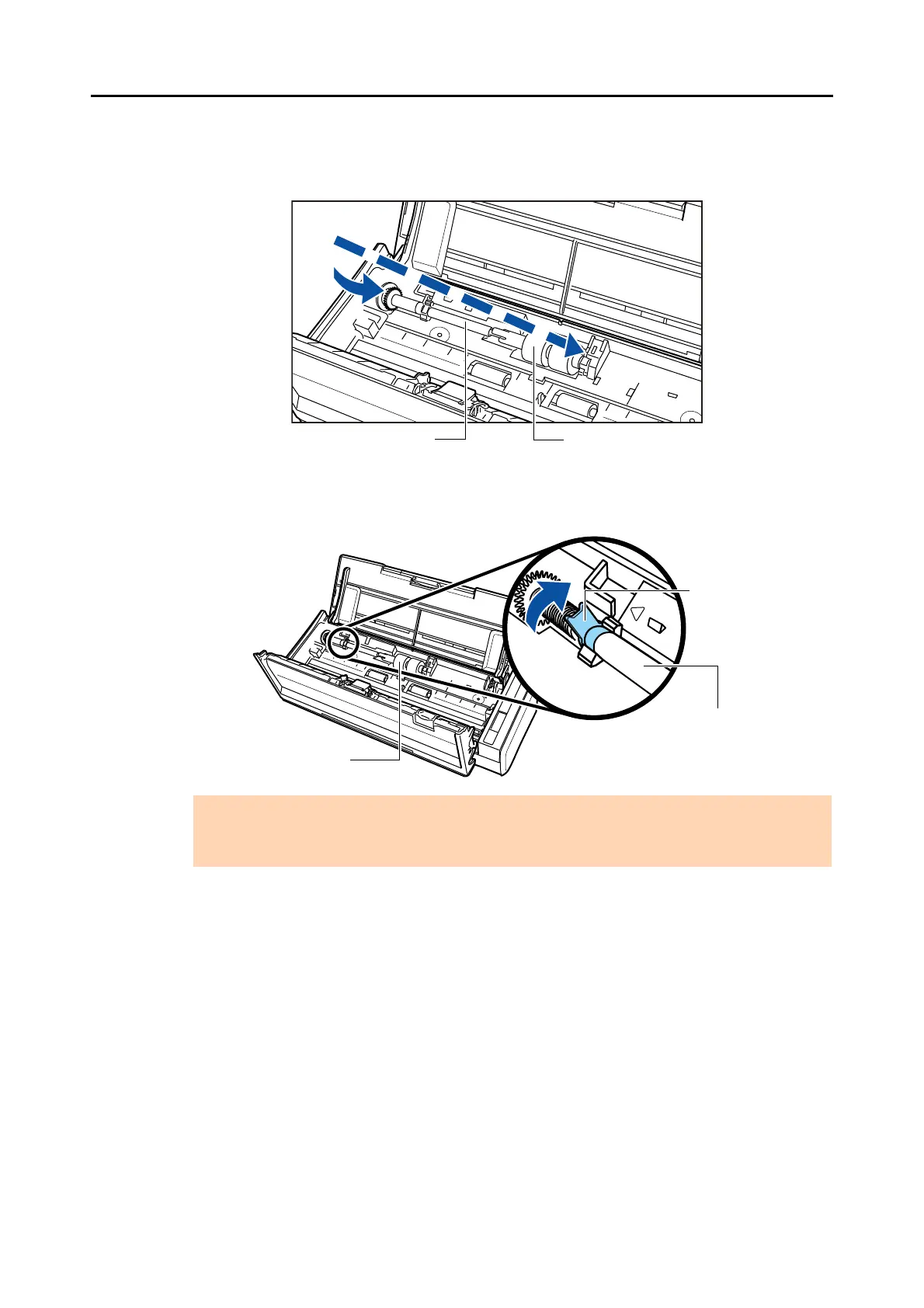

9. Attach the shaft.
Insert the right end of the shaft into the slot, and lower the other end gradually.
10.Rotate the bushing (left) to lock the shaft.
ATTENTION
Confirm that the pick roller is installed properly. Otherwise, paper jams or other feeding errors may
occur.
Pick roller
Shaft
Shaft
Bushing
Pick roller
