Fujitsu Scan Snap S1300i User Manual

Replacing the Pick Roller
462

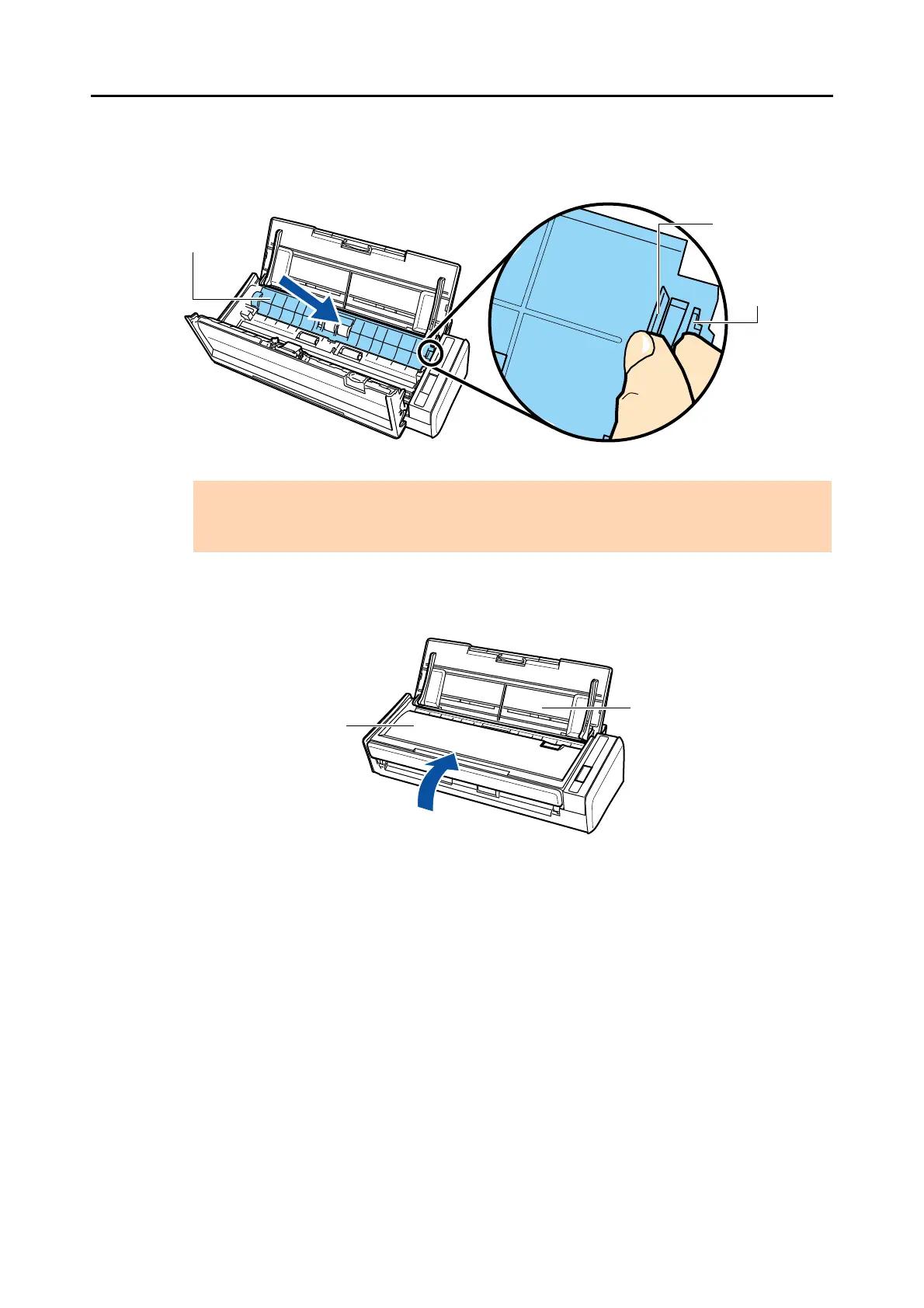

11.Attach the sheet guide.
Hold the squeeze clips on both sides, and attach the sheet guide.
D It clicks when the squeeze clips are released.
12.Close the ADF top section.
D It clicks when it returns to its original position.
13.Connect the power cable to the AC outlet or the USB bus power cable,
and turn on the ScanSnap.
ATTENTION
Confirm that the sheet guide is attached properly. Otherwise, paper jams or other feeding errors
may occur.
Sheet guide
Squeeze clip
Squeeze clip
ADF paper
chute (cover)
ADF top section

Fujitsu Scan Snap S1300i Specifications

General

Optical Resolution	600 dpi
ADF Capacity	10 sheets
Interface	USB 2.0
Color Depth	24-bit
Duplex Scanning	Yes
Scanning Method	CIS (Contact Image Sensor)
Scanner Type	Sheetfed
Max Document Size	A4
Scan Speed	12 ppm (simplex), 24 ipm (duplex)
Dimensions	284 x 99 x 77 mm
Weight	1.4 kg
Supported Operating Systems	Windows, macOS
Power Source	USB Bus Power
