Furuno FELCOM 250 Service Manual

APPROVED
CHECKED
DRAWN
DWG.NO.
MODEL
UNIT
FELCOM250/500

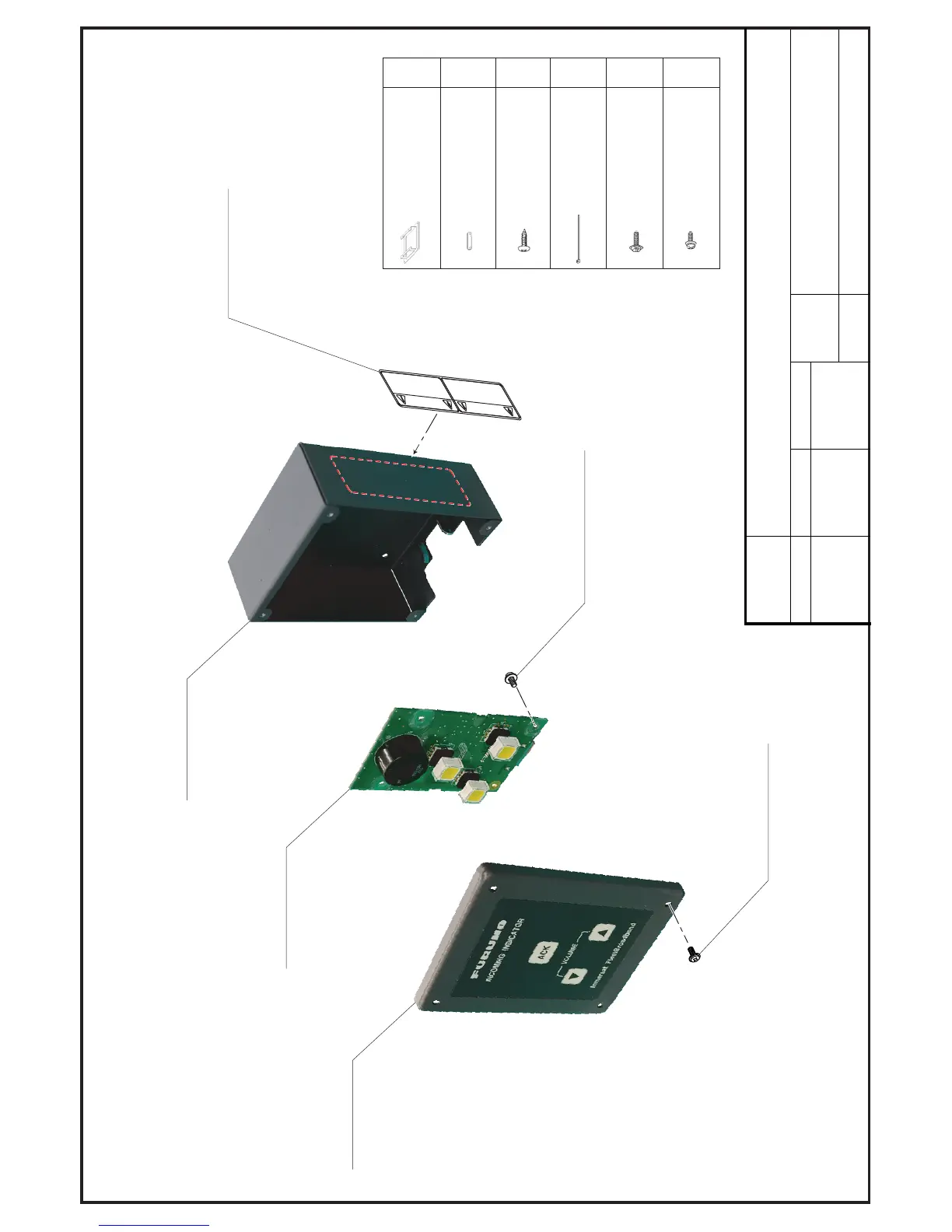

着信指示器
FB‑3000
INCOMINGINDICATOR
30Sep.2009 30Sep.2009 30Sep.2009
Y.Kamba T.Yoshida
S.Kubota
C5666‑E02‑A
ｺｳｻﾞｲ INSTALLATIONMATERIALS CP16‑04001
ﾌﾗｯｼｭﾏｳﾝﾄｶﾅｸﾞ FLUSHMOUNTPLATE 16‑021‑4521‑1 (100‑350‑471‑10)
ｹｰﾌﾞﾙｺﾃｲｶﾅｸﾞ CABLEFIXTURE 16‑021‑4522‑0 (100‑350‑480‑10)
ｺﾝﾍﾞｯｸｽ CABLETIE CV‑150N (000‑162‑186‑10)
+ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ1ｼｭ SELFTAPPINGSCREW 4X16SUS304 (000‑162‑605‑10)
+ﾊﾞｲﾝﾄﾞｾﾑｽF BINDERHEADSCREW‑F M3X8C2700WMBCR2 (000‑163‑538‑10) +ﾅﾍﾞｾﾑｽB WASHERHEADSCREW*B* M4X8SUS304 (000‑163‑863‑10)
4 4
2
1 1 1
ｹｲｺｸﾗﾍﾞﾙ(2) WARNINGLABEL(2) 03‑129‑1001‑3 (100‑236‑743‑10)
ﾊﾟﾈﾙ
PANEL
16‑021‑4511‑2
(100‑350‑442‑10)
ｹｰｽ CASE 16‑021‑4512‑2 (100‑350‑452‑10)
+‑ﾅﾍﾞｾﾑｽB WASHERHEADSCREW*B* M3X8
C2700WMBNI2
(000‑163‑190‑10)
+ﾊﾞｲﾝﾄﾞｾﾑｽF BINDERHEADSCREW‑F M3X8
C2700WMBCR2
(000‑163‑538‑10)
INCOM.INDIﾌﾟﾘﾝﾄ PRINTEDCIRCUITBOARD 16P0270(LF) (001‑069‑620)
