FUTABA 7PXR User Manual

Type 2
Front side only, Reverse
phase switching
Type 3
Front side only, Reverse phase
and same phase switching
Type 4
Front side only, reverse phase, same
phase, and rear side only switching
118
Function
4WS Mixing
2
(Channel setup)

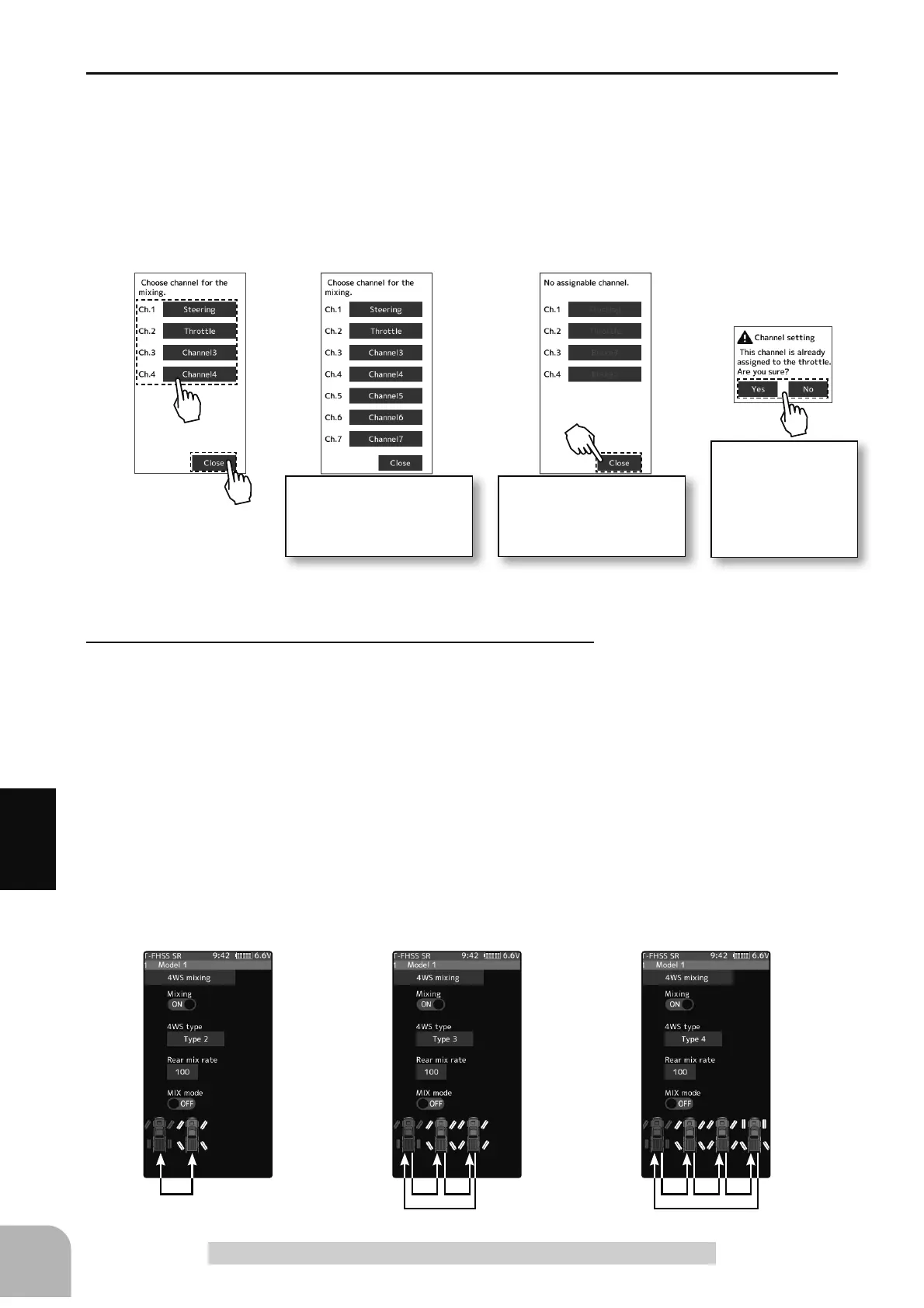

The channel list screen used for rear steering is displayed. Tap the auxiliary channel that
connected the servo of rear steering.
- When all channels are in use, a screen saying "No assignable channel" is displayed, please turn off other mixing
and make an unused channel. You can check the mixing used on the channel setting screen (page 77).
- T7PXR can also be used for rear steering by setting the throttle to other auxiliary channels setting function and
making the Ch.2 assignable channel (page 77).
3
(4WS type selection)
Tap the 4WS type and select [Type 1], [Type 2], [Type 3] or
[Type 4].
"Type 1": Function OFF (front only)
"Type 2": Front side only, reverse phase switching
"Type 3": Front side only, reverse phase and same phase switching
"Type 4":
Front side only, reverse phase, same phase, and rear side only switching
Switched in the order shown in the figure below by the as-
signed switch.
For the S-FHSS (analog)
system, channels 5, 6,
and 7 are displayed on
the 2nd page.
If there is no assignable
channel, tap [Close]. Turn
off other mixing and make
assignable channels.
To set the throttle
to another auxiliary
channel and use it
for steering 2, tap
[Yes]. To cancel,
[No] is tapped.
Setting
- Tap 4WS type.
Type 1/Type 2/Type 3/Type 4
