CS875-575-375-275-175 Installers Manual with CS5500 keypadB.7.1
Chapter 7: Setting up the CS507
7.1 Overview
The CS507 output expander is an auxiliary module used to expand the output capabilities of the CSx75 control
panel with the following functionality:
• Microprocessor controlled two relay, five Open Collector expander.
• Two separate normally open and normally closed relay contacts for a variety of applications, including access
control, home control/automation, wireless interfaces, and security functions.
• Five low current trigger outputs (Output 1-2-3-4-5).
The CS507 output expander can be programmed to:
• Activate for an event in any or all partitions, if the control panel supports partitions.
• Set up each relay to follow up to eight different schedules to either activate the relay during the On time, or to
be used in conjunction with another programming option to create time zones.

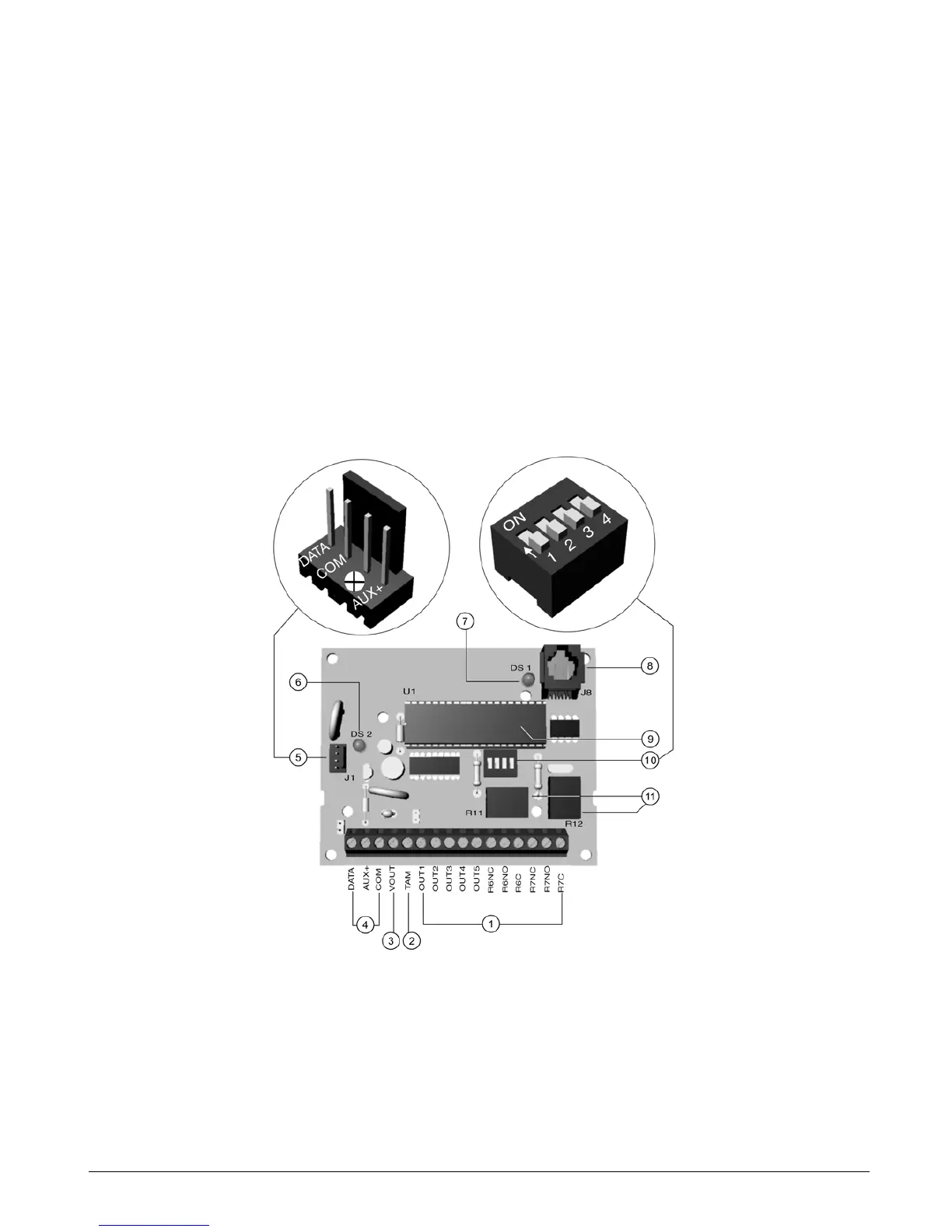

7.2 Installing the CS507 output expander
1
Form C (SPDT) relay connections (2 sets) + 5 open collectors
7
X–10 supervision LED
2
Tamper connection
8
X-10 connection
3
Auxiliary power connection
9
Processor
4
Keypad bus connection
A
DIP switches (4 positions)
5
Additional keypad bus connection
B
Relay
6
Supervision LED
