CS875-575-375-275-175 Installers Manual with CS5500 keypadB.16.6

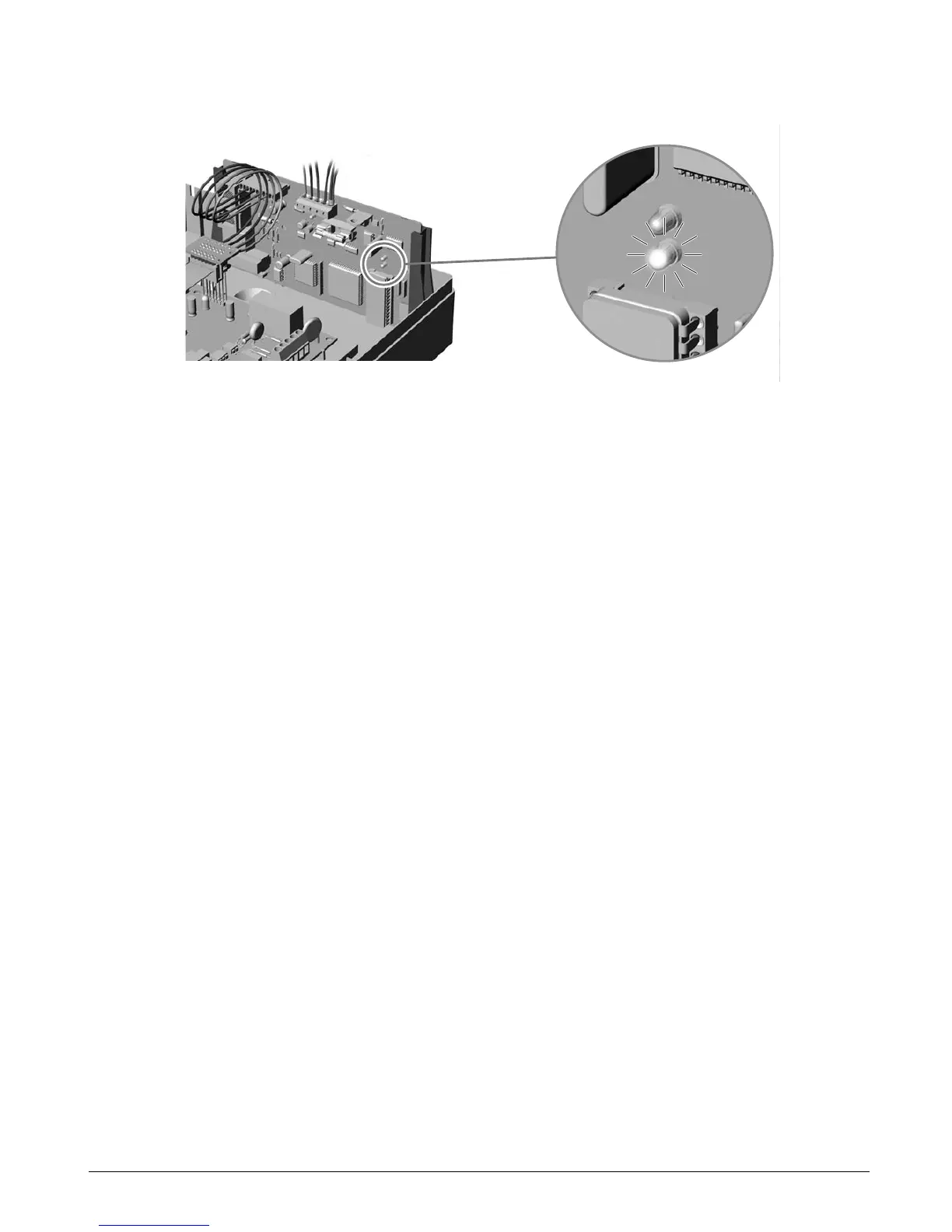

9. The red LED flashes when the CS7501 is powered up.
16.2.3 Wiring the battery leads
The battery leads should be wired to the panel battery as follows:
1. Connect the COM of the panel to the COM of the ISDN dialler connection.
2. Connect the battery COM cable of the panel to the COM of the battery.
3. Connect the red POS Male connector from the ISDN dialler to the battery 12V connector of the panel
4. Connect the red female POS connector to the POS of the battery.
5. The red LED flashes when the CS7501 is powered up.
For information on installing the CS7501 TCP/IP module in the various housings, see chapter A-4 Installing a
basic system.
