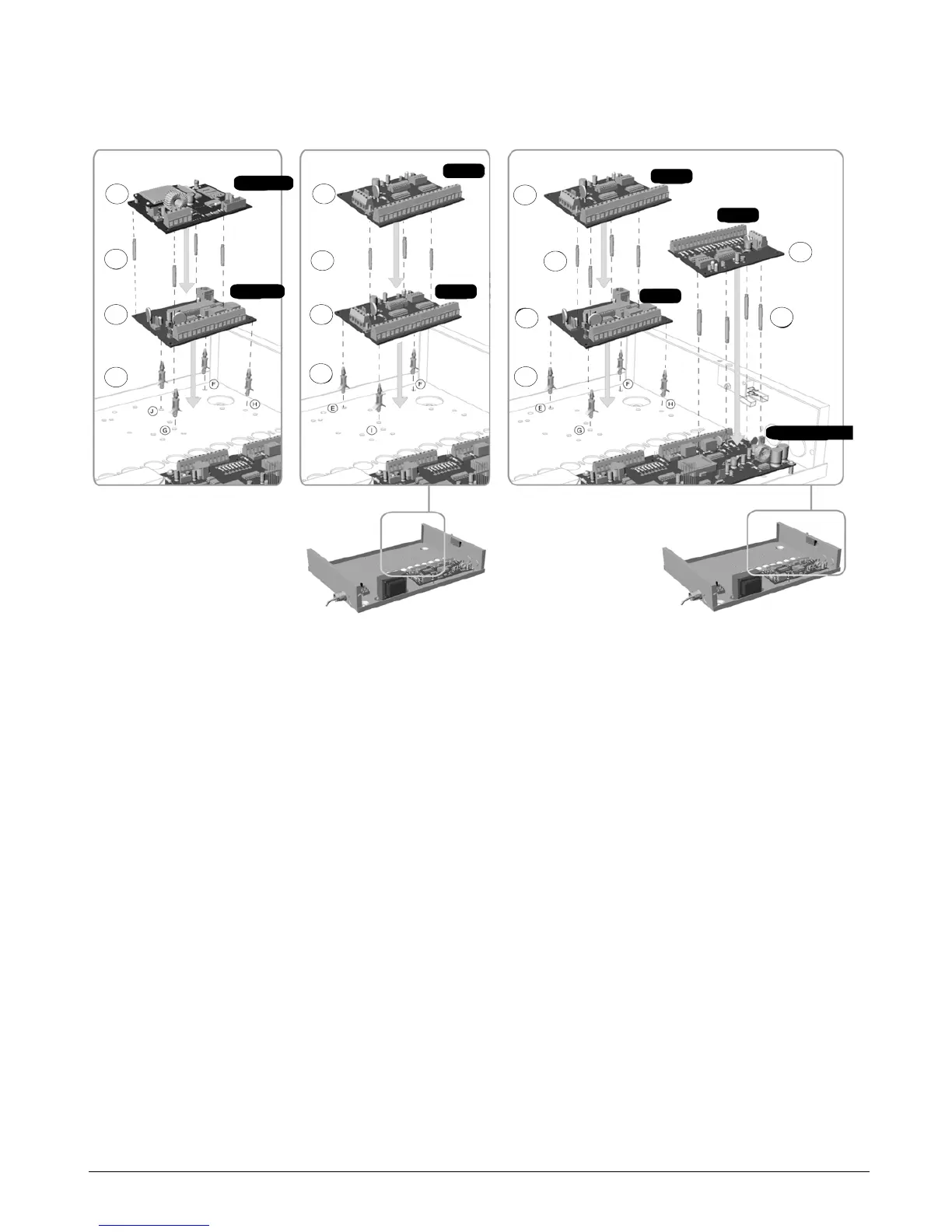

- Attach the pillars for the CS534 listen-in module to the box.
- Insert the CS534 listen-in module in the box.
5. Add the pillars for the CS507 output module or CS208 / CS216 input expander or CS7002 GSM module to
the box.
6. Mount the CS507 output module or CS208 / CS216 input expander or CS7002 GSM module.
7. Mount the pillars for a CS208 / CS216 input expander on the CS575/875 board.
8. Mount the CS208 / CS216 input expander on the CS575/875 board.
9. Wire the keypad bus for all modules. Check the relevant module chapter for wiring information. For
information on mounting the CS7501 ISDN dialler, see chapter B-16 Setting up the CS7501.
10. Connect the battery and power up the panel.
