Page 153

Hydran* M2-X Instruction Manual

MA-029 Rev. 1.0, 30-Jul-18

A.2.3. Maximum Dimensions

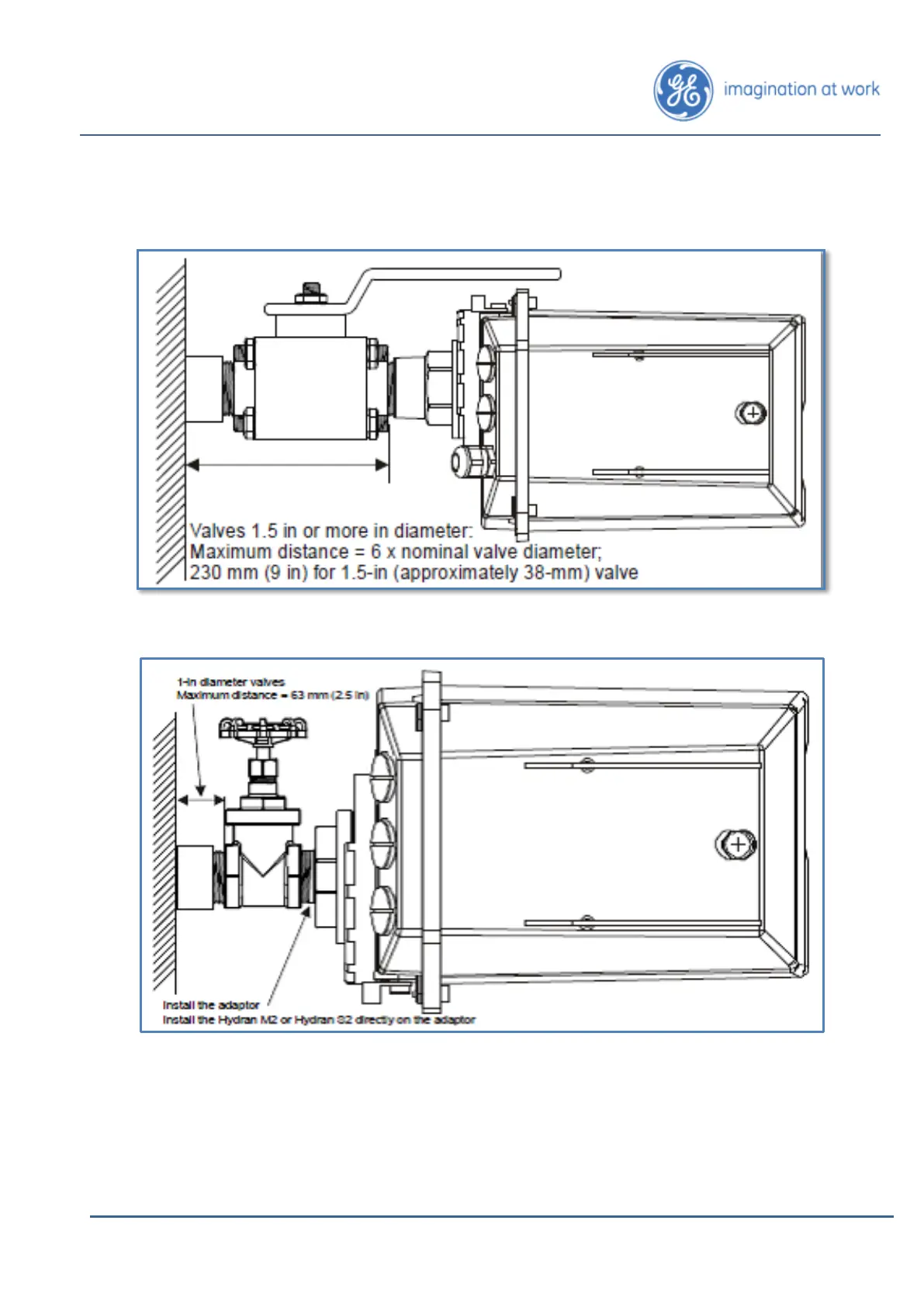

Figure A - 7: Maximum Distance for Valves 1.5in or More in Diameter

Figure A - 8: Maximum Distance for 1in Diameter Valves
