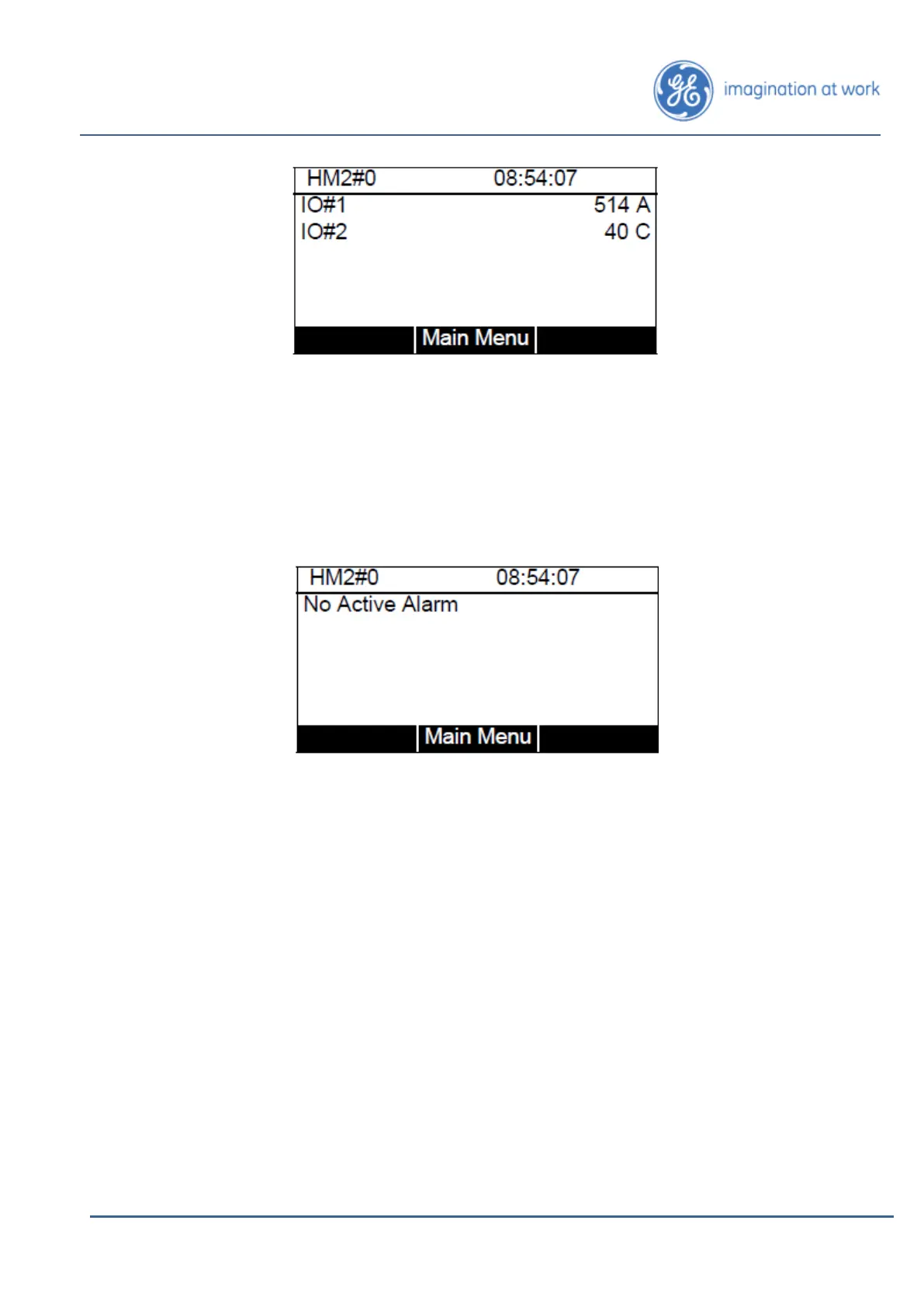

Figure 3-6: Screen 3 of Main Display Mode - Analog Input Readings Screen
Note: The readings of screens 1, 2 and 3 can also be accessed in View Readings >
Current Readings (see Section 3.4.1).
• Screen 4 (see below) displays the list of active alarms. Alarm conditions are
listed in this screen only if an alarm occurred, if it was acknowledged and if
the alarm condition is still present.
Figure 3-7: Screen4 of Main Display Mode - Active Alarms Screen
3.1.3 Changing the Value of a Parameter
Proceed as follows to change the value of a parameter:
1. Navigate to the desired parameter and press the Change context key. There
are two possibilities:
• For numeric parameters, a screen similar to the one shown in Figure 3-8 is
displayed. This screen indicates the following information:
– Current Value: Current value of this parameter.
– Min Value: Lowest value at which this parameter can be set.
– Max Value: Highest value at which this parameter can be set.
– New Value: To set a new value for this parameter.
