Hydran* M2-X Instruction Manual
MA-029 Rev. 1.0, 30-Jul-18
4.3.3 Preparing the Valve
1. Wipe the outside of the valve.
2. Clean the valve’s threads.
3. Dispose of the collected oil according to the company regulations.
4.3.4 Separating the Sensor from the Hydran M2-X
Separate the sensor from the Hydran M2-X. Proceed as follows (see Figure
below):
1. Remove the set screw (arrow 1 on Figure 4-3 that secures the Hydran M2-X
and its sensor together.

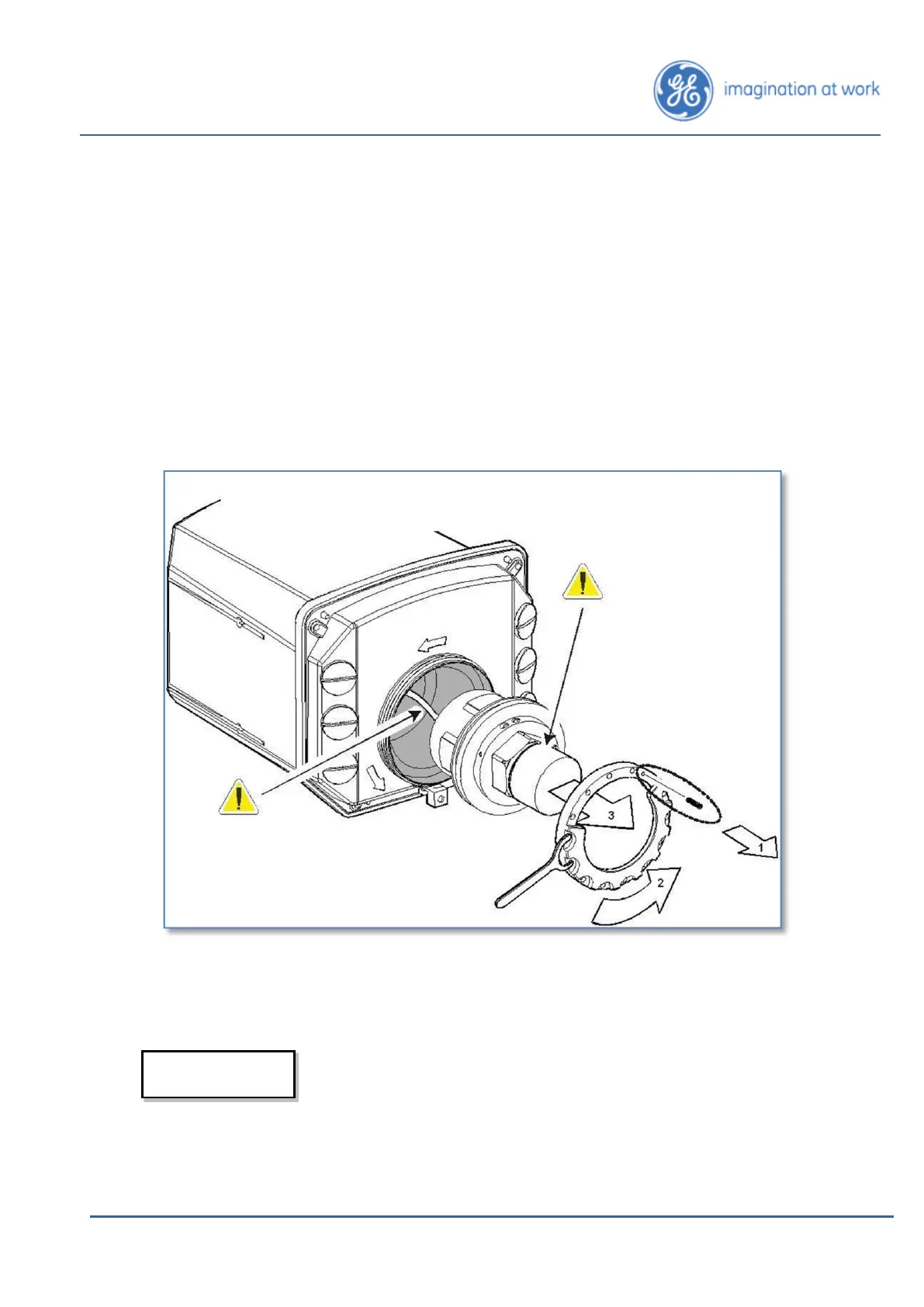

Figure 4-3: Separating the Sensor from the Hydran M2-X
2. Remove the sensor clamp using the spanner wrench.
3. Carefully pull the sensor a few centimeters from the enclosure.
A cable connects the sensor to the electronic card cage.
4. Disconnect the connector located at the back of the sensor (see Figure 4-3).
5. Rotate the connector anticlockwise (approximately 1/8 of a turn), then
carefully pull it from the sensor.
CAUTION
CAUTION
Oil on sensor
CAUTION
Sensor cable
1. Remove set screw.
2. Remove clamp using spanner wrench.
3. Carefully pull out sensor.
