Hydran* M2-X Instruction Manual
MA-029 Rev. 1.0, 30-Jul-18

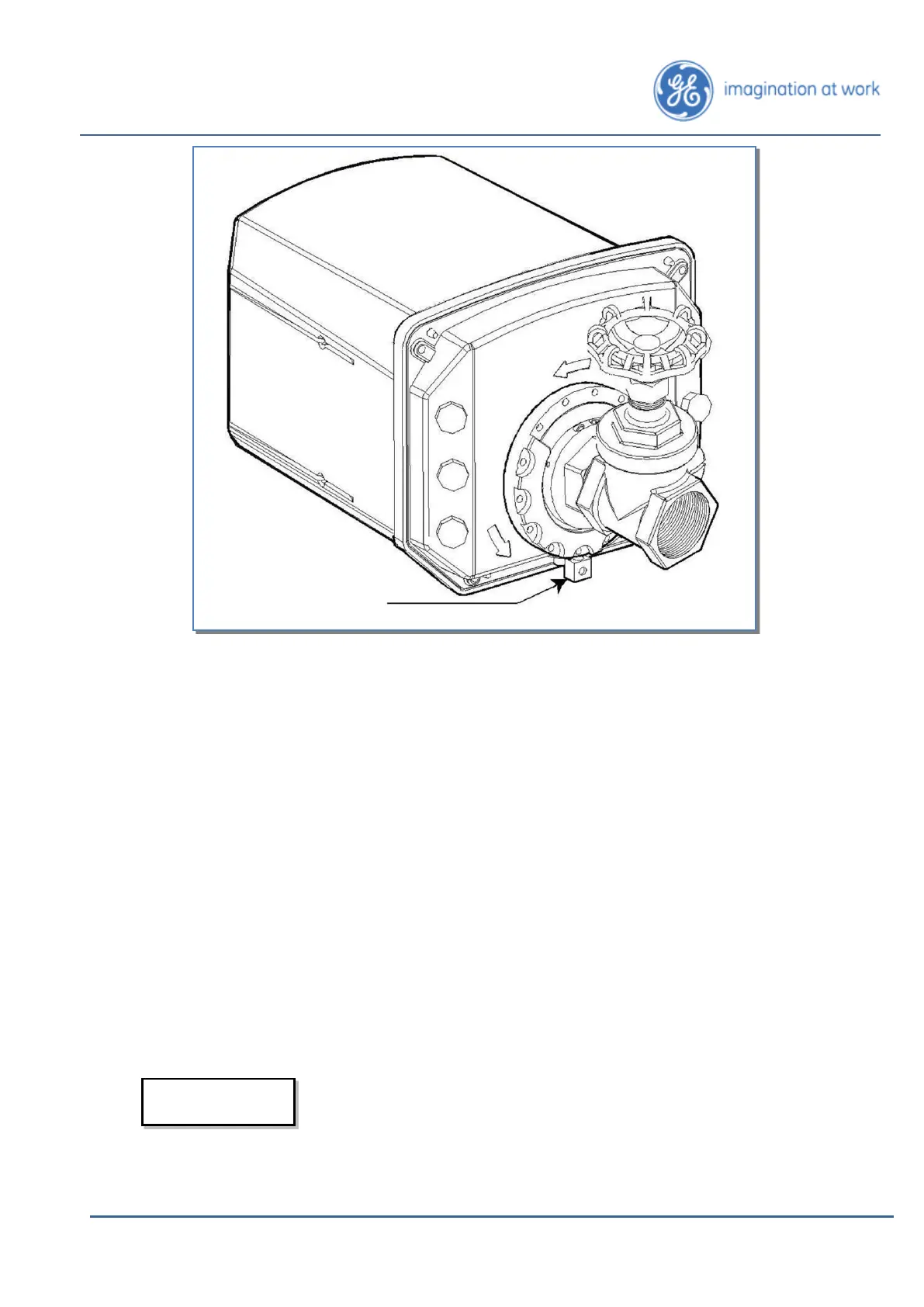

Figure 4-10: Grounding the Hydran M2-X Enclosure
4.3.9 Installing the Cable Conduits
Note the following considerations prior to installation:
• All cables connected to the Hydran M2-X must be run through steel conduits
or must be armored.
• Conduits, or cable armors, should be made of steel to provide shielding
against magnetic fields.
• Flexible rather than rigid conduits should be used near the Hydran M2-X to
ease installation and servicing.
Proceed as follows:
1. Remove the cover’s four retaining screws using the supplied Allen key. See
Figure 4-11 on the next page.
2. Pull the cover.
3. Remove the cap from the desired conduit fittings. Install the necessary
watertight conduit fittings. See Figure 4-12.
All conduits, cables and fittings must be high quality and
watertight to avoid water ingress in the Hydran M2-X.
WARNING
Connect ground wire to
ground lug using a 10-6
AWG copper wire.
