Page 89
Hydran* M2-X Instruction Manual
MA-029 Rev. 1.0, 30-Jul-18
The Hydran M2-X must always be grounded, even if the
transformer tank is grounded at a single point and
monitored for tank-to-ground currents.

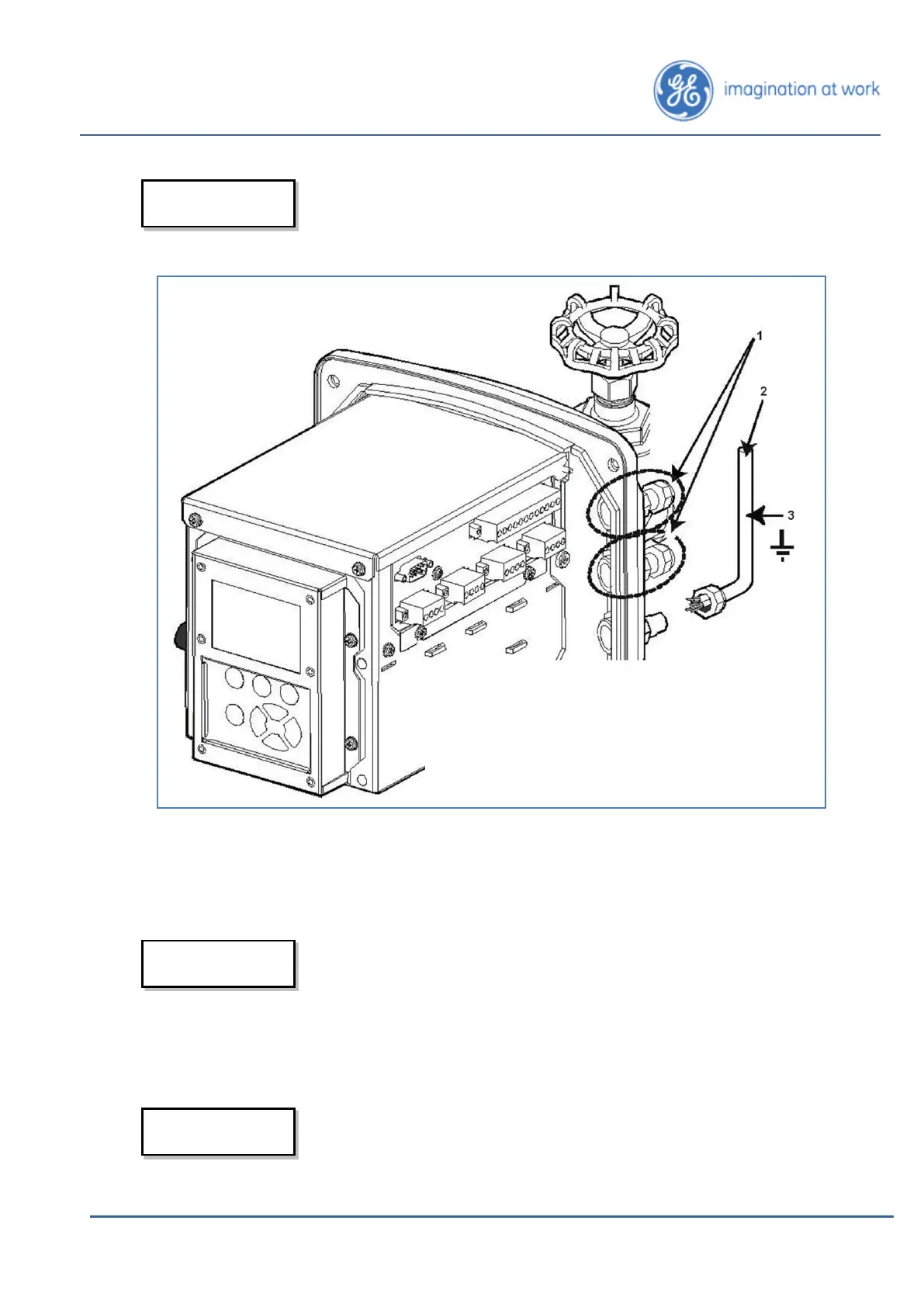

Figure 4-12: Installing Cable Conduits
4.3.10 Installing the Cables
The Hydran M2-X’s operation may be affected if wires are not
connected correctly. Be careful when installing and inserting
each wire. Be sure to insert all strands in the terminal;
strands that touch two terminals will cause problems. Strip
each wire to a maximum of 8 mm before installing it. Do not
leave trims of metallic strands inside the Hydran M2-X’s
enclosure.
The first temporary plug (see item 1 in Figure 2-6 must be
removed and replaced with a watertight fitting to connect
the ac power supply cable (Section 4.3.10.6).
1. Mount the required, watertight conduits fittings: ½”-
NPT, PG-13 or M2-X0, with locknuts and sealing
gaskets.
2. Mount required flexible conduits.
3. Ground all metallic conduits.
4. Ensure that the plugs of all unused openings are
securely in place.
CAUTION
CAUTION
CAUTION
