Hydran* M2-X Instruction Manual
Page 174
MA-029 Rev. 1.0, 30-Jul-18
D-4. “4-20” mA
Terminal
Description
From (External)
Comments
1
Configuration
b
SCADA system
4-20 mA = 0-2,000
ppm; 500-Ω maximum
load; 2,500V rms
isolation level; for either
ppm gas level. %RH or
oil temperature
monitoring
2
a
4-20 mA analog input-
3
4-20 mA analog input+
4
Shield
Table D - 3: Connections for the 4-20mA Analog Output Terminal Block
a. Use one shielded pair (100 % cover), twisted, 18 AWG (0.93 mM2-X)
b. The CFG terminal is only used by General Electric to test the analog output card to ensure it gives a
good voltage.

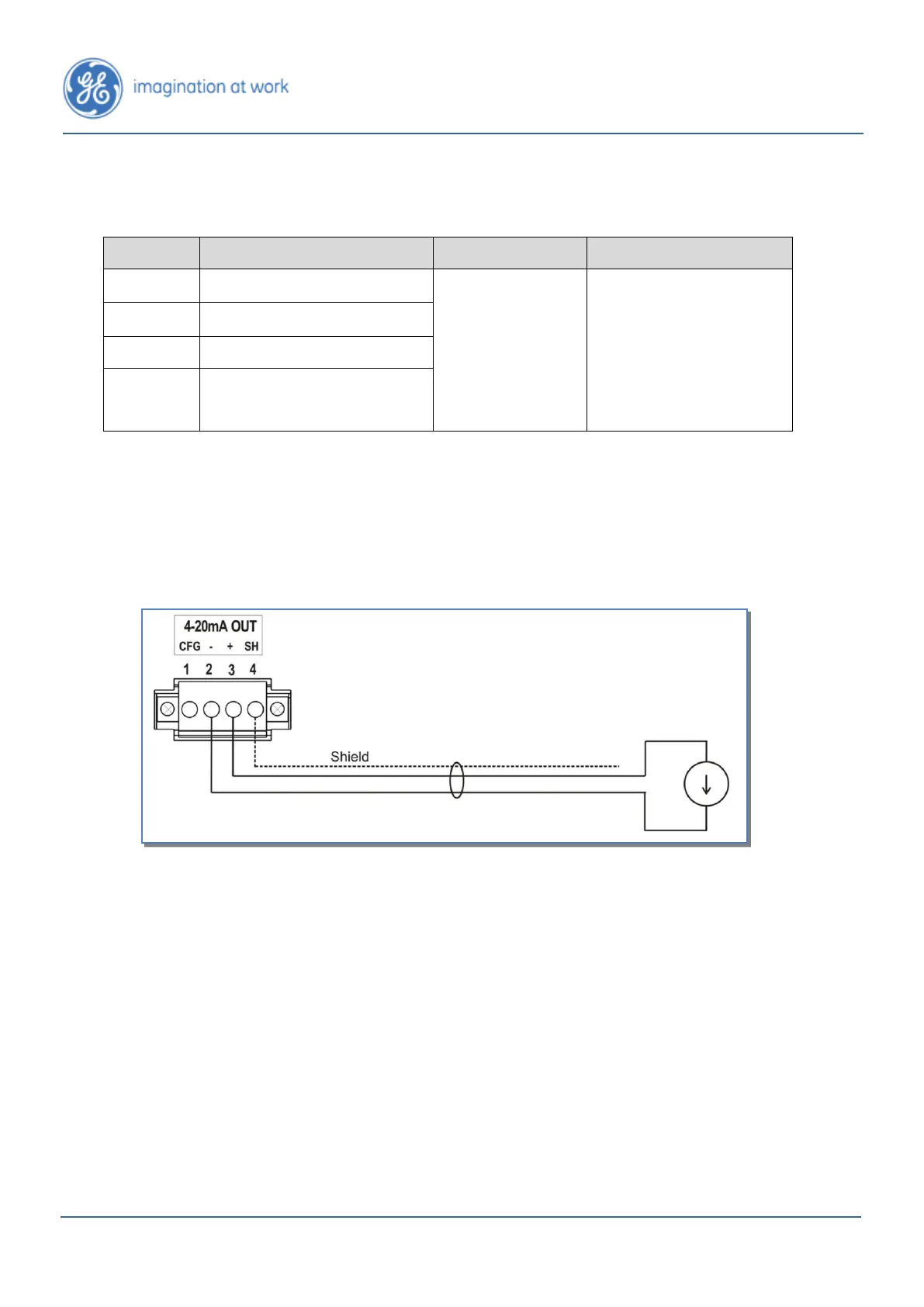

Figure D - 12: Wiring of the 4-20 mA Analog Output Terminal Block
D-5. Limitations
In a current loop, any length of cable and number of devices can be connected in
series provided that the following conditions are met:
• All devices have floating differential inputs (both leads of signal input are
ungrounded).
• The total loop resistance does not exceed 300 Ω.
SCADA
4-20 mA
Input
