Hydran* M2-X Instruction Manual
MA-029 Rev. 1.0, 30-Jul-18

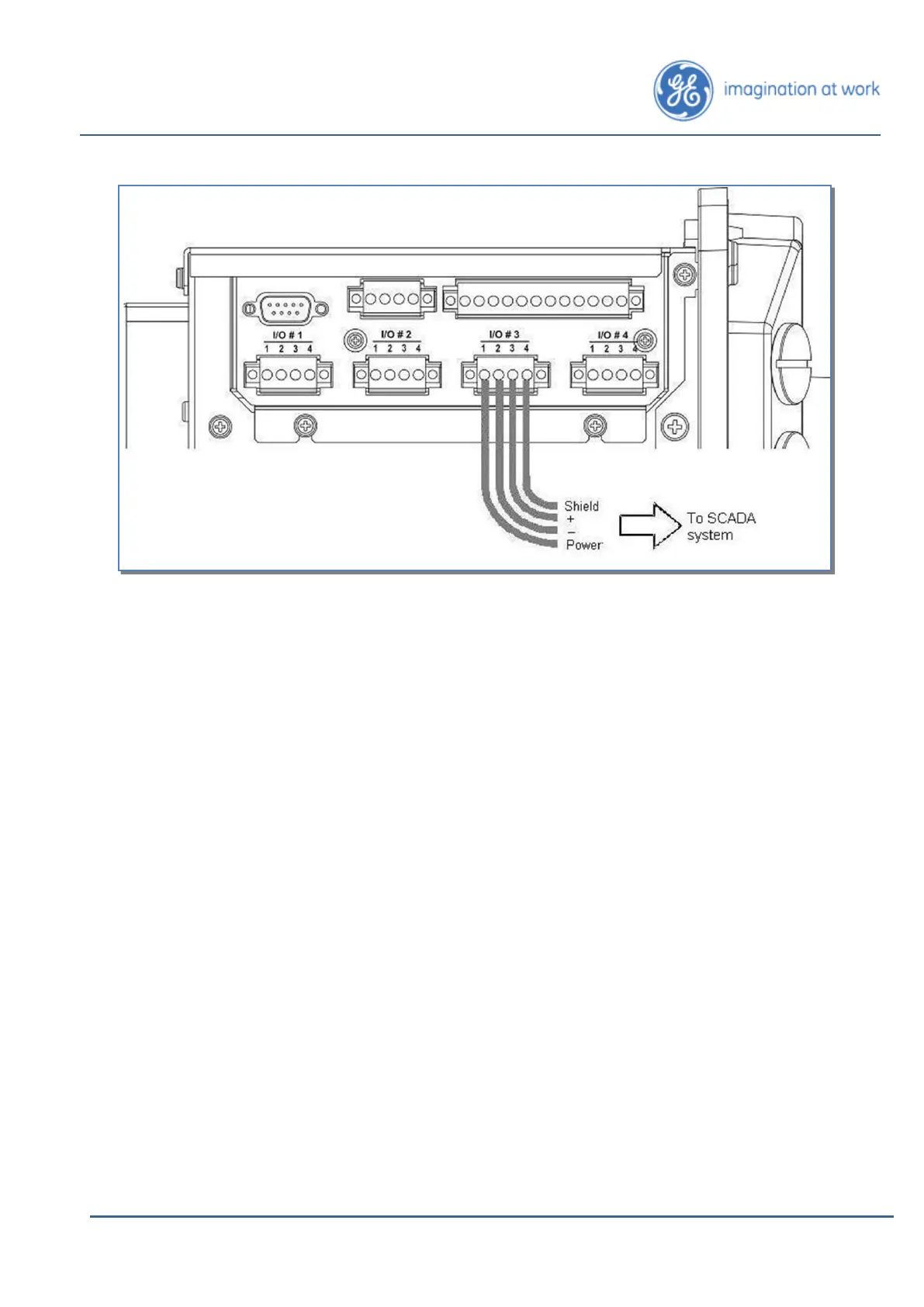

Figure D - 11: General Wiring of the Analog Output Terminal Block
The recommended cable is: individually twisted and shielded pairs of copper
multi-stranded wires, with a shield, a steel armor and a PVC overall jacket.
Note: This optional Analog Output
board can be installed at any of
the four I/O locations.
