Page
171
Hydran* M2-X Ins
truction Manual
MA
-
029
Rev. 1.0,
30
-Jul-
18

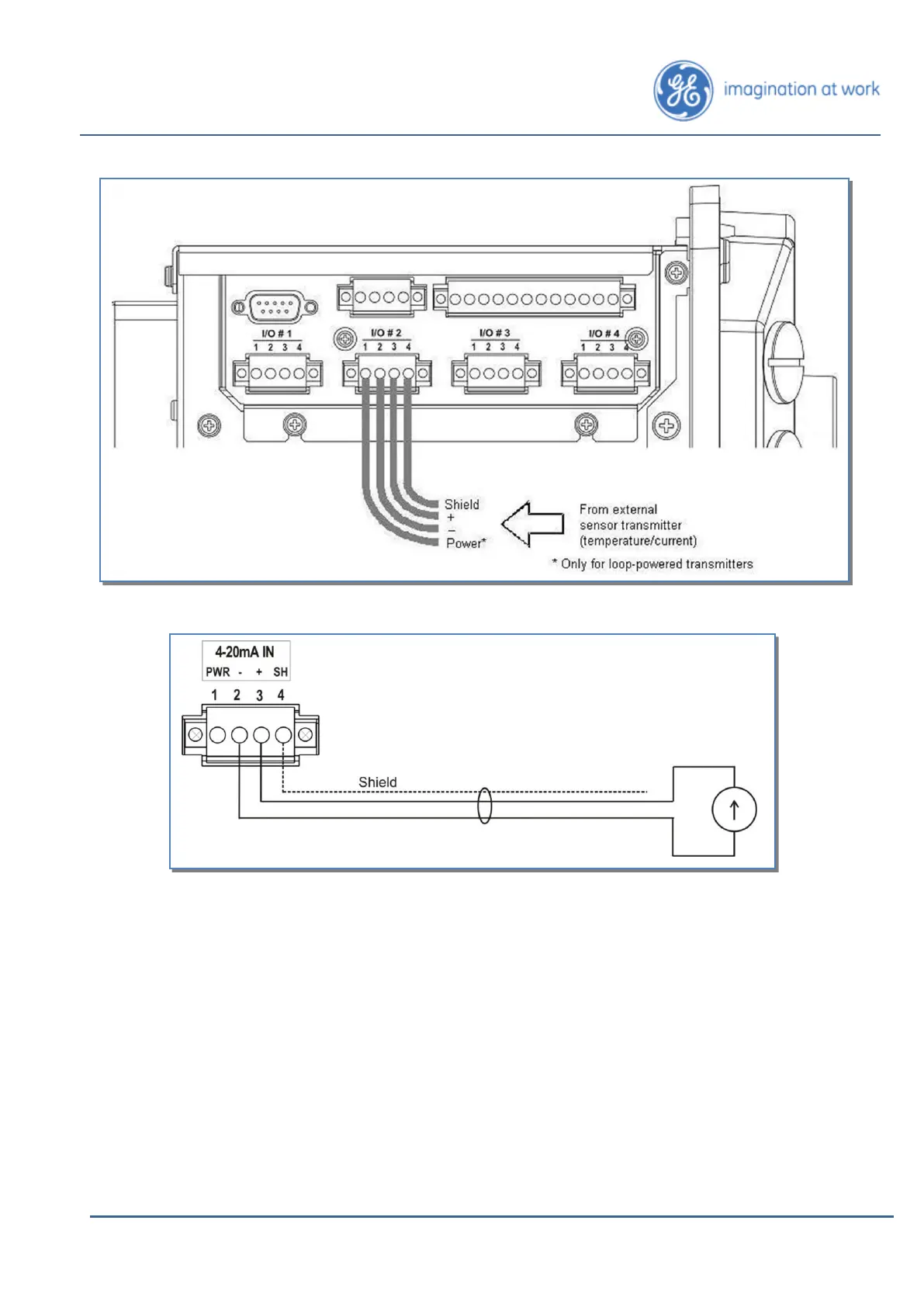

Figure D - 7
:
General Wiring of the Analog Input Terminal Block
Figure D - 8
:
Wiring of Self-Powered, Analog Inputs
Note: This optional Analog Input
board c
an
be installed at any of
the four I/O locations.
Active 2-wire
4-20mA Sensor
170
172
