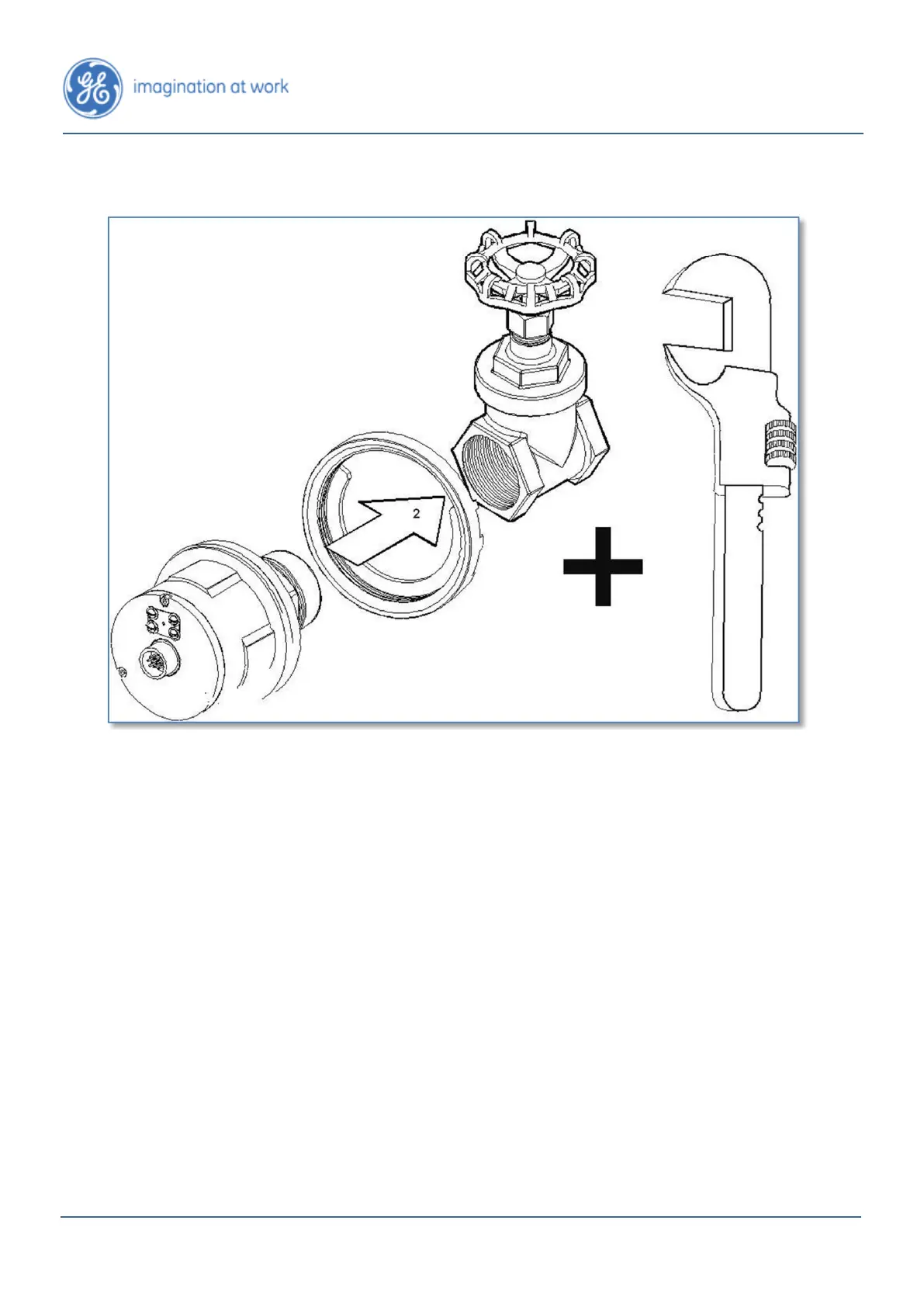

Figure 4-6: Mount the Sensor Manually onto the Valve and Tighten it, Using an Adjustable Wrench
7. Screw the sensor manually onto the valve.
8. Tighten the sensor using an adjustable wrench. Do not use excessive force
when tightening the sensor onto the valve.
Note: If the sensor is installed horizontally, ensure the bleed screw is on top (at the “12
o’clock” position). See Figure 4-7 on the next page.
9. Ensure the O-ring is in place on the sensor flange.
1. Install clamp around sensor.
2. Install sensor on valve.
3. Tighten using adjustable wrench.
