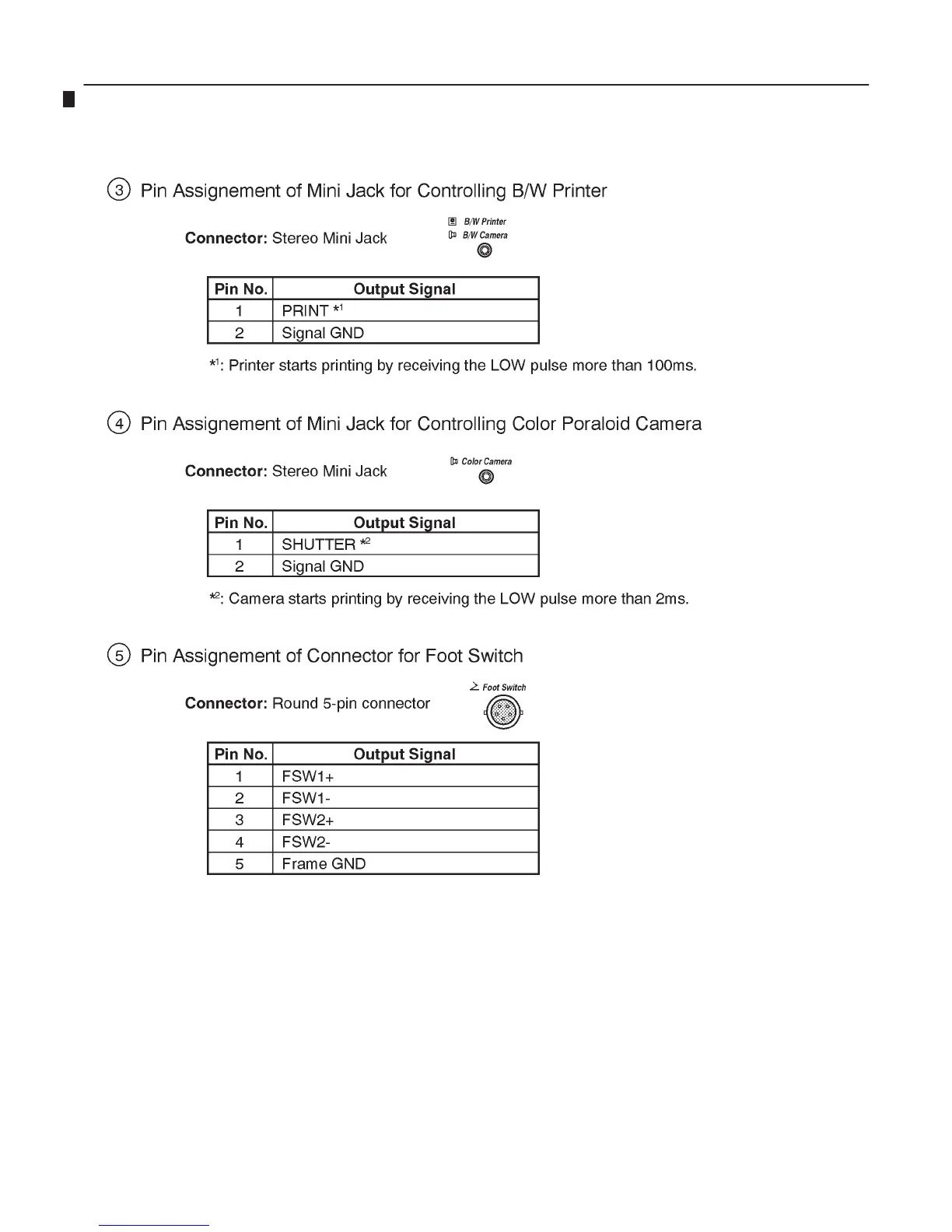

3–5–1 Peripherals/Accessories Connector Panel (Continued)
Note
Output level of control signals indicated in the above tables are TTL level.
