GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
3 - 18 Section 3-4 - Completing the setup
3-4-4 Connections on the I/O Rear panel
NOTE: Accessory equipment connected to the analog and digital interfaces must be certified according
to the respective IEC standards (e.g. IEC60950 for data processing equipment and IEC60601-
1 for medical equipment). Furthermore, all complete configurations shall comply with the valid
version of the system standard IEC60601-1-1. Everybody who connects additional equipment
to the signal input part or signal output part of LOGIQ E10, configures a medical system, and is
therefore responsible that the system complies with the requirements of the valid version of
IEC60601-1-1. If in doubt, consult the technical service department or your local representative
for GE.
Connect Ethernet
Connect the Ethernet cable to the Ethernet connector on the external I/O (rear side of LOGIQ E10).
Connect USB Flash Drive
Refer to “USB Hard Disk Drive and USB Flash Drive” in Chapter 9 of the LOGIQ E10 Basic User Manual
for more information.

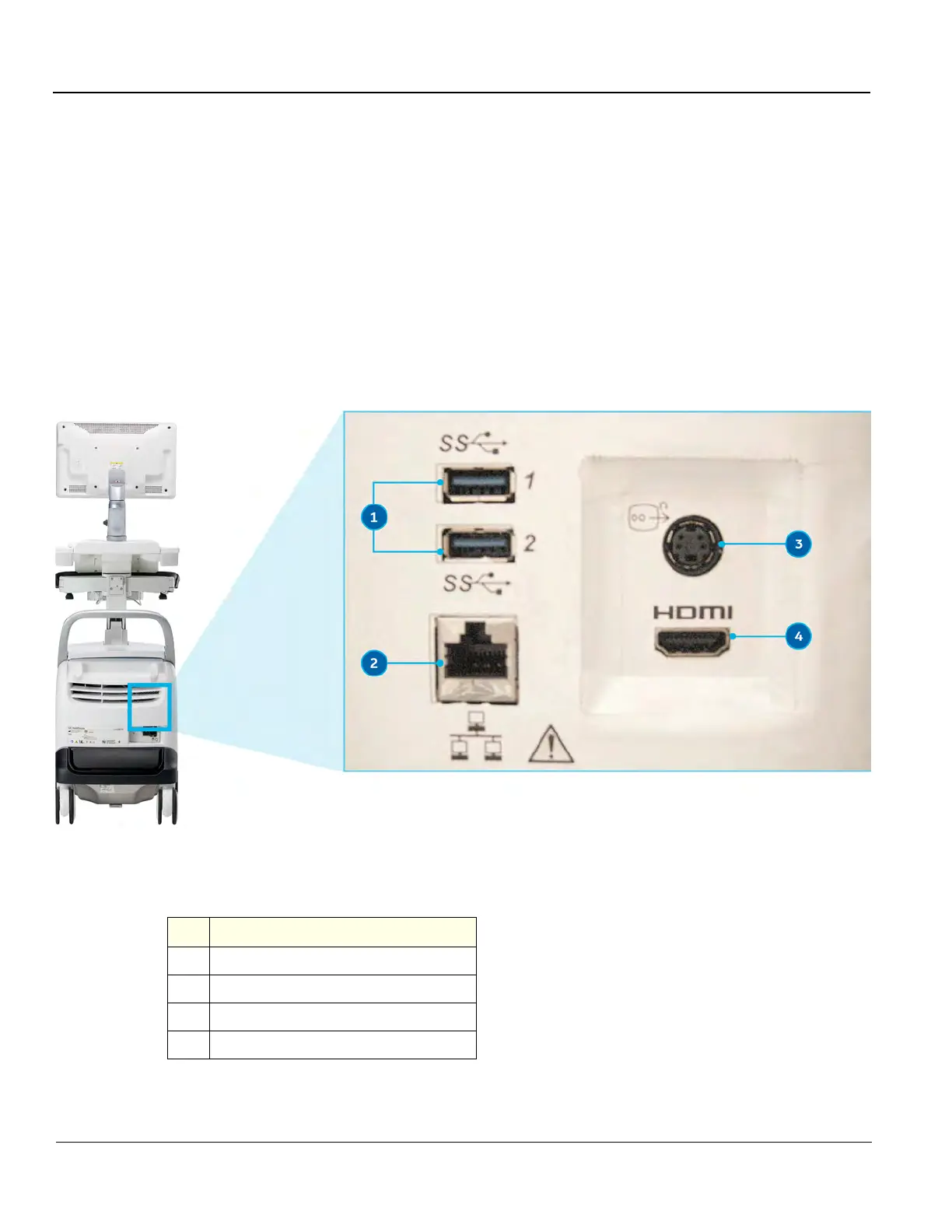

Figure 3-6 I/O Rear Panel
Table 3-7 I/O Rear Panel
Item Connection
1
USB 3.0 port
2
RJ-45 modular, 8-pin Ethernet
3
S-Video
4
HDMI port

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
