GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 250 Section 8-10 - Casters and Brakes replacement
8-10-7 Pedal Mechanism Covers replacement

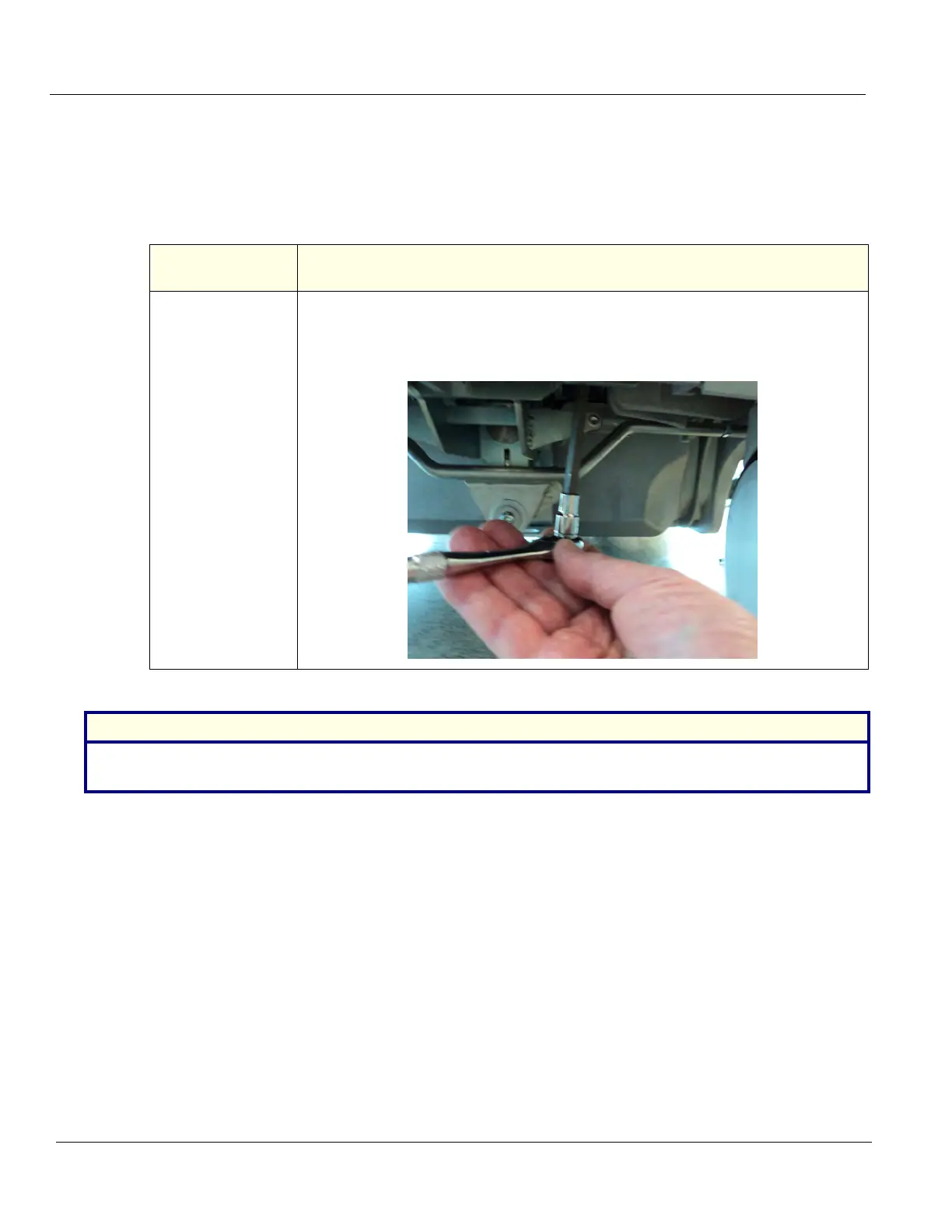

The Pedal Mechanism Covers are attached to the LOGIQ E10 with self-tapping screws. These
mounting screws are screwed into plastic. Use care during installation, DO NOT overtighten.
This procedure applies to both Covers on the Pedal Mechanism.
Table 8-270 Manpower / Time and Tool
Manpower /
Time
Tools / PPE
One person /
5 minutes
per cover
Refer to: 8-2-5 "Tools needed for servicing the LOGIQ E10" on page 8-6 /
8-2-6 "PPE Required During Service" on page 8-6.
A small ratchet with 1/4 inch socket and a #2 Phillips, six inch extended driver and
a mirror will be very helpful during this procedure.
Table 8-271 Preparations and Preparation Links
Preparations - you must perform the following steps
1. Power down the system.
2. Disconnect the mains power cable from the wall outlet.
