DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 179
8-7-25 Replacing the Gel Warmer with a Storage Tray or TV/TR Probe Holder
Follow these instructions when removing the Gel Warmer and replacing it with a Storage Tray or a TV/
TR Tray.
Gel Warmer replacement
Before starting this procedure, see: 8-7-23 "Gel Warmer replacement" on page 8-173.

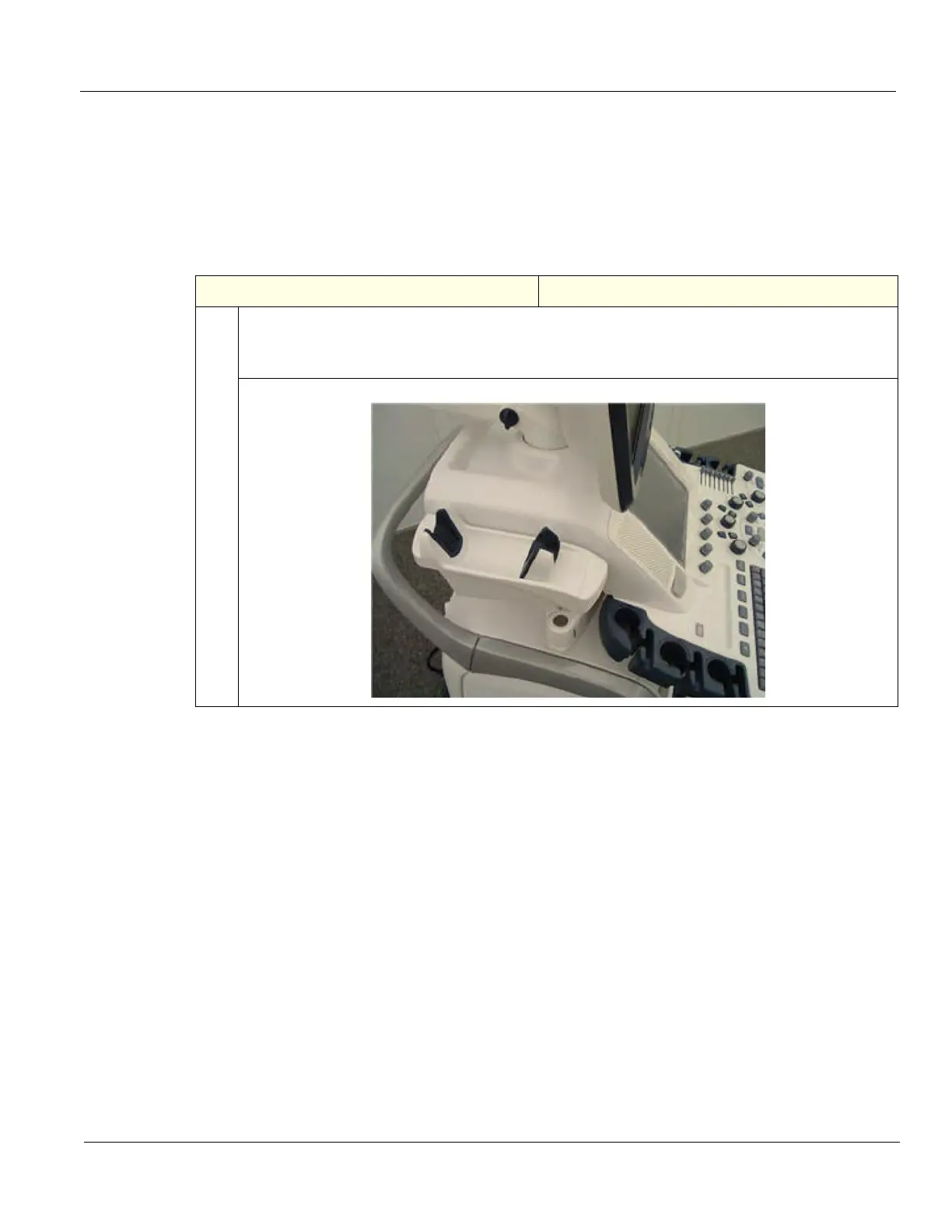

Table 8-211 Storage Tray / Transvaginal Probe Holder installation
Steps Corresponding Graphic
1. Remove the Gel Warmer.
Seat the tray tab into the options holder base and snap into place (see: Table 8-210 "Storage
Tray / Transvaginal Probe Holder installation" on page 8-178.
To Next Page
