DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 5 Components and Functions (Theory) 5 - 25
Section 5-11
Air Flow control
5-11-1 General description
The Air Flow Control includes the following components: Air cooling fans located at the bottom of the
LOGIQ E10 Card Cage and air cooling fans in the power supply that are self-managed by the power
supply itself.
5-11-2 Location in the LOGIQ E10
There are three air strainers/filters: One located on the rear of the LOGIQ E10 and one located on each
side panel, near the bottom in a recessed feature. Refer to Chapter 8 for more information.

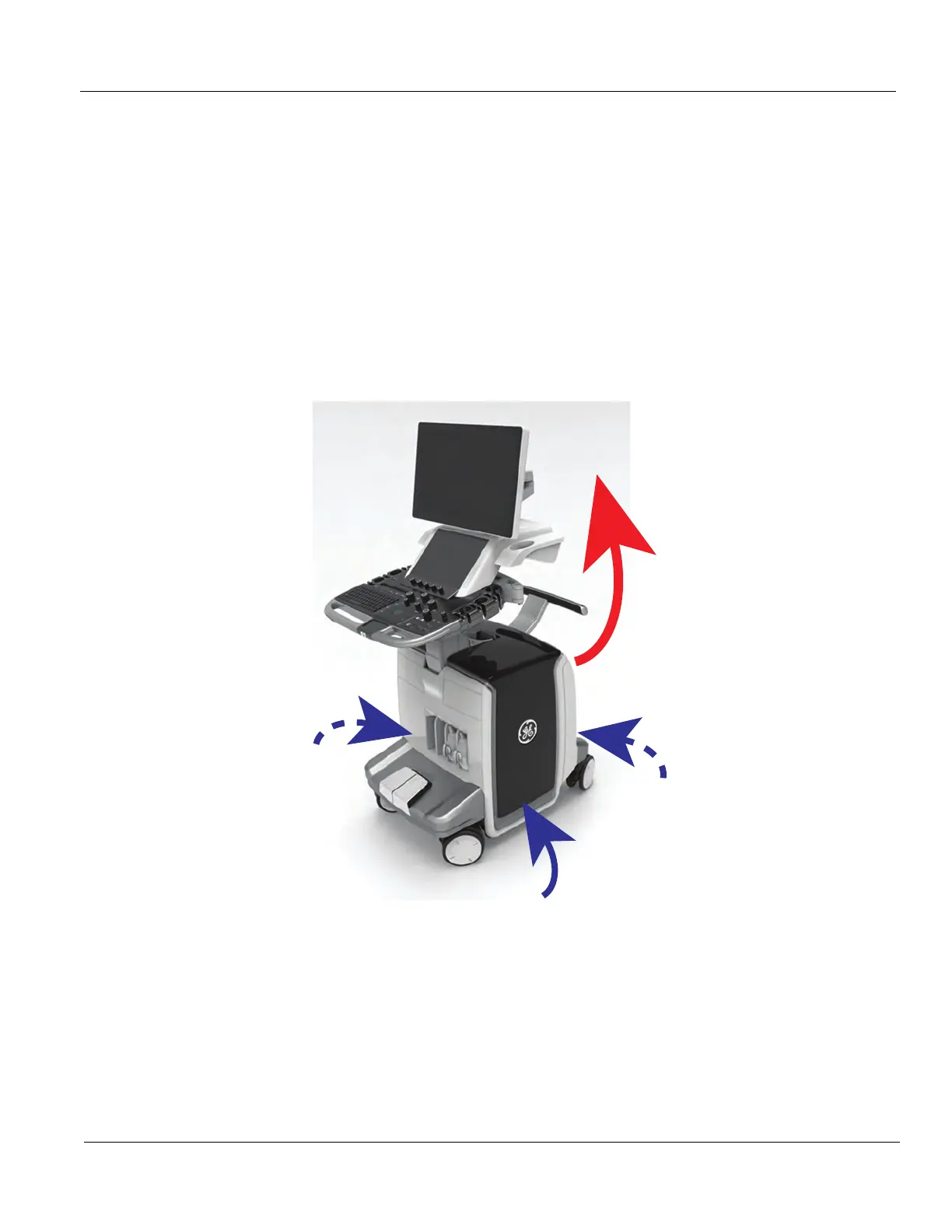

Cooling air is drawn in, evenly into the filters located in the bottom of the Side Covers/Air Intake and the
Rear Bumper/Air Intake. The warmed air is exhausted from the Rear Cover/Air Exhaust.
Figure 5-6 Air Flow Path of the LOGIQ E10

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
