DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 348 Section 8-11 - Front End Acquisition / Card Cage parts replacement
8-11-21 Cable Holders - ECB, Main Power Supply and Rear I/O replacement
NOTE: If a Cable is being replaced, perform all of the Functional Checks for that component
replacment.
Table 8-362 Manpower / Time and Tools
Manpower /
Time
Tools / PPE
One person /
45 minutes
Refer to: 8-2-5 "Tools needed for servicing the LOGIQ E10" on page 8-6 /
8-2-6 "PPE Required During Service" on page 8-6.
Table 8-363 Preparations and Preparation Links
Preparations - you must perform the following steps
WARNIN
WARNIN

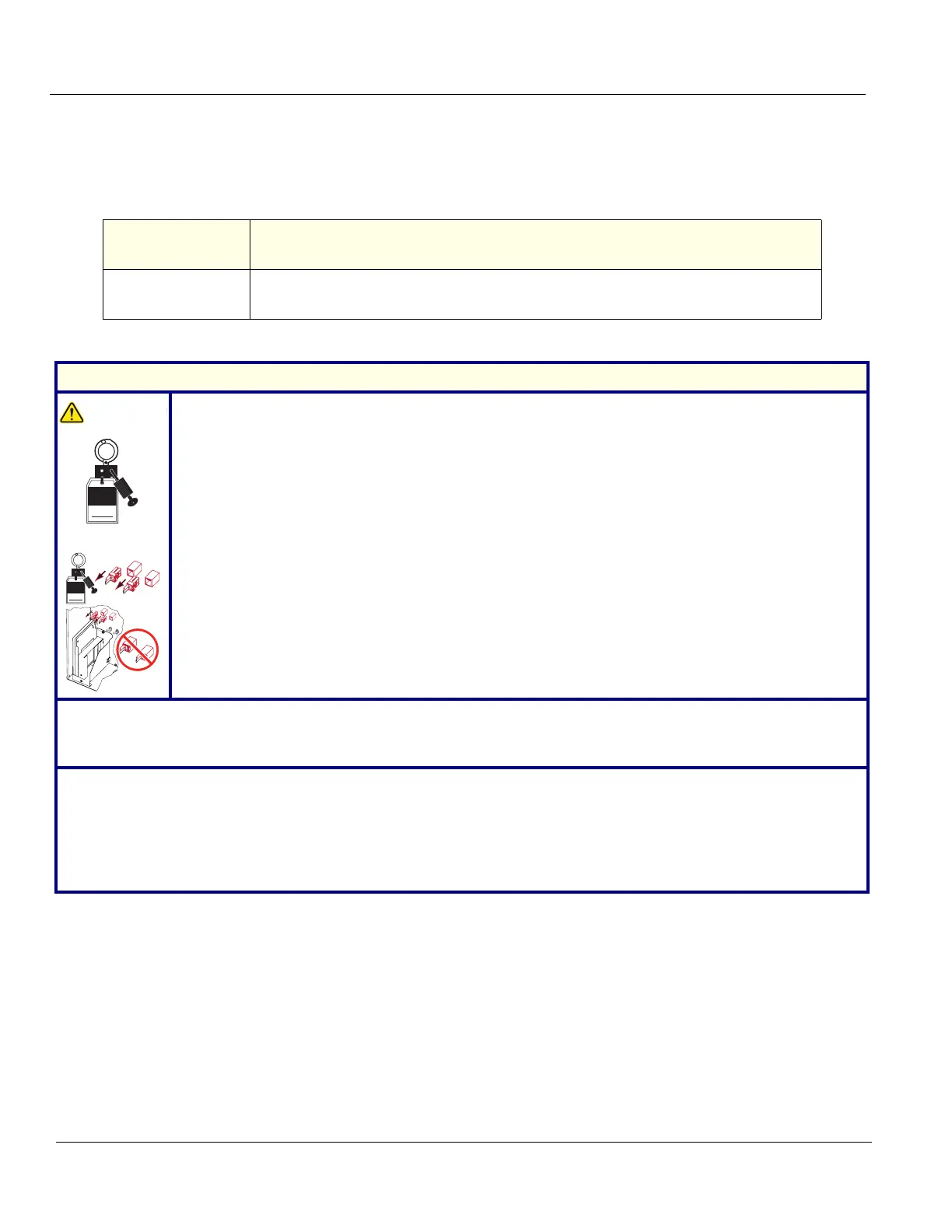

Energy Control and Power Lockout for LOGIQ E10:
When servicing parts of the Ultrasound System where there is exposure to voltage greater than 30
Volts:
1. TURN OFF THE SCANNER.
2. UNPLUG THE SYSTEM.
3. MAINTAIN CONTROL OF THE SYSTEM POWER PLUG.
4. WAIT FOR AT LEAST 20 SECONDS FOR CAPACITORS TO DISCHARGE AND THE ON/OFF
BUTTON (WHITE LIGHT ON THE OP PANEL) TO TURN OFF, AS THERE ARE NO TEST POINTS
TO VERIFY ISOLATION.
5. REMOVE THE BATTERY COVER AND DISCONNECT THE POWER CABLES J10 and J11 (black
and red) FROM THE BACKPLANE. See: 8-2-2 "Warnings" on page 8-3 and 8-11-15 "Rear I/O
replacement" on page 8-327.
Beware that the Main Power Supply, the Batteries, Power Module, ECB Shear Wave Capacitor Pack
may be energized, even if the power is turned OFF if the cord is still plugged into the AC Outlet.
1. Power down the system.
2. Disconnect the mains power cable from the wall outlet and from the MPS, and all Probes and External I/O Cabling.
3. Remove the Side Covers
, the Battery Cover, the Mains Cable Hook, the Rear Cover and the Main Power Supply.
Preparation Links (if you need more information):
•
4-2-4 "Power SHUT DOWN" on page 4-9.
• 8-6-3 "Side Cover(s)/Side Air Intake (Filter) inspection / replacement" on page 8-33.
• 8-6-6 "Mains Cable Hook replacement" on page 8-43.
• 8-6-7 "Rear Cover/Air Exhaust replacement" on page 8-45.
• 8-12-2 "MPS replacement" on page 8-369.
Signed
Date
TAG
&
LOCKOUT
J10
J11
J10
J11
Sig n e d
Date
TAG
&
LOCKOUT
To Next Page
