GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 43
8-6-6 Mains Cable Hook replacement
Mains Cable Hook replacement
Table 8-36 Manpower / Time and Tools
Manpower /
Time
Tools / PPE
One person /
15 minutes
Refer to: 8-2-5 "Tools needed for servicing the LOGIQ E10" on page 8-6 /
8-2-6 "PPE Required During Service" on page 8-6.
Table 8-37 Preparations and Preparation Link
Preparations - you must perform the following steps
1. Power down the system.
2. Disconnect the mains power cable from the wall outlet.
Preparation Link (if you need more information):
4-2-4 "Power SHUT DOWN" on page 4-9.

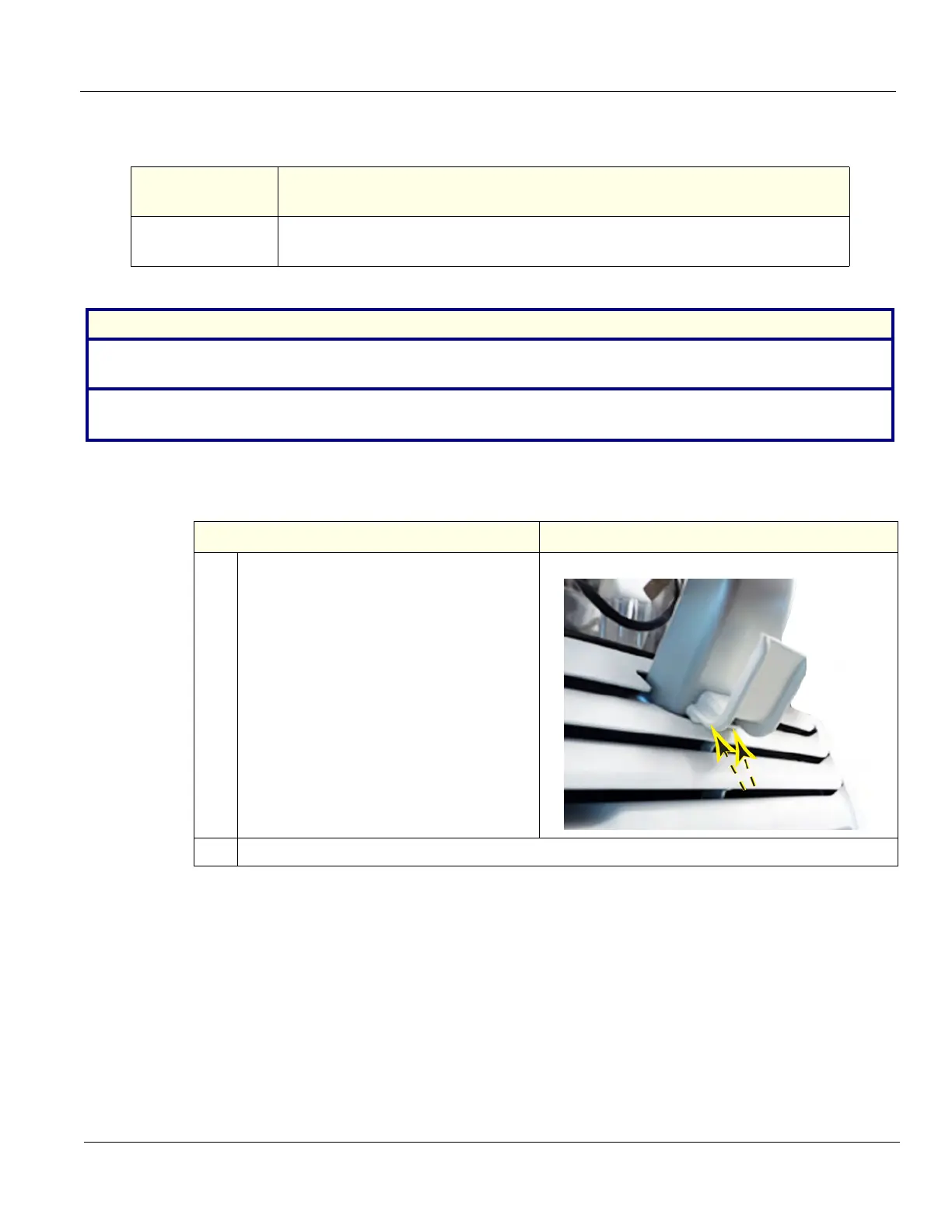

Table 8-38 Mains Cable Hook replacement
Steps
Corresponding Graphic
1.
Using a 5mm hex wrench, remove the two
screws securing the Hook to the handle.
2. Install replacement hook and re-install screws. Torque: 9.0 Nm (6.6 lbf-ft {79.2 lbf-in}).
