DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
9 - 16 Section 9-8 - XYZ Mechanism parts
Section 9-8
XYZ Mechanism parts

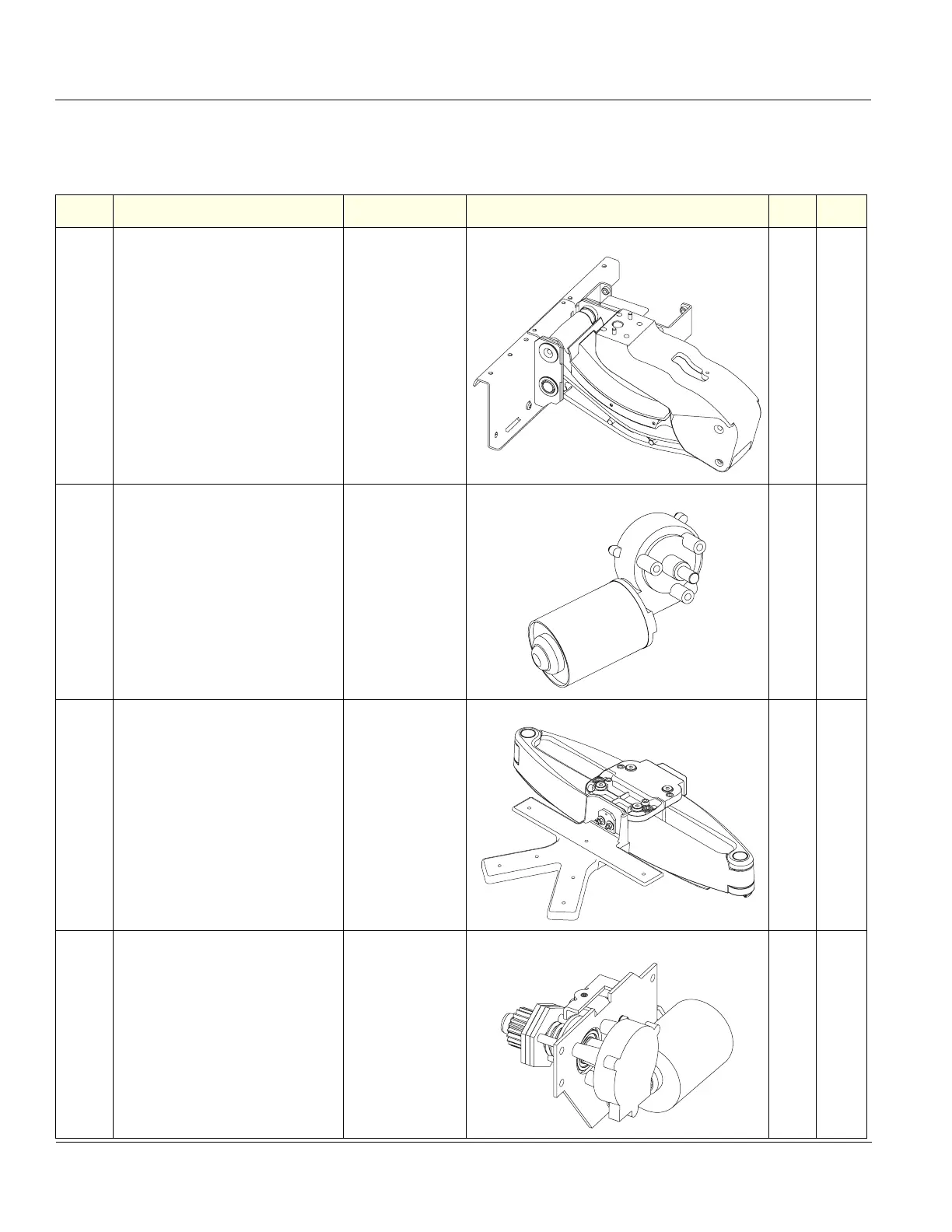

Table 9-7 XYZ Mechanism parts
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
Z-Mechanism Assembly GA200039-2
Includes Drive Gear Assembly GA200750
1Y
2.
Z-Mechanism Motor GA200034 1 Y
3.
XY Mechanism GC200461-2
4.
Drive Gear Assembly GA200750
Includes Z-Mechanism Motor GA200034
1Y
