DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 3 LOGIQ E10 Setup 3 - 19
3-4-5 Connections on the Patient I/O panel
Connect ECG
Refer to “Patient Cardiac and ECG Connections” in Chapter 3 of the LOGIQ E10 Basic User Manual for
more information.
3-4-6 Connecting Probes
Probes can be connected at any time, whether the LOGIQ E10 is on or off.
LOGIQ E10s have one type of probe ports: four DLP probe ports (Figure 3-7).
To connect a probe:
NOTE: It is not necessary to turn OFF power to connect or disconnect a probe. However, it is a good
idea to select a different probe or to freeze the image when removing a probe to avoid
disconnecting a live probe.
1.) Before connecting the probe:
a.) Perform a visual check of the probe and LOGIQ E10 sockets.
b.) Remove any dust or foam rests from the probe.
c.) Verify the probe and the probe cable for any visual damage.
2.) Hold the probe connector vertically with the cable pointing upward.
3.) Turn the connector locking handle counter-clockwise to the horizontal position.
4.) Align the connector with the probe port and carefully push into place.
5.) Turn the locking handle clockwise to the full vertical position to lock in place.
6.) Position the probe cable so that it is not resting on the floor.

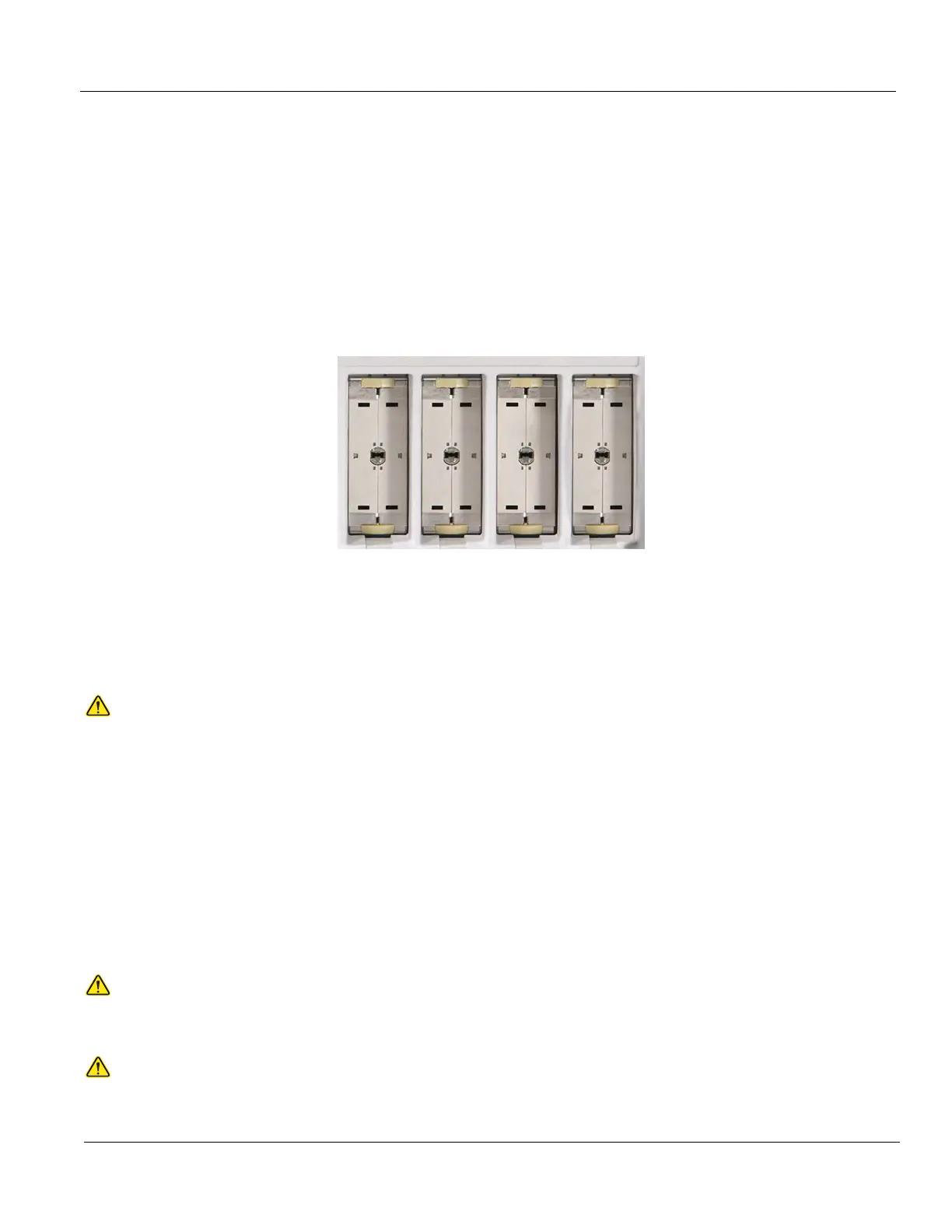

Figure 3-7 Probe connectors, four DLP probe ports
CAUTION
DO NOT CONNECT A PROBE WHILE THE LOGIQ E10 IS POWERING UP.
CAUTION
DO NOT ALLOW THE PROBE HEAD TO HANG FREELY. EXCESSIVE IMPACT TO THE PROBE
WILL RESULT IN IRREPARABLE DAMAGE.
CAUTION
KEEP THE PROBE CABLES AWAY FROM THE WHEELS.
DO NOT BEND THE PROBE CABLES.
DO NOT CROSS CABLES BETWEEN PROBES.
