GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 251

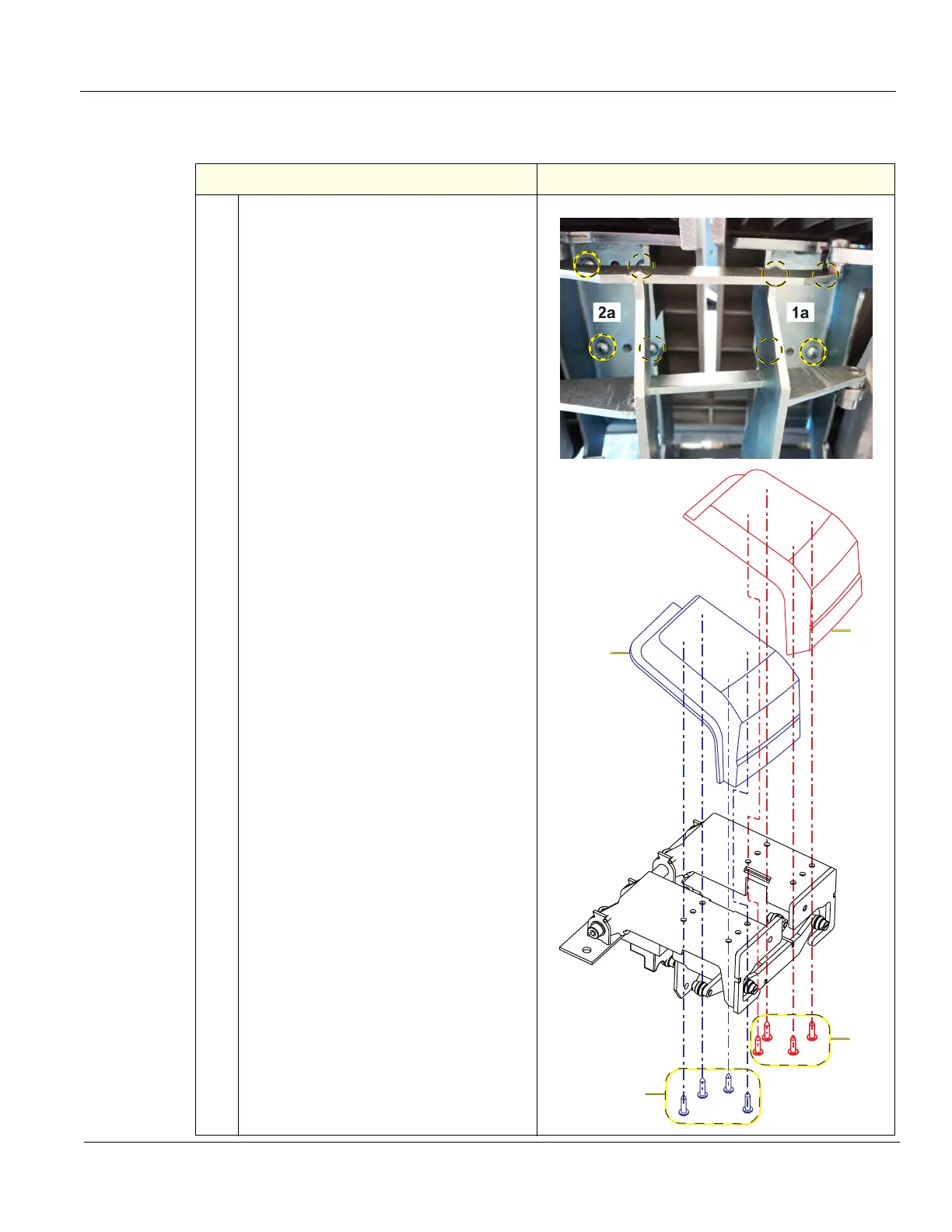

Pedal Mechanism Covers replacement
Table 8-272 Pedal Mechanism Covers replacement
Steps Corresponding Graphic
1.
Place a mirror under the Pedal Mechanism
to locate the Phillips screws securing the
Pedal Mechanism Covers.
Four screws (circled) and identified (1)
secure the Parking Brake Pedal Cover (1a)
and four screws (circled) and identified (2)
secure the and Swivel Lock Cover (2a).
Remove damaged cover(s) and re-install
replacement cover(s).
HAND TIGHTEN.
These screws are screwed into plastic. Use
care during installation, DO NOT
overtighten.
NOTE: If you suspect the Cover not being
replaced is damaged from wear and tear or
age, replace both.
2
1
1a
2a

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
