DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 4 Functional Checks 4 - 7
Connect AC (mains) Power to the LOGIQ E10
Connecting AC Power to the LOGIQ E10 Ultrasound system involves preliminary checks of the power
cord, voltage level and compliance with electrical safety requirements.
NOTE: The LOGIQ E10 will function on Voltages from 100-240 Volts and 50 or 60 Hz. However, if using
220 volt power, then a center tapped power source is required.
1.) Ensure that the wall outlet is of appropriate type, and that the Circuit Breaker is turned off.
2.) Uncoil the power cable, allowing sufficient slack so that the Ultrasound system can be moved
slightly.
3.) Verify that the power cable is without any visible scratches or any sign of damage.
4.) Verify that the on-site mains voltage is within the limits indicated on the rating label near the Circuit
Breaker on the rear of the Ultrasound system.
5.) Connect the Power Cable’s female plug to the Power Inlet at the rear of the Ultrasound system.
6.) Lock the plug in position with the Retaining Clamp (ACC Clamp).
7.) Verify that the Mains Power Circuit Breaker is in OFF position, if not, switch it OFF.
8.) Connect the other end Power Cable (male plug) to a hospital grade mains power outlet with the
proper rated voltage, and the Ultrasound system is ready for Power ON/Boot Up.

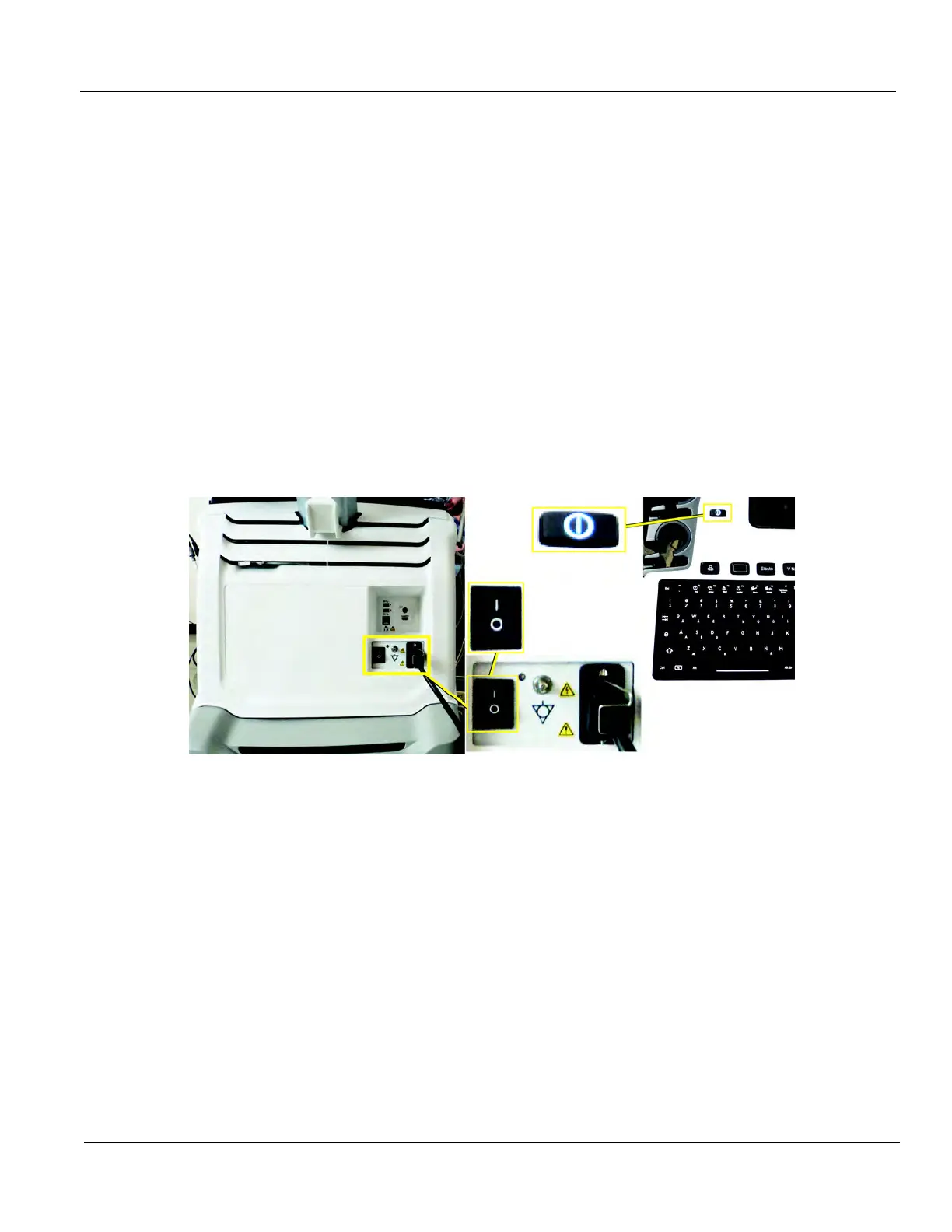

Figure 4-1 The Circuit Breaker and ON/OFF button
