GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 7 Diagnostics/Troubleshooting 7 - 15
System Information
System Information displays general information about the LOGIQ E10. When the LOGIQ E10 has
been successfully configured with the back office, these elements will have the corresponding values:
• Agent Registered will be Yes
• Agent Quarantine will be No
• Agent CRM Verified will be Yes
The information on System Information is available to all service class licenses.
To access System Information, navigate to Utility > Service > Home.

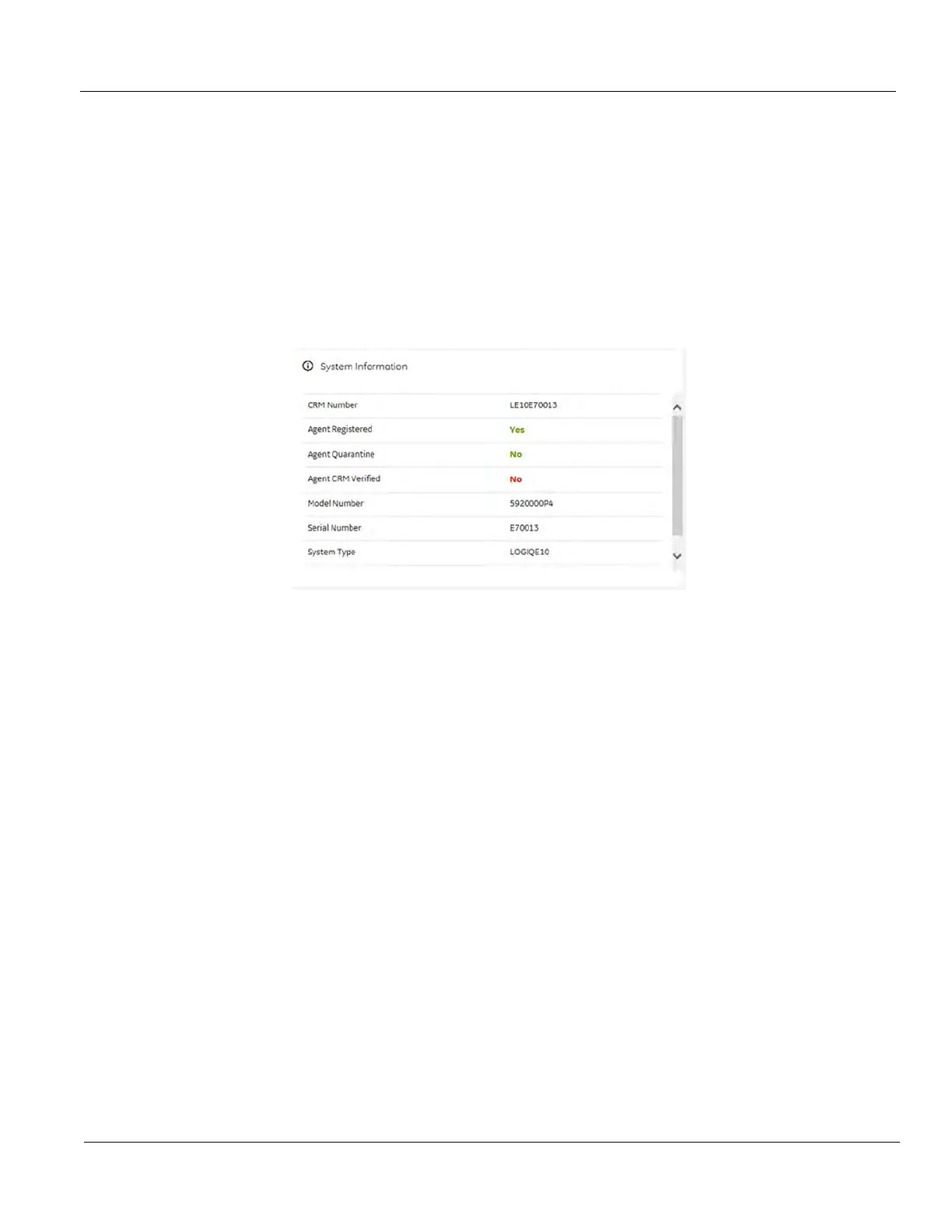

Figure 7-8 System Information

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
