GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 107

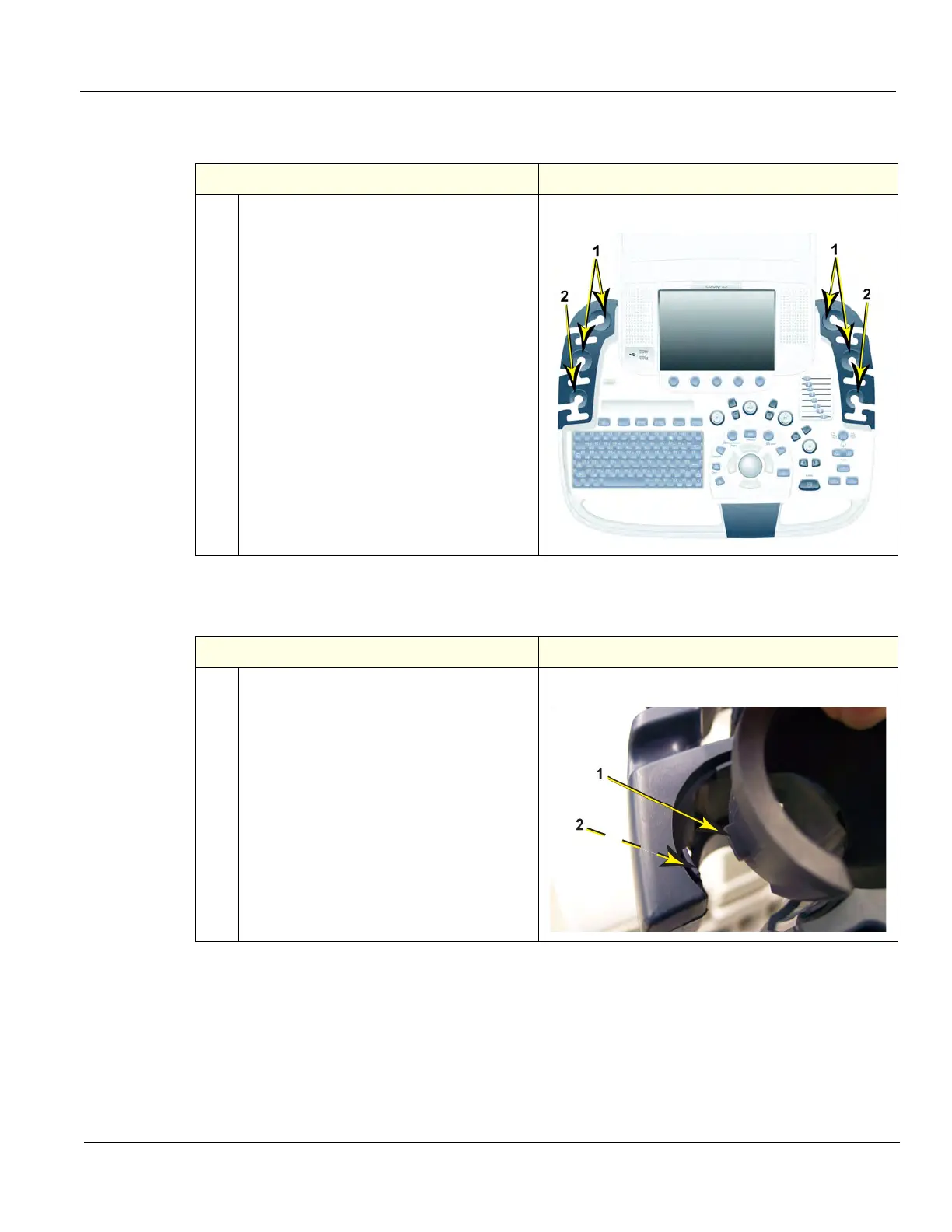

Probe Holder Insert removal
Probe Holder Insert installation
Table 8-118 Probe Holder Insert removal
Steps Corresponding Graphic
1. Carefully pull the flexible Probe Holder
Insert out of the Lower UI Frame. Large (1)
and small (2) soft, Probe Holder Inserts.
Probe Holder placement
Table 8-119 Probe Holder Insert installation
Steps Corresponding Graphic
1. Install the flexible Probe Holder Insert into
the Lower UI Frame. Be sure the hooks (1)
and tabs (2) fit properly and the Probe
Holder fits snugly.
Probe Holder placement
