GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 167
Right Handle Cover removal / installation

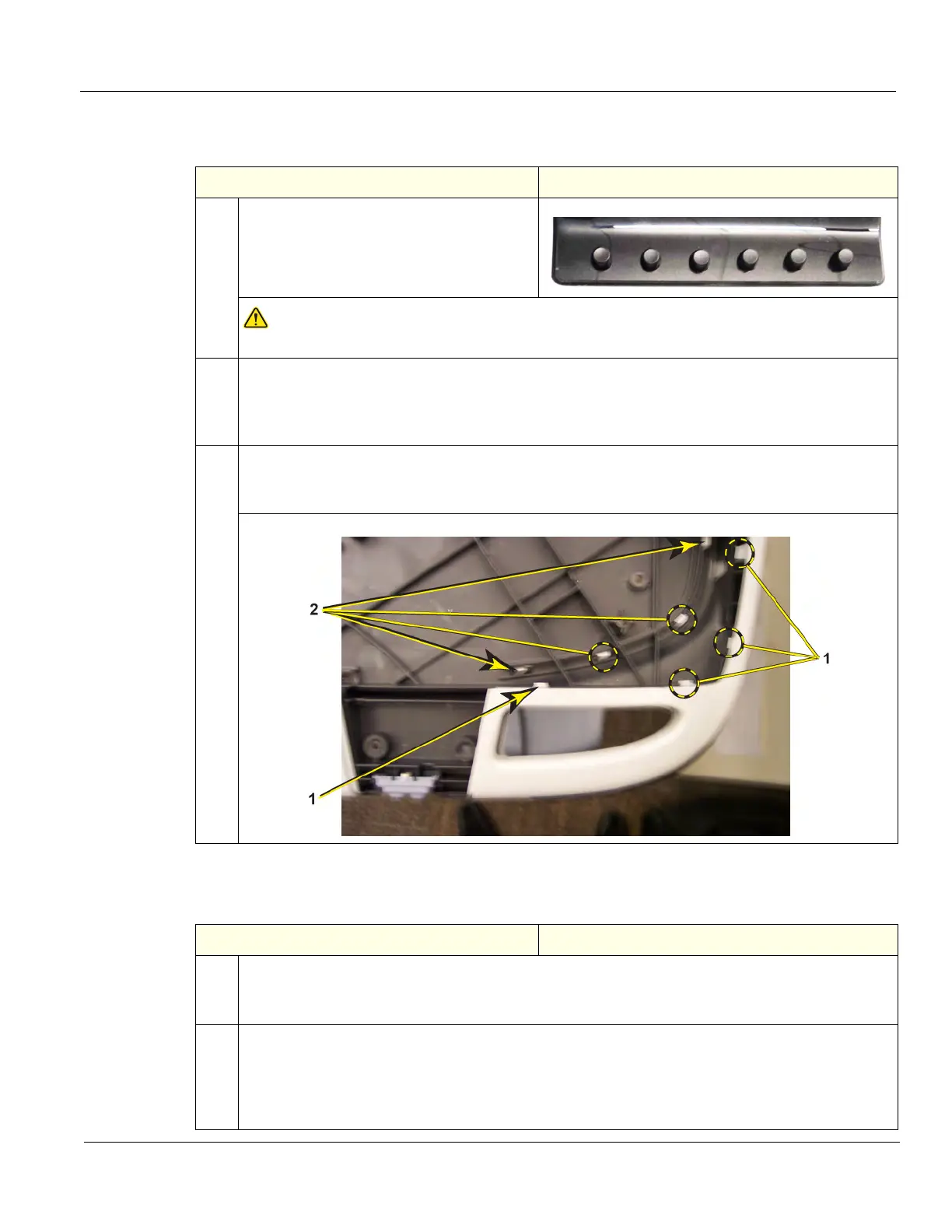

Table 8-196 Right Handle Cover removal
Steps Corresponding Graphic
1. Remove the six OP Knobs.
NOTICE
Failure to remove the six OP Knobs first, could cause damage to the knob shafts.
2. Remove the:
• Upper OP.
• Lower OP.
• Palm Rest.
3. Release:
• the lock mechanisms (1) from the top Right Handle Cover.
• the lock mechanisms (2) from the bottom Right Handle Cover.
Table 8-197 Right Handle Cover installation
Steps Corresponding Graphic
1. Position:
• bottom Right Handle Cover and secure with locking mechanisms.
• top Right Handle Cover and secure with locking mechanisms.
2. Re-install:
• Palm Rest.
• Lower OP.
• Upper OP.
• all Covers removed.
