GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 256 Section 8-11 - Front End Acquisition / Card Cage parts replacement
Front End Card Cage Cover removal
NOTE: If the V Nav Option is present, the Hi-Pass connection from the GRLY Board to the DriveBay2+
must be disconnected.
If the WLAN Option is present, note the orientation of the antennas, they MUST BE returned to the same
position. Reposition the antennas when removing the Cover.

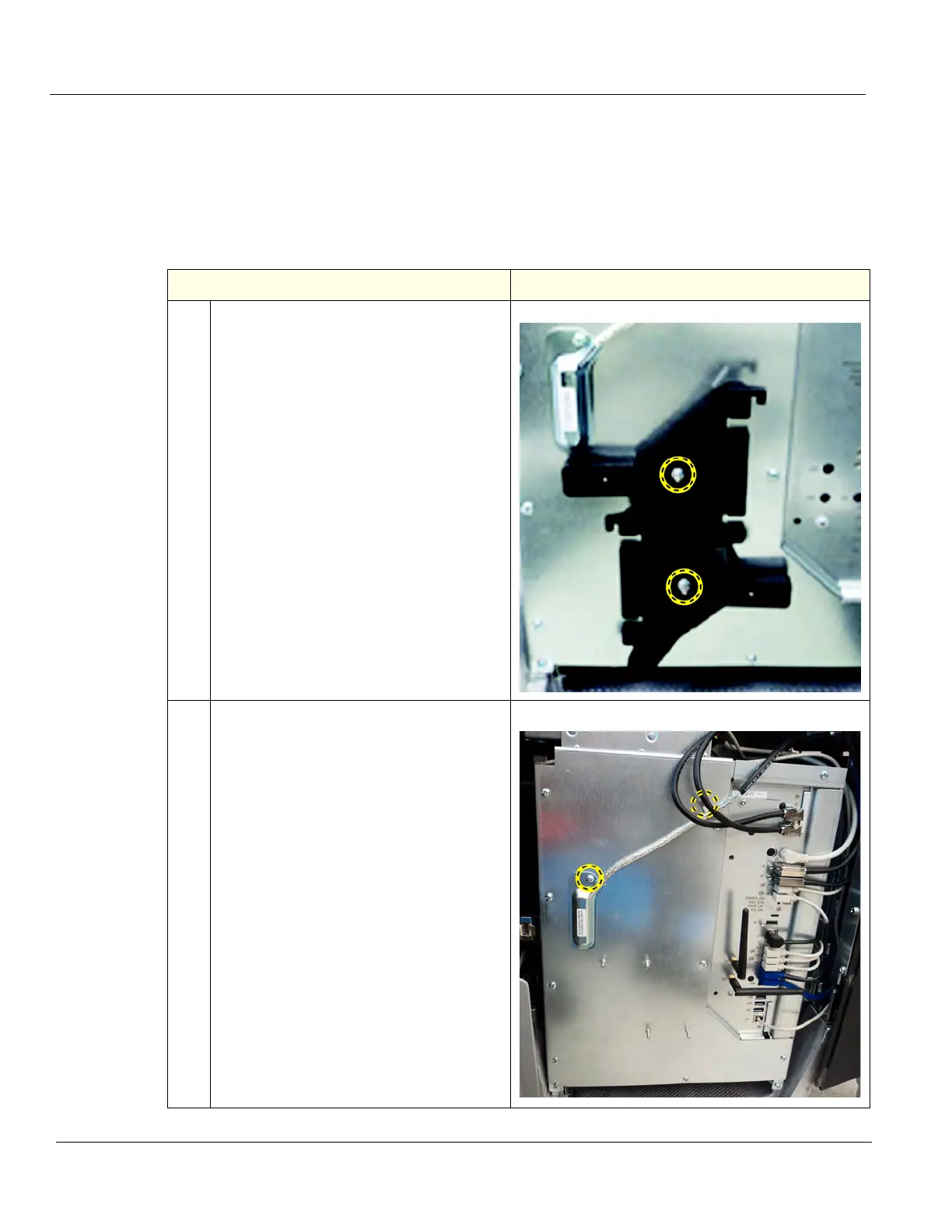

Table 8-277 Front End Card Cage Cover removal
Steps Corresponding Graphic
1.
Remove the Front Plane extraction tools,
using a 7 mm driver.
2.
If the V Nav Option is present, remove the
Hi-Pass EMI Cover by removing the screw
and the screw holding the cable P-clamp,
using a #2 Phillips screwdriver.
Disconnect the Hi-Pass cable from GRLY
Board.
Hi-Pass connection - V Nav Option
