Chapter 8 Replacement Procedures 8 - 303

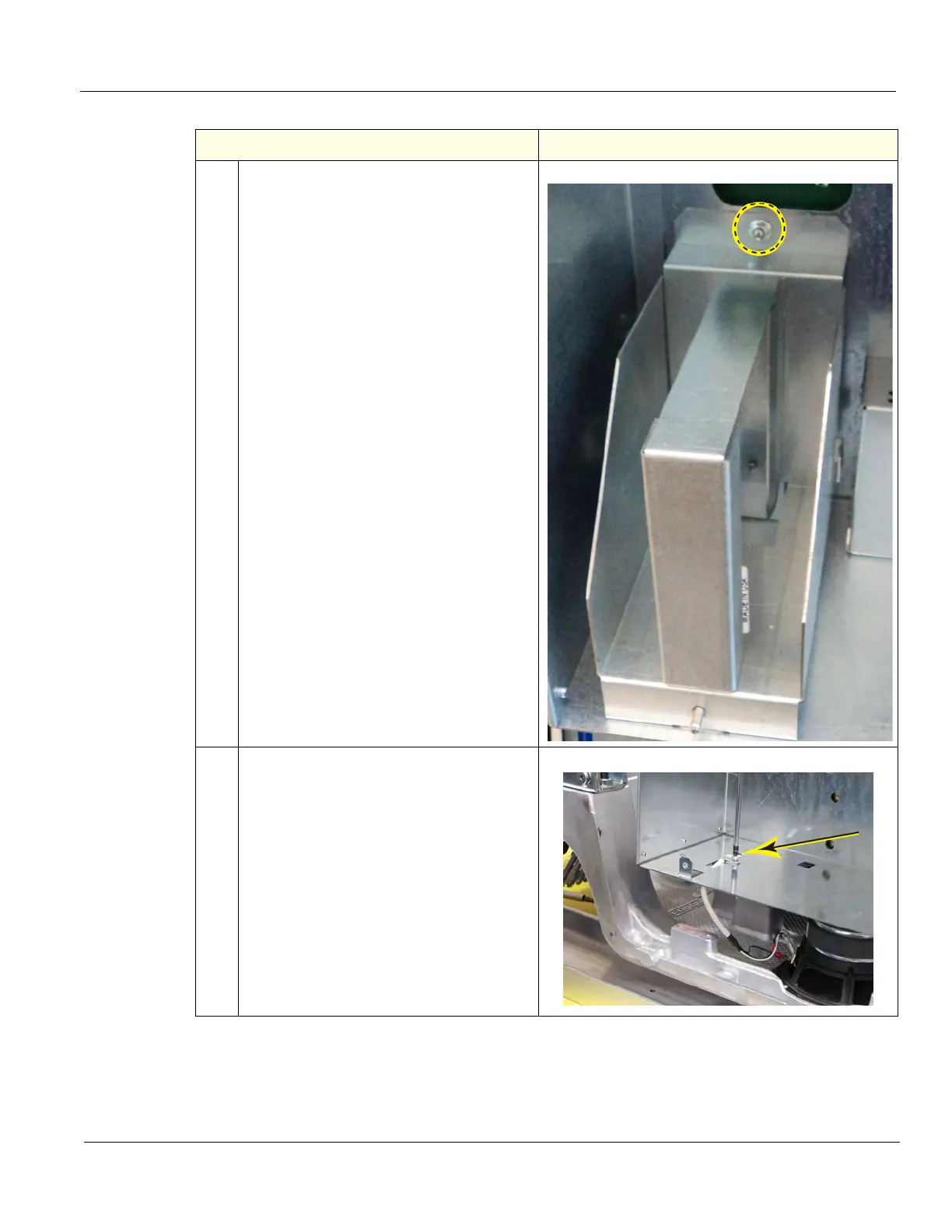

6.
Remove the flange nut securing the Battery
Bracket to the Option Bracket.
Remove the Bracket.
7.
Remove the screw securing the Subwoofer
audio cable grounding clamp to the Option
Box.
Place the cable and clamp below the
Option Box.
Table 8-329 Backplane removal
Steps Corresponding Graphic
