GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 379
Drive Bay Storage Drawer (DVD Storage) replacement

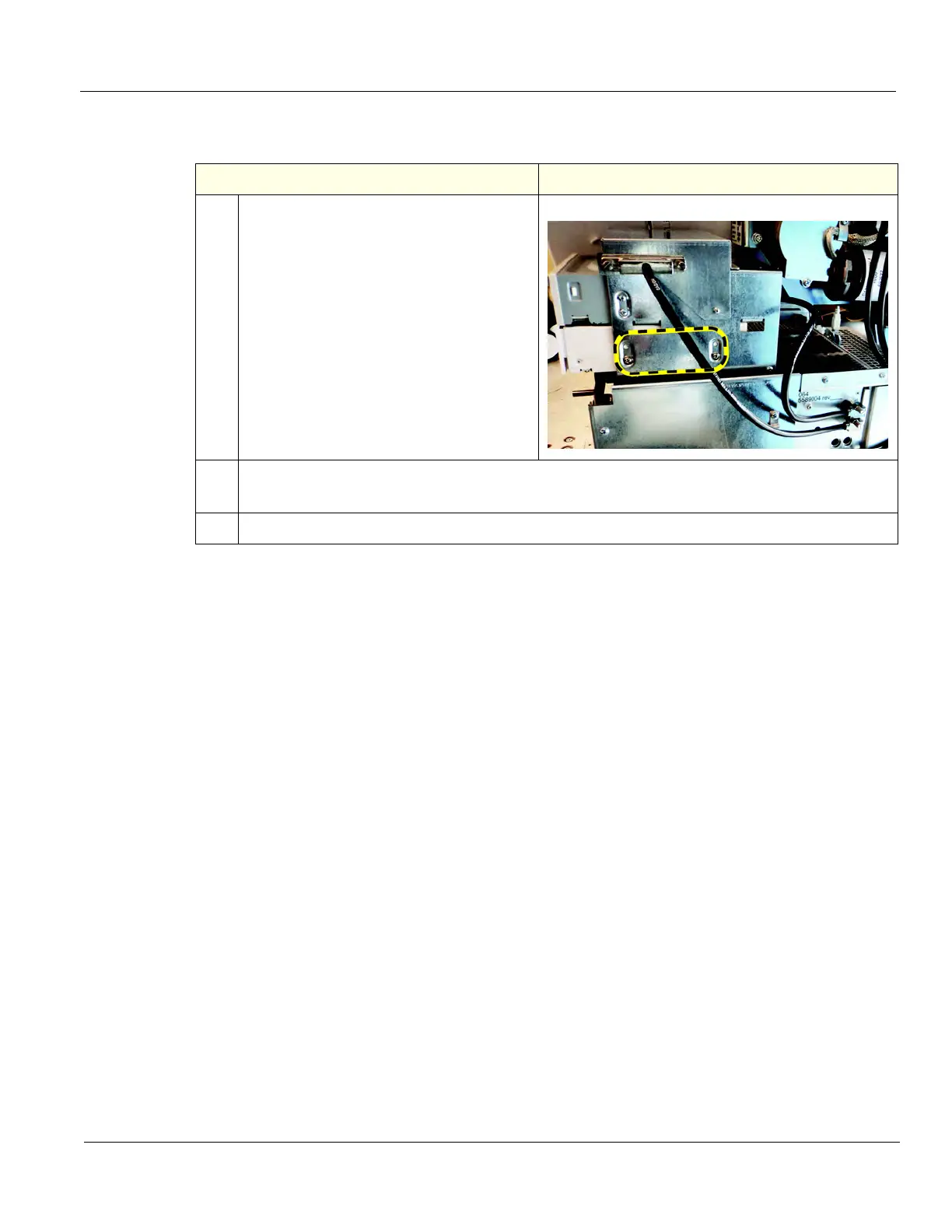

Table 8-387 Drive Bay Storage Drawer (DVD Storage) replacement
Step Corresponding Graphic
1.
Remove the screws securing the storage
drawer to the LOGIQ E10. Discard the
screws and drawer in the appropriate
manner.
2.
Slide the replacement Storage Drawer into the LOGIQ E10.
Secure the Storage Drawer with the screws supplied.
3.
Re-install all Covers removed.
