10 - 2 Section 10-1 - Overview
10-1-3 Grounding Points
There are several grounding points on the LOGIQ E10. The grounding points must be used when an
ESD is used during servicing of the LOGIQ E10.
Any unpainted or coated metal surface that is grounded to the Base Casting (chassis):
• the Card Cage
• the Frame
• the Main Power Supply
The ground stud near the Circuit breaker and ON/OFF button is one location.

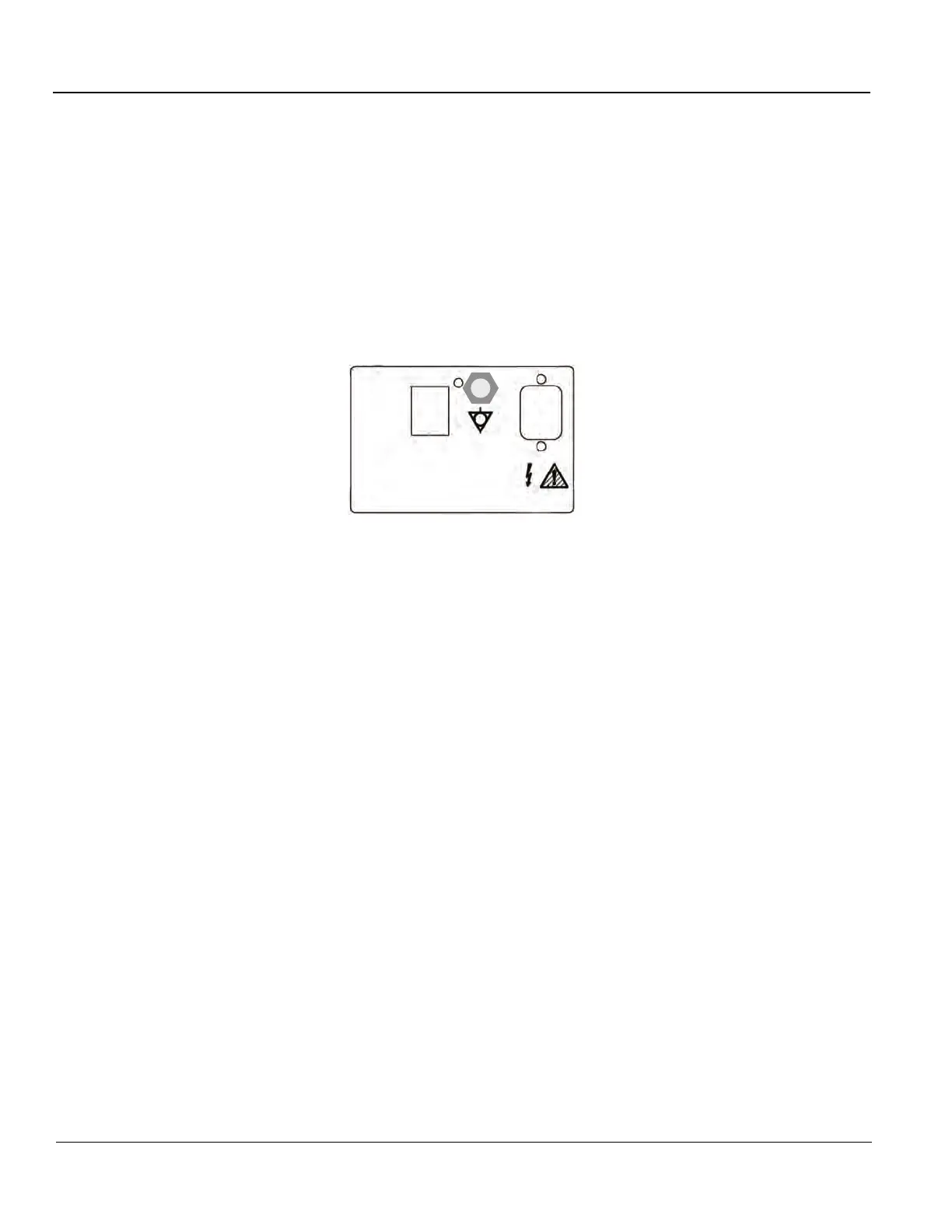

Figure 10-1 LOGIQ E10 Main Power Supply Grounding
Point
