GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 3 LOGIQ E10 Setup 3 - 5
3-3-3 Tilt indicator
Overview
Improper handling during transportation may harm the equipment inside the package even if the
package itself is undamaged.
To make it easier to detect if the handling during transportation has been improper, a tilt indicator has
been attached to the transportation box.
Position of the tilt indicator
The tilt indicator is attached to the side of the transportation box.
NOTE: Before cutting the straps, check the tilt indicator to make sure it has not been triggered. If
triggered, report it to the carrier. If not, then cut the straps around the crate.

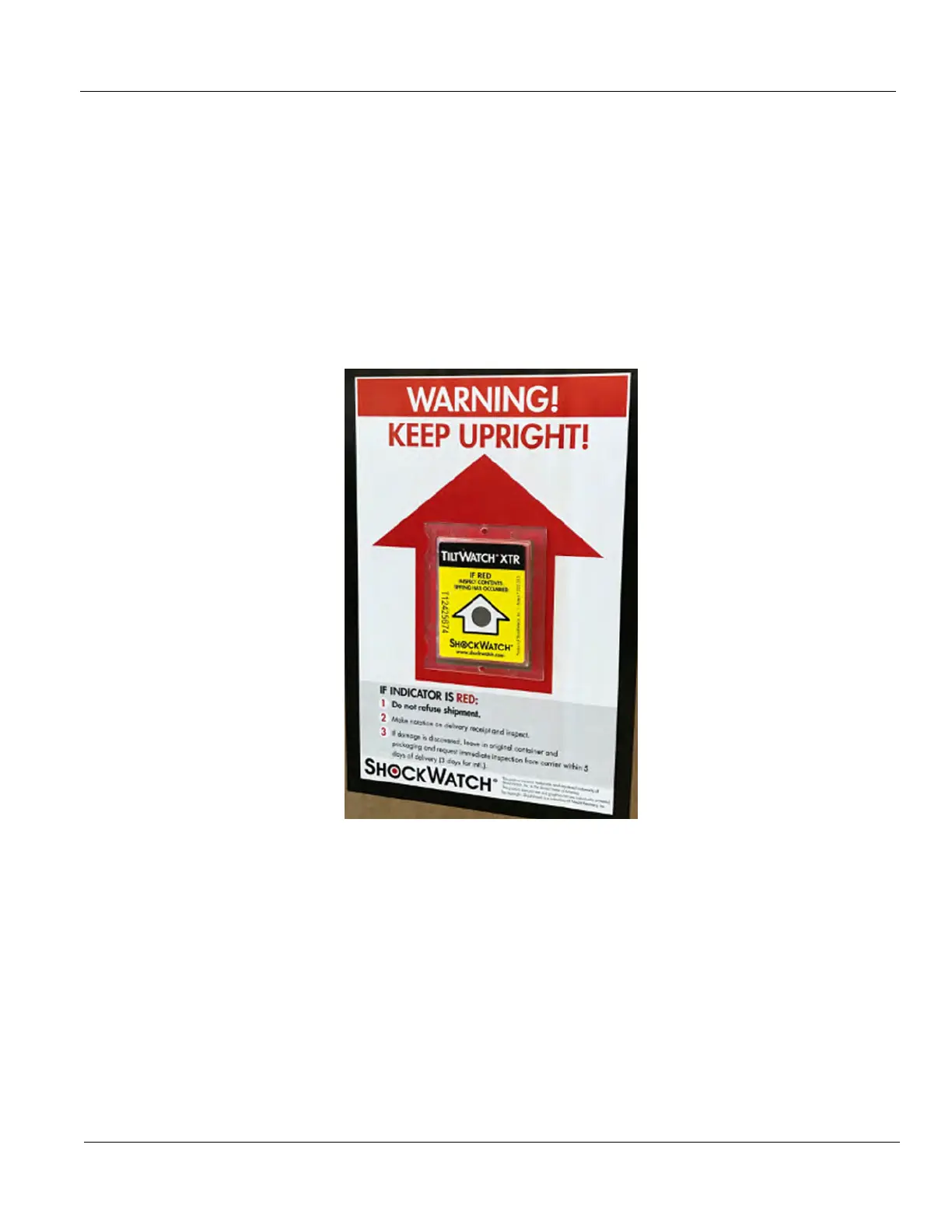

Figure 3-1 Tilt indicators

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
