Calibration instruction
Follow the instructions below to perform a calibration. The example is a scale calibration.
For OPC users, calibration can be accessed from the manual instruction dialog
by selecting the OPC component.
Note:
ActionStep
Select System:Calibrate in System Control.1

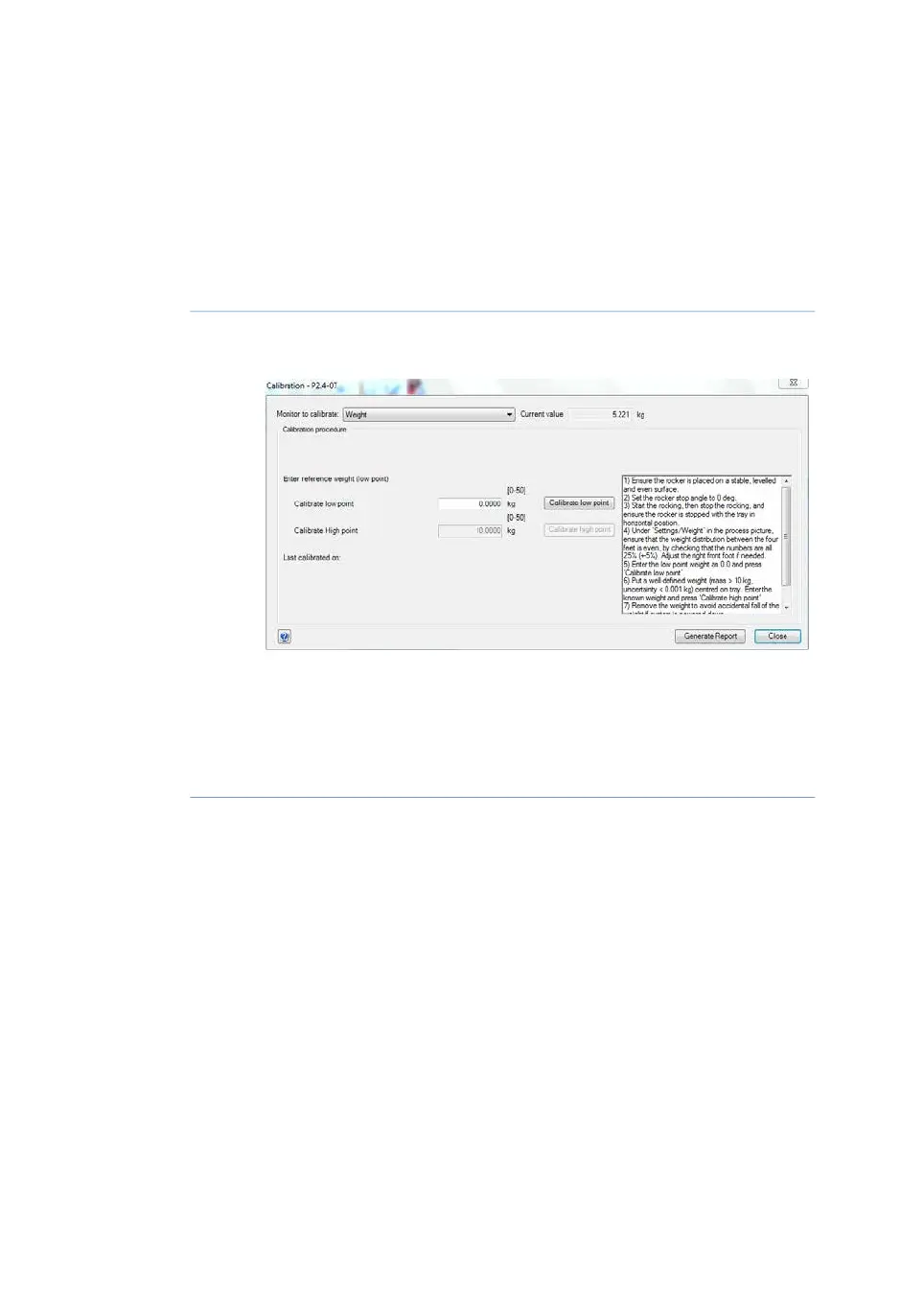

Result: The Calibration dialog opens.
Select the appropriate monitor in the Monitor to calibrate drop down menu.2
Follow the instructions in the right-hand field and enter the correct values
in the Calibration procedure field, and click Calibrate for each value.
3
Close the Calibration dialog.4
152 ReadyToProcess WAVE 25 Operating Instructions 29009597 AD
6 Maintenance
6.1 Calibration
