C-2 Series 90-30 PLC Installation and Hardware Manual – August 2002 GFK-0356Q
C
H
N
N
G
ISOLATED
RS232
A
DAPTOR
J1 J2
POWER
FUSE-1AMP
(SIDE
VIEW)
P
OWER
CORD
POWER
CORD
SWITCH
FUSE
FUSE
115VAC
230VAC
G
GE Fanuc
RS232C
RS422
RS422
(TOP VIEW)
(BACK
VIEW)

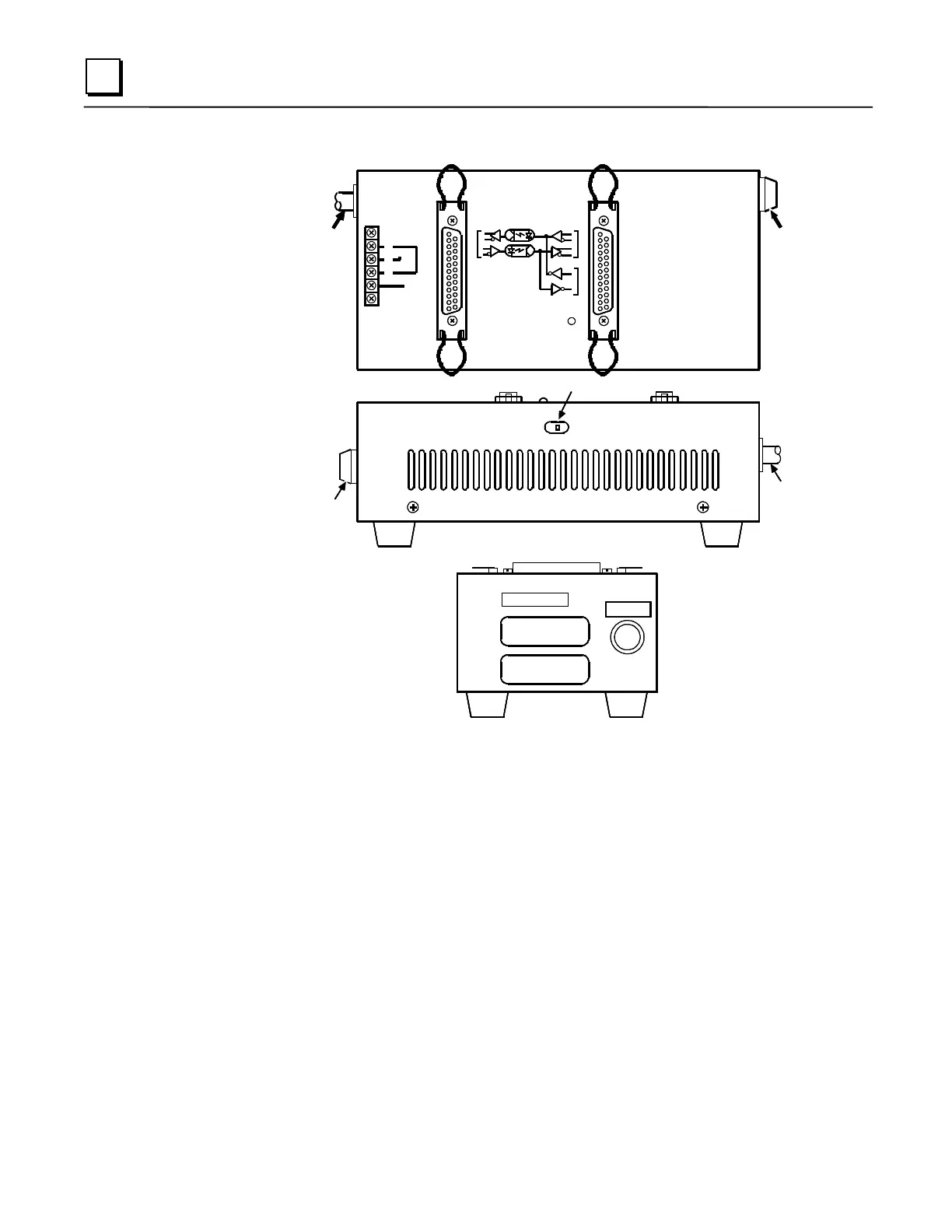

Figure C-1. Isolated/Repeater Converter
Items of interest to the user on the Isolated Repeater/Converter are described below.
 Two 25-pin female D-type connectors (Two 25-pin male, D-type connectors (solder pot), are
included for user cabling.)
 115/230 VAC power connection (internal) 4-position terminal block.
 Fused 1 Amp power protection.
 Power ON (green) indicator LED.
 Three-position toggle switch, recessed in the back of the unit, is set according to the system
configurations shown later in this appendix.
