Removing a Module’s Terminal Board
To remove a terminal board:
■ Open the plastic terminal board cover.
■ Push up on the jacking lever to release the terminal block.
JACKING
LEVER
■ Grasp pull-tab and pull it towards you until contacts have separated from module
housing and bottom pivot hook has disengaged.
PULL
a43715
TAB

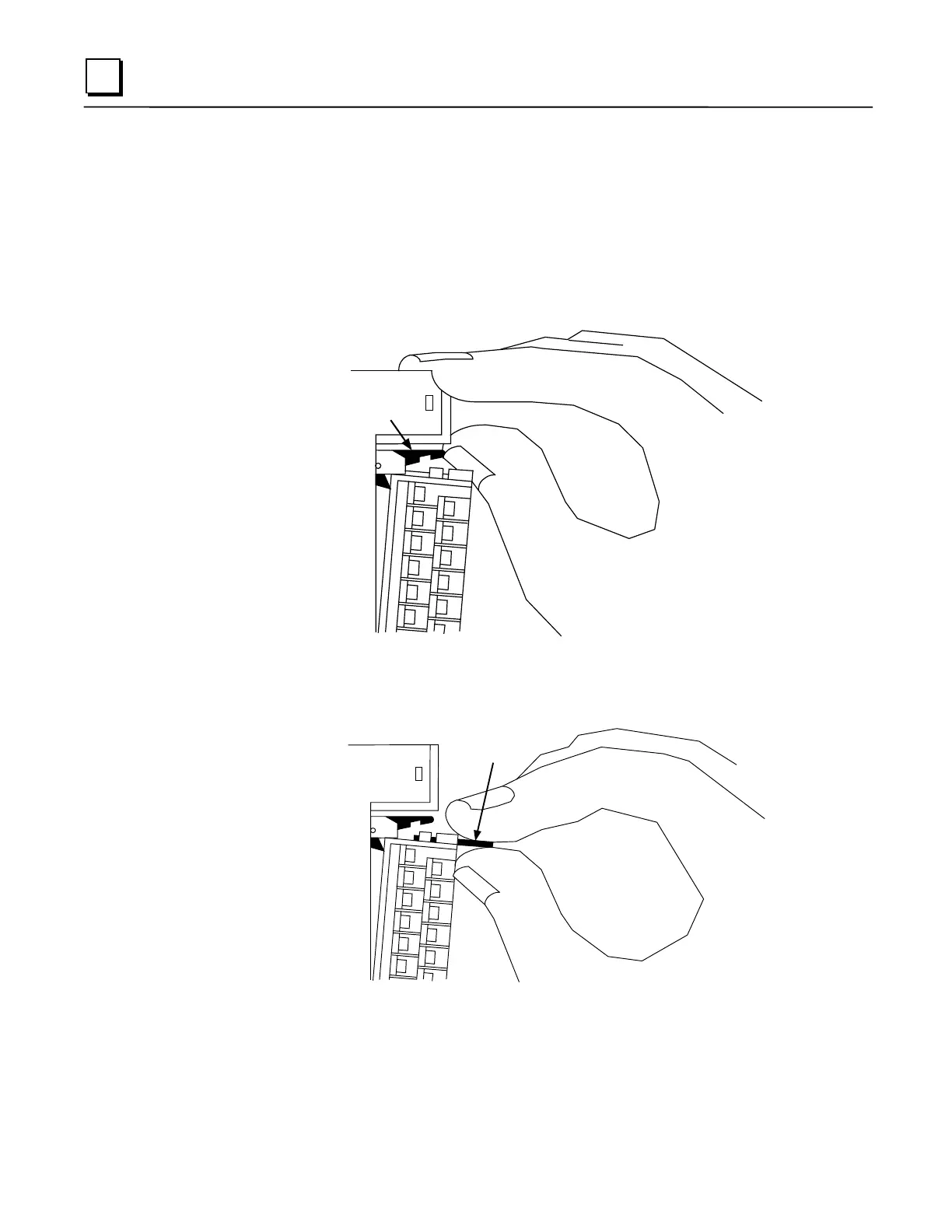

Figure 2-5. Removing a Module’s Terminal Board
