GE Series 90-30 PLC - IC693 ACC332 TBQC Terminal Block

TBQC Components
GFK-0356Q Appendix H Terminal Block Quick Connect Components H-9
H
IC693ACC332 TBQC Terminal Block
Use with the following 16-point I/O module: IC693MDL940

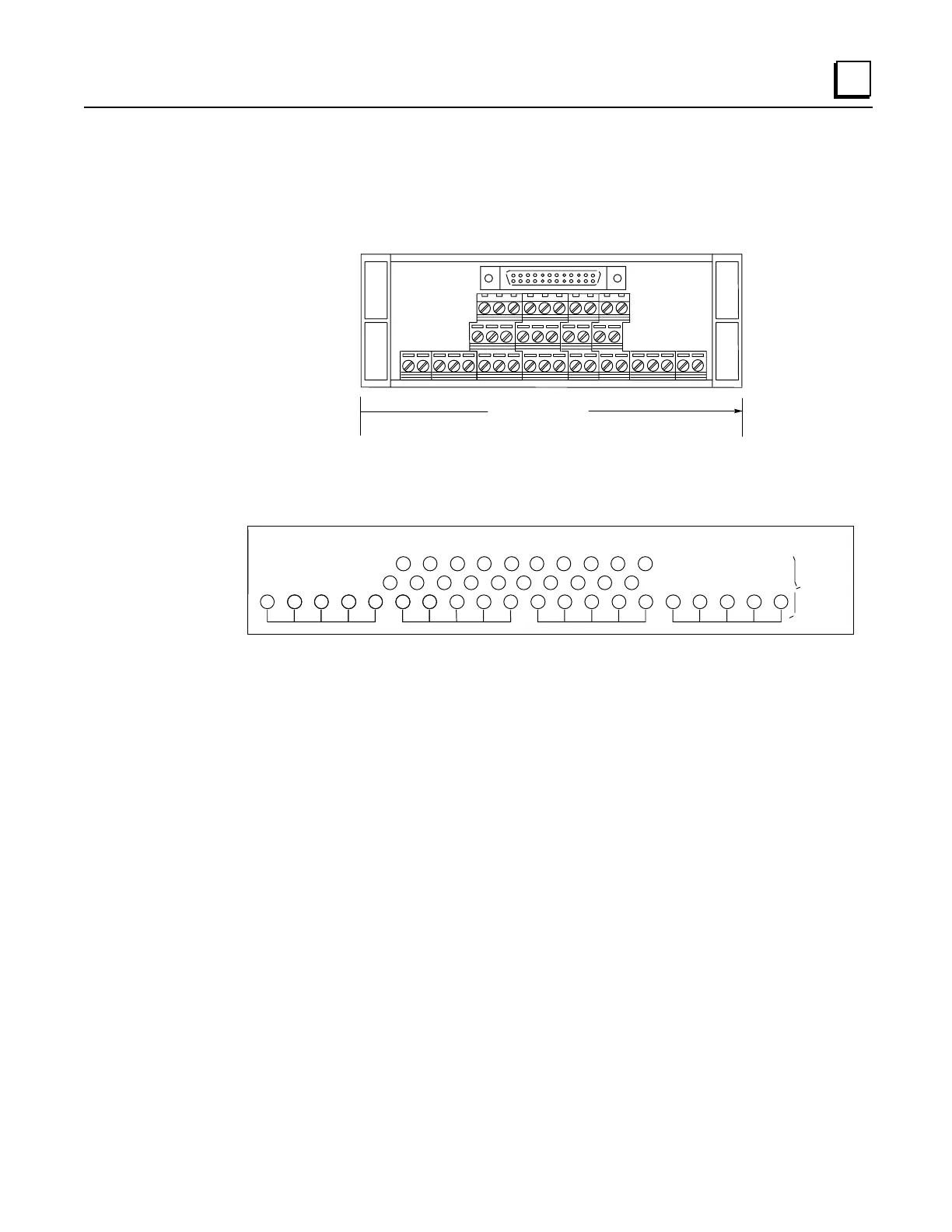

Figure H-6. IC693ACC332 TBQC Terminal Block
Note
The common row terminals (labeled with the letter C) are provided for wiring
convenience. Their use is optional. They are electrically isolated from the numbered
terminals. You may use them as is, or jumper them to a numbered terminal. Refer to
GFK-0898,
Series 90-30 PLC I/O Module Specifications Manual
for wiring diagrams of
the modules.
Mounting
These terminal blocks are mounted on a standard, user-supplied 35 mm DIN-rail.
CC
24 6 8 10 12 14 16 18 20
1 3 5 7 9 11 13 15 17 19
C C C C C C C C C C C C C C C C C C
TERMI NAL
BLOCK
a45589
19
20
1
2
(See Note 1
Below)
Maximum wire size
per terminal: one
#14 AWG (2.10 mm
2)
Width
Height (all blocks) 2.25” (57mm)
Depth (all blocks) 1.7716” (45mm)
5.04” (128mm)
