IC693ACC333 TBQC Terminal Block
Use with the following 16-point I/O module: IC693MDL340

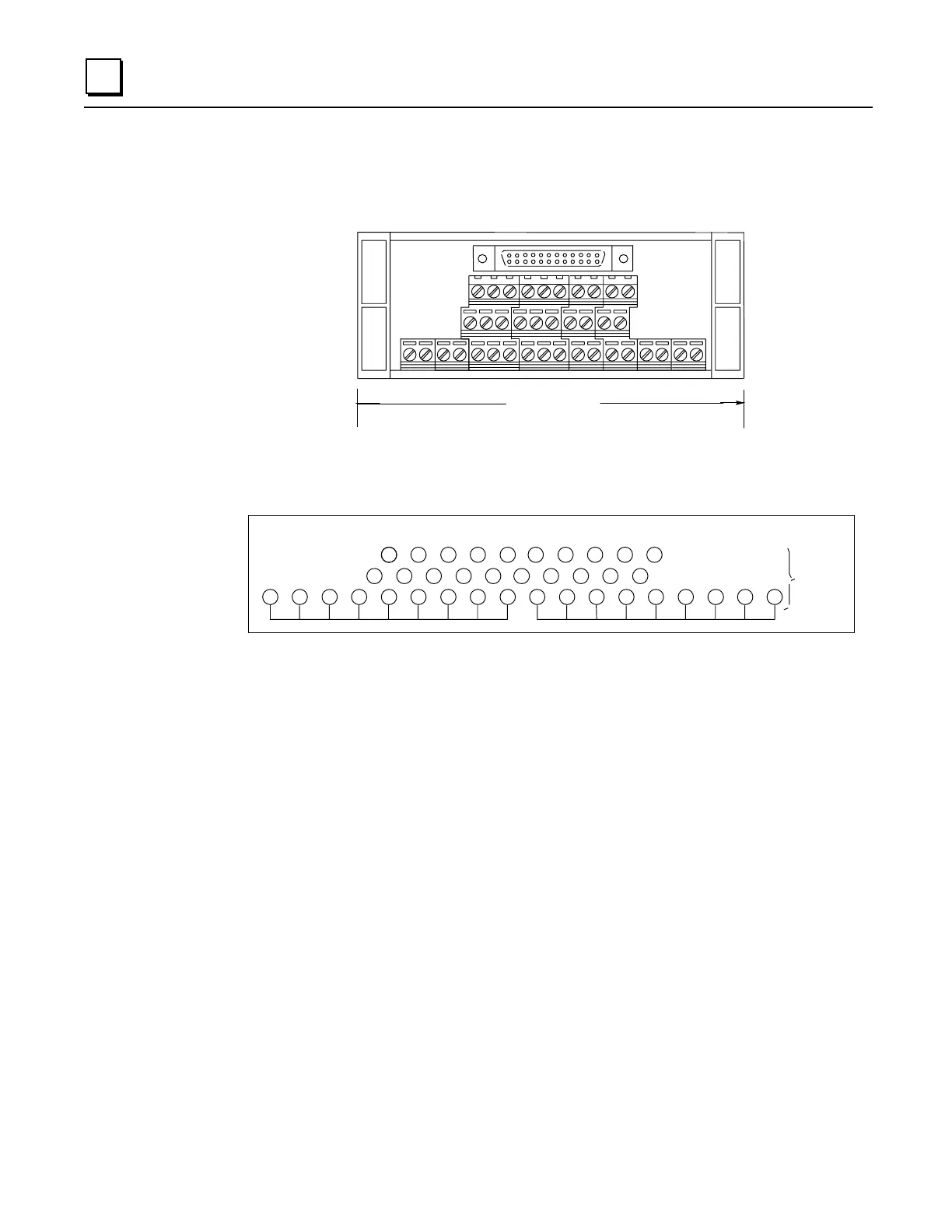

Figure H-7. IC693ACC333 TBQC Terminal Block
Note
The neutral row terminals (labeled with the letter N) are provided for wiring convenience.
Their use is optional. They are electrically isolated from the numbered terminals. You
may use them as is, or jumper them to a numbered terminal. Refer to GFK-0898,
Series
90-30 PLC I/O Module Specifications Manual
for wiring diagrams of the modules.
Mounting
These terminal blocks are mounted on a standard, user-supplied 35 mm DIN-rail.
N NN
2 4 6 8 10 12 14 16 18 20
1 3 5 7 9 11 13 15 17 19
N N N N N N N N N N N N N N N
19
20
1
2
a45590
(See Note 1
Below)
Maximum wire size
per terminal: one
#14 AWG (2.10 mm
2)
Width
Height (all blocks) 2.25” (57mm)
Depth (all blocks) 1.7716” (45mm)
4.64” (117.86mm)
TERMI NAL
BLOCK
