8-54 Section 8-4 - System Modules- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
• SSD PWR cable
4.) Reconnect the supporting bracket using an appropriate Phillips screwdriver:
• Two captive screws
• Two screws at the bottom of the bracket

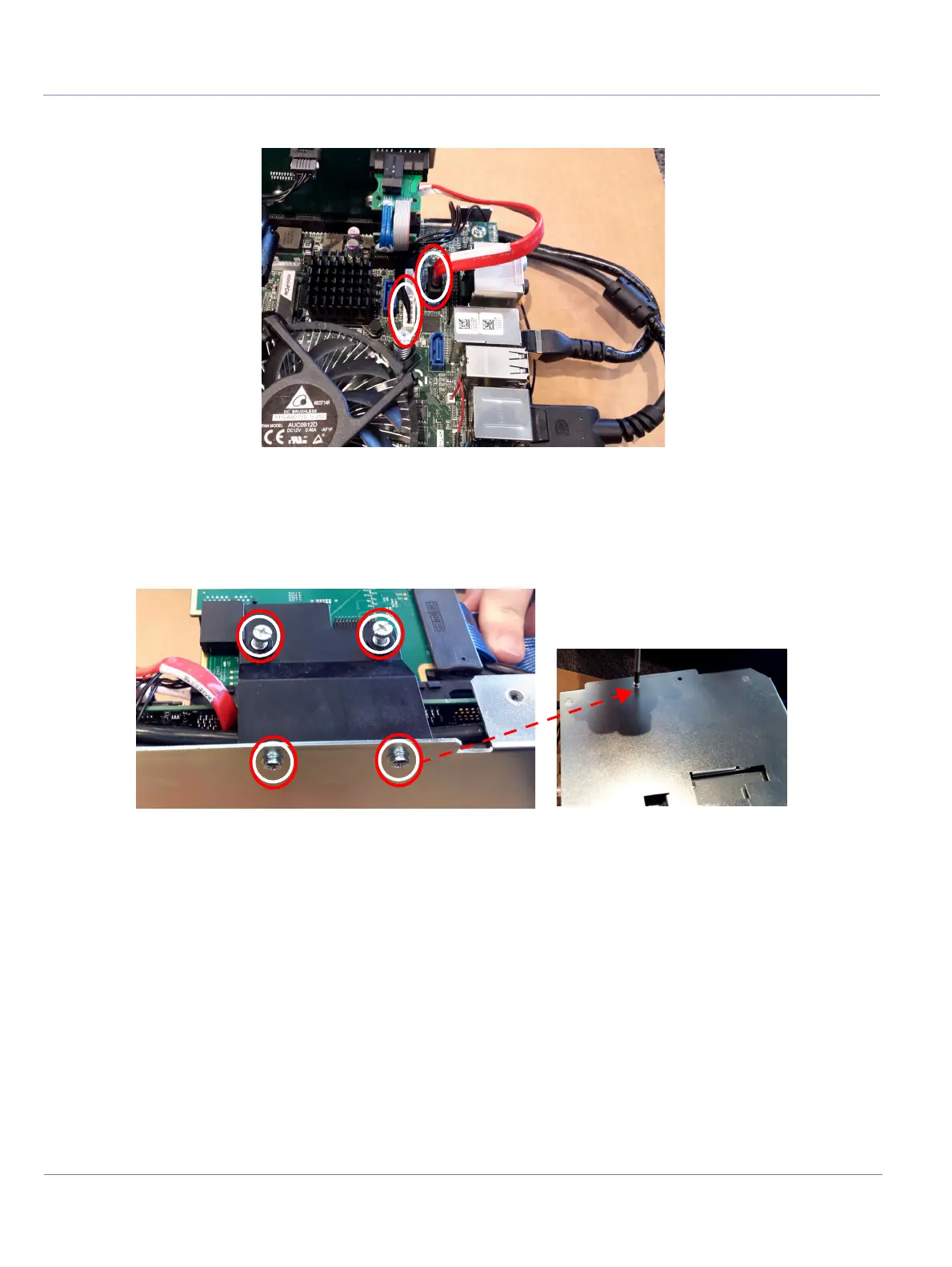

Figure 8-43 Reconnect SATA DATA and SSD PWR Cables
Figure 8-44 Reconnecting BE Supporting Bracket
