Chapter 8 - Replacement Procedures 8-129
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
3.) Route the BE to Cockpit cable trough cockpit tilt axis. For easier routing, make sure the cable is
aligned to the left.
4.) Connect the BE to Cockpit cable DP connector to the cockpit.
5.) Reconnect the ground cable.
6.) Refit the cockpit upper and then the lower covers.

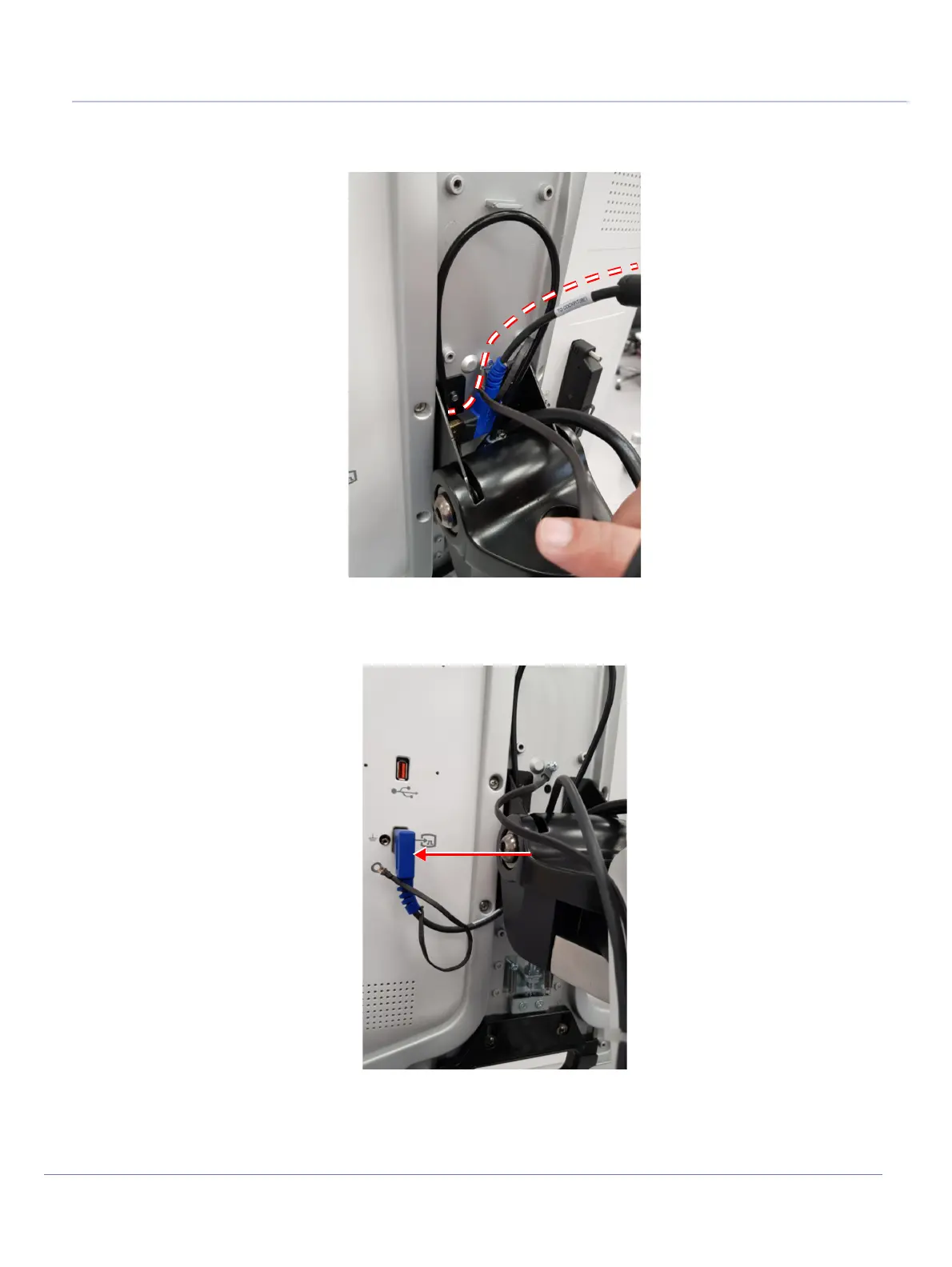

Figure 8-127 Routing BE to Cockpit Cable through Tilt Axis
Figure 8-128 Connecting BE to Cockpit Cable to the Cockpit
