3.3 Construction alternatives

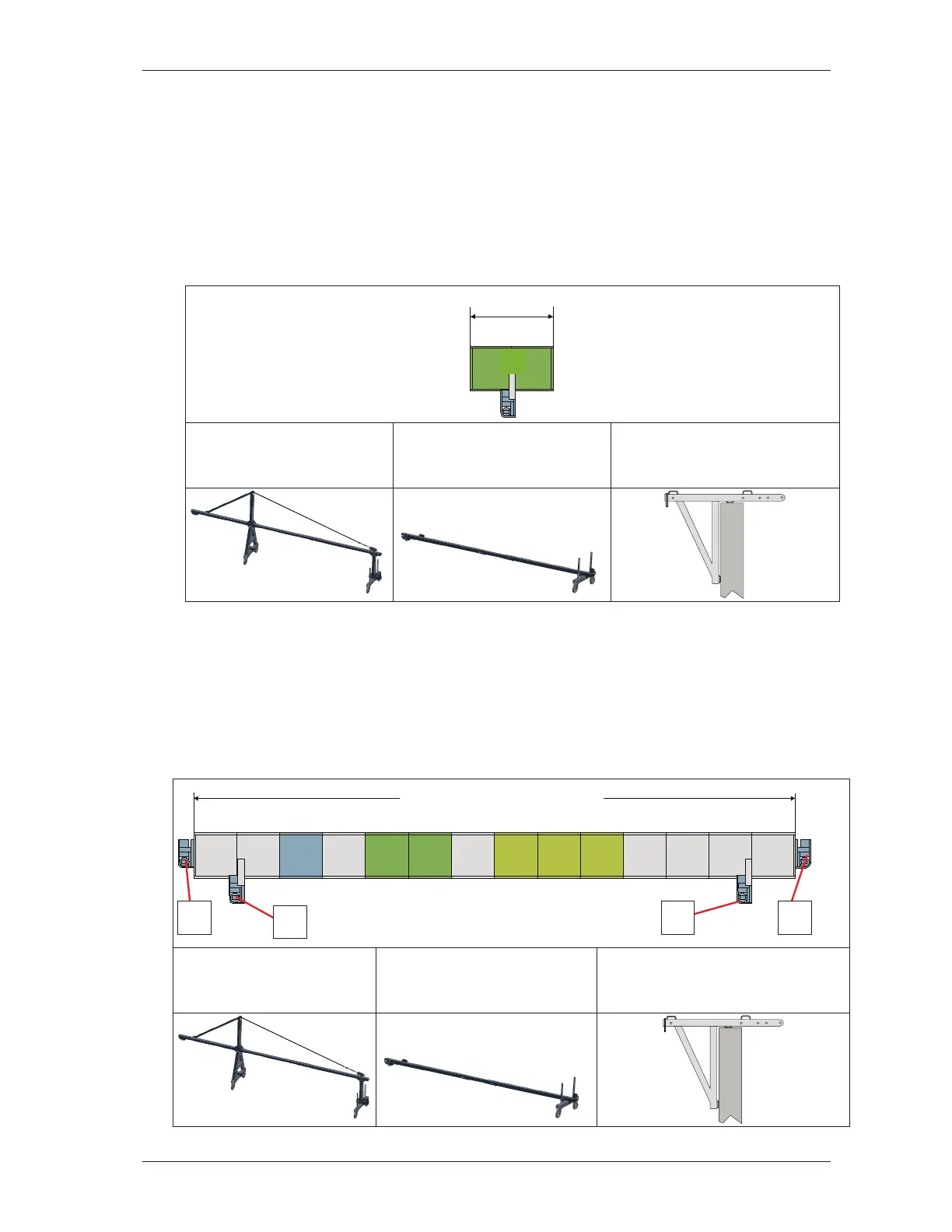

3.3.1 Straight construction of the BMU platform with 1 winch up to
a maximum of 2 m
BMU platform constructed from platform segments of 1-2 m, using one
rope winch. Winch fastened with C-clamp. Outrigger suitable for the
winch.
1 x DA 6
Outrigger for
AB 450 / 650
1 x DA 1
Outrigger for AB 450
1 x parapet bracket
for AB 450 / 650
3.3.2 Straight construction of the BMU platform with 2 winches up
to a maximum of 14 m
BMU platform constructed from platform segments of 1-3 m, using two
identical rope winches. Winches fastened at the front with C-clamps (1)
or at the end faces with winch brackets (2). Two identical outriggers
which are suitable for the winches used.
2 x DA 6
Outrigger for
AB 450 / 650
2 x DA 1
Outrigger for AB 450
2 x parapet bracket
for AB 450 / 650
max. 2 m
min. 2 m max. 14 m
1 m 2 m
3 m
1
1
2
2
