GEDA AB 650 - Mounting the Outrigger DA 1; DA 6

GEDA
®
SUSPENDED WORKING PLATFORM AB 450 / 650 Assembly
BL061 GB Edition 04/2016
39 / 96 Assembly and operating manual
5.1.1 Outrigger DA 1 / DA 6

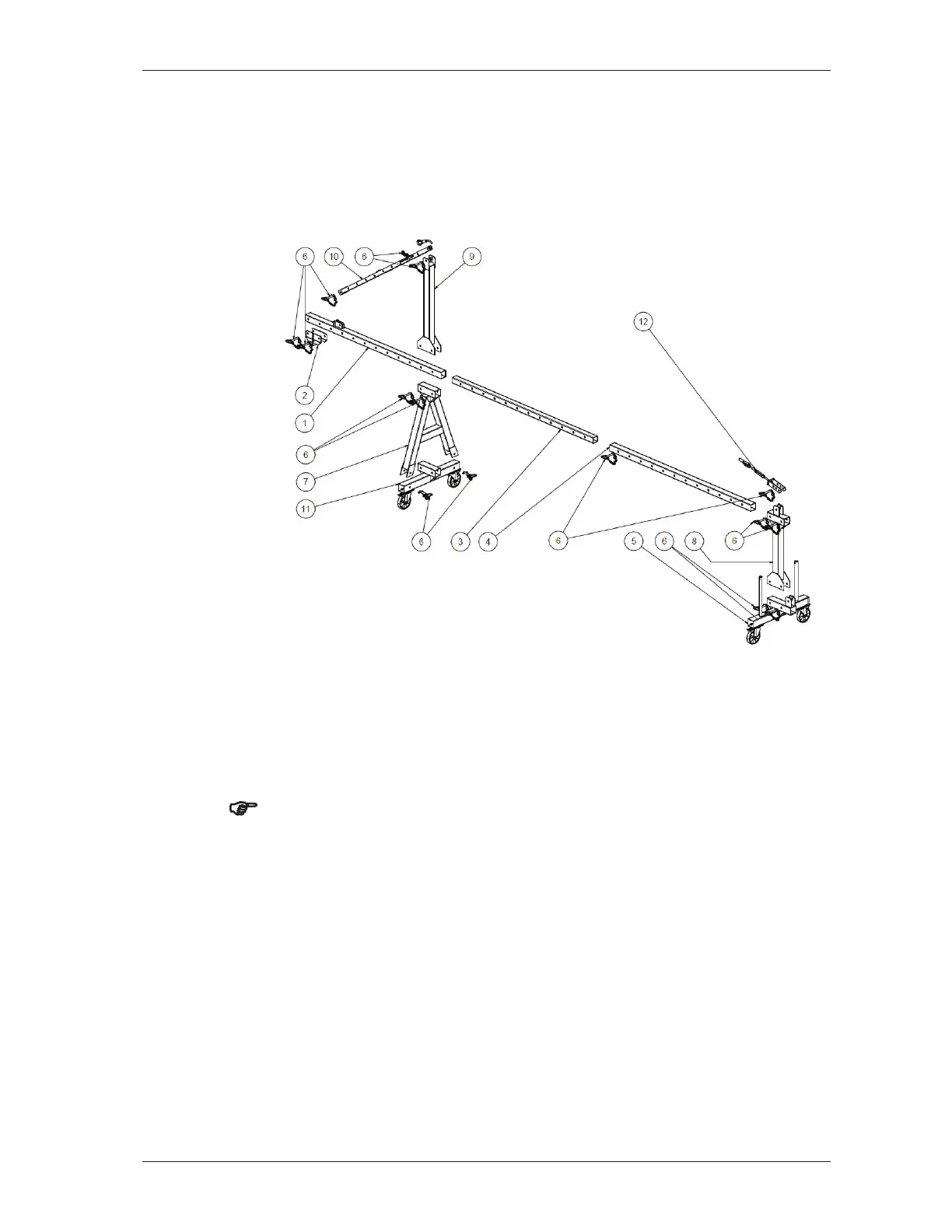

¾ Assemble outrigger as shown above and secure with the socket pins
(6).
1 = AB outrigger front
7 = AB A support
2 = AB suspension bracket
8 = AB support carrier
3 = AB adapter
9 = AB prop with rope deflection
4 = AB rear outrigger arm
10 = AB outrigger bracing
5 = AB counterweight carrier
12 = AB guy rope 450/650 with rope lock
6 = (15 pcs.) AB socket pins D18
)
Parts 7-9, 10-12 do not apply to outrigger DA 1.
