GEDA AB 650 - Construction of the BMU Platform with 3 Winches

Technical data GEDA
®
SUSPENDED WORKING PLATFORM AB 450 / 650
Assembly and Operating Manual
24 / 96 BL061 GB Edition 04/2016

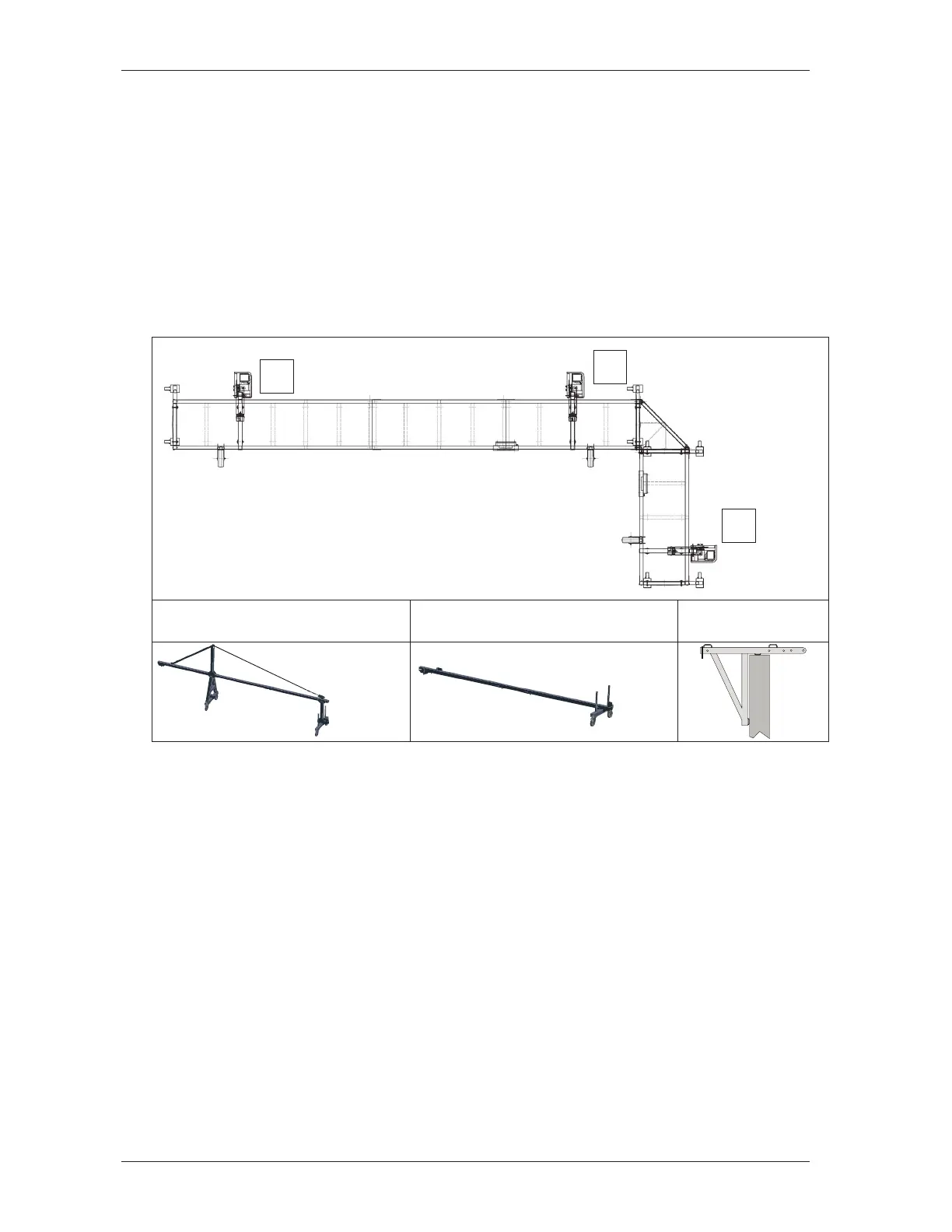

3.3.3 Construction of the BMU platform with 3 winches
BMU platform constructed from platform segments of 1-3 m, using three
identical winches. Fastening the winches (1).
Conditions for construction with 3 winches:
x No more than 2 winches may be attached to a rigid BMU platform,
with the exception of the corner or circular construction where the
platform construction must have sufficient degrees of freedom.
x The operator must be able to view all three winches well from
the control location.
x
Corner construction
3 x DA 6
Outrigger for AB 450 / 650
3 x DA 1
Outrigger for AB 450
3 x parapet bracket
for AB 450 / 650
1
1
1
