Assembly GEDA
®
SUSPENDED WORKING PLATFORM AB 450 / 650
Assembly and Operating Manual
50 / 96 BL061 GB Edition 04/2016

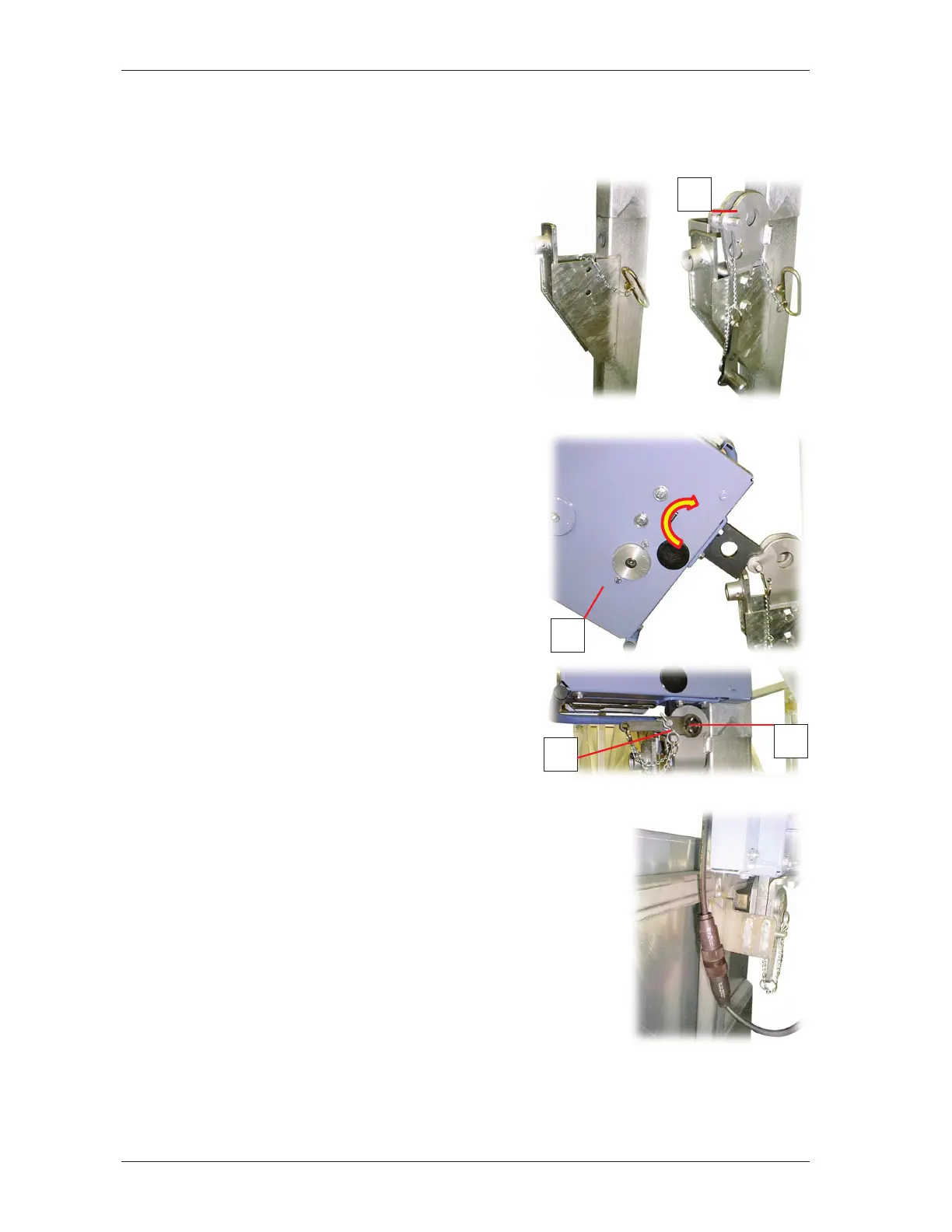

5.4.1 Mounting the rope winches to the C-clamp
¾ Mount the rope winches to the
bracket of the C-clamp using
the adapter (1).
Tightening torque = 80 Nm
¾ Hook the rope winch (2) into the
latch and fold it up vertically.
¾ Then lower the winch.
¾
Rig the winch (2) using socket
pins (3) and secure with a spring
cotter (4).
¾ Plug in connection line to the EMERGENCY
LIMIT limit switch.
1
2
4
3
