SUSPENDED WORKING PLATFORM AB 450 / 650 Assembly
BL061 GB Edition 04/2016
53 / 96 Assembly and operating manual

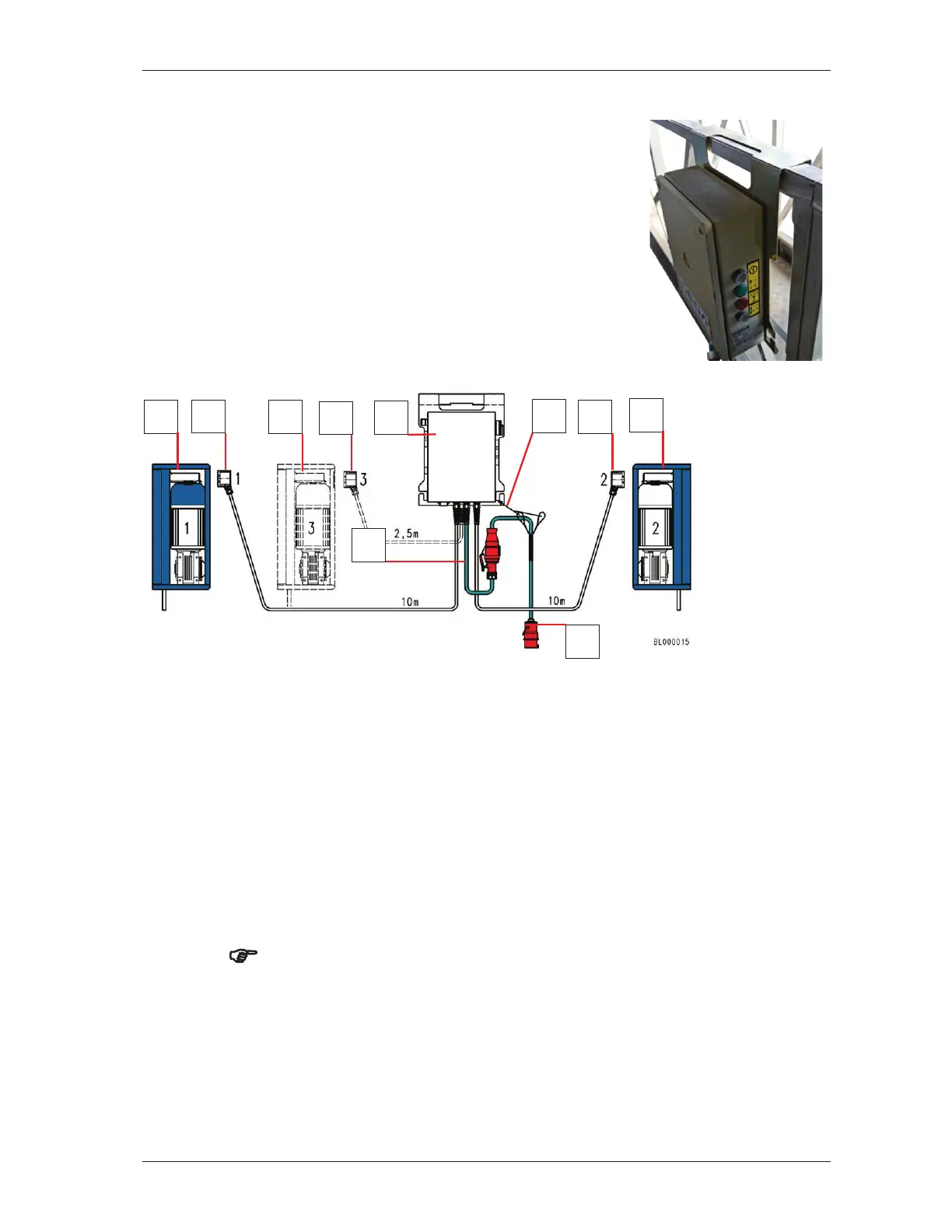

5.6 Electrical connection
¾
Hook the single/central control box (4) on
the side section of the working platform.
1 = 1st Rope winch [left]
4B = connecting plug to 2nd rope winch
2 = 2nd rope winch [right]
4C = connecting plug to 3rd rope winch
3 = 3rd rope winch [centre] (for three winches operation)
4D = supply line of central control box
4 = central control box
5 = extension of power cord
4A = connecting plug to 1st rope winch
5A = pull relief of power cord
¾ Hook the pull relief (4A) of the power cord to the mount of the control
switch box.
¾ Plug the supply line of the central control box (4D) in the power cord
(5).
Prevent water from getting into the plug-connection.
The plug-connection must be suspended vertically. Coupling above the
connector.
)
Only suitable cables may be used for extending the power cord
(suspended operation).
A cable length of 200 metres must not be exceeded, because the
voltage drop would become too high and the winch would no
longer function reliably!
The feed point must be moved further upwards with the specified
connection parameters so that the 200 metres are not exceeded.
4
1
4A
4B
2
5
5A
4D
3
4C
